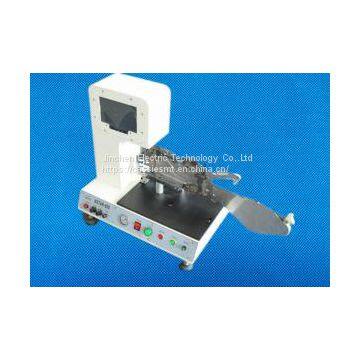

SMT Mechanical feeder calibrator for JUKI placement equipment , FF CF AF type feeders
product name:JUKI SMT FEEDER calibration jigs
Dimensions:L500*W350*H500(MM)
Correction model:pneumatic
Product parameters
Power supply: 220V
The number of feeders:100
Compressed air requirements:5kg/cm2
Product parameters:12-inch LCD monitor with a cross-scale 50 times color CCD camera
Product Information
1.The whole structure is streamlined, operating simply, functional optimization. And use the high-
precision 0 gap rail, ensure location stability, greatly improve work efficiency.
2.Accurate detection. Reclaimer position, height, bar height, can do accurate measurements.
To better grasp the quality status.
3.Using 12 'color LED display, ring LED lighting ,50 times magnification CCD camera, making
the structure more compact and beautiful. Effectively reducing eye fatigue, improve job quality.
4.Easy to operate, and can simulate the smt machine, automatic continuous observation reclaimer
position clearer grasp FEEDER continuous operation quality, and thus more effective control butt rate.
5.Choose a variety of models such as FUJI,YAMAHA,SAMSUNG,SANYO,SONY,
PANASERT,Universal,FUTURITY,PHILIPS,KME,SIEMENS,JUKI,I-PULSE ,Hitachi ,CASIO etc.
Product Features
Functions and features:
1.The precise x-y axis adjustment;
2.Can directly adjust the camera axis;
3.Built-in 220V DC power supply;
4.Black and white cross reference cursor
5.Automatic and step function;
6.Super bright LED display;
7.Precise feeders control of the jigs;
8.Accurate 8 * 2mm/12 * 4mm/16 * 8mm and 24 * 8mm feeders control belt.
Purpose: FEEDER calibrator used for Correction of various model FEEDER
