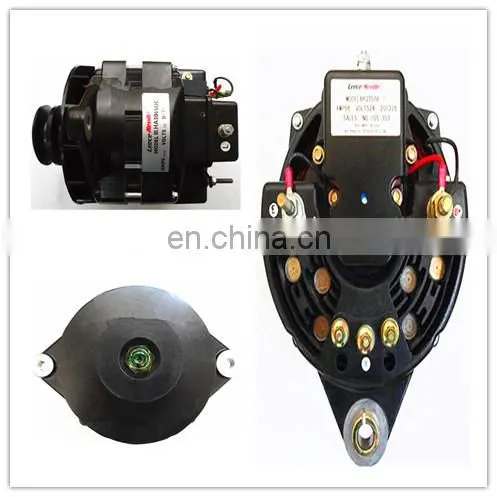

8LHA3045UC(24V(28V)/120A) Prestolite Alternator
generating electro alternator/dc 24v motor generator/denyo alternator for generator/electric generator/generator alternator price list
Original Products, quality assured. Supplier of bus part.
Size:S.T.D
Material:Metal
Application: single motor application, with no battery motor (air conditioning motor)
There is an electric bottle application, the regulator L can only connect the charging indicator light and no other load.
Applicable Model: Zhengzhou Yutong Bus, Xiamen Golden Dragon, Xiamen golden tour, King Long, Beiqi Foton, etc.
Engine Model:Cumminss 6bt / YC6108ZQ / Wuxi 4113
Main configuration: air conditioner or eddy current retarder
System voltage: 24V;
Output voltage: 28 + -0.3 V
Output current (thermal state) : 120A;
Working environment temperature: -40 degrees - + 85 degrees;
Features:
Heavy structure design
Suitable for medium-duty diesel generator and passenger bus
B +, L, 3W, E external wiring setup
Prestolite regulator
The 8LHA3096UC 04-1000 diode assembly can be installed on 3 W end to get the 24V 1A dc output current, which is used to drive the motor protection relay and the air-conditioner protection relay.
What is the rational configuration of the alternator/generator?
1. The total electricity consumption of the whole vehicle is not higher than 85% of the maximum output current of the generator
2. The engine idle speed, by improving the idle speed or increasing the transmission ratio, guarantee the generator output current to meet the need of the vehicle mainly use electrical appliances (generator working around 27 v voltage, speed 2000 RPM, guarantee the cooling demand))
3. The generator speed does not exceed the maximum working speed
4. The installation location of the generator is reliable and reasonable.
Main electrical appliances in bus:
1. Electric eddy current retarder
2. The air conditioning
3. Headlamps, in-box lighting, station display, electric jet engine controller
4. TV, heater, advertising light box
5. Water dispenser, etc. (in-car refrigerator)
6. Battery (bus)
The influence of generator configuration on passenger bus is unreasonable:
1. The battery loses power, which causes the engine to start difficult, and the battery life is greatly shortened
2. The output capacity of air conditioning fan decreased, and users complained
3. The battery can be the load of the generator due to the loss of power, and the protection function of the generator is decreased, which can cause damage to the generator and other vehicles
4. The cause of eddy current retarder is not normal, causing accidents
5. The failure rate of the whole vehicle increases, affecting the normal use of vehicles.
Related:
8LH3045UC(28V/120A) 8LHA3045UC 24V 120A 8SC3238VC 24V 150A 8SC3239VC 24V 150A 8SC3141VC 24V 120A-140A
Packaging: Standard to export, unit in poly bag, then in carton or wooden case.
Shipping: By SEA, AIR, EXPRESS, the suitable method, according to client.
