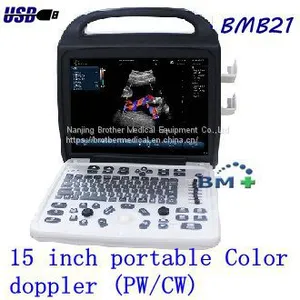

Order Name: 15 inch portable Color Doppler Ultrasound Scanner (PW/CW)
Order No.: BMB21
Quick Details：
Model Name:15 inch portable Color doppler (PW/CW)
Model Number:BMB21
Brand Name:Brothermed
DICOM3.0
HDD:500GB
Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PW
Scanning mode:Convex, Linear, Endocavity
Transducer Connector:2 standard
USB Port:2
Foot Switch:Available
Application:abdomen,cardiac, OB&GYN,urology,small parts (thyroid)
Net weight:8.5 kg
Dimensions:400mm×394mm×172mm
Power supply:100~240VAC, 50Hz/60Hz
General Description：
BrotherMed 15 inch portable Color Doppler Ultrasound Scanner (PW/CW) BMB21
*Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PW
*Scanning mode: Convex, Linear, Endocavity
*Gray scale levels:256
*Display:15 ’’ high resolution LCD monitor
*Transducer Connector:2 standard
*Scanning depth: up to 351mm
*Physical channels 64
*Transducer element 128
*Dynamic imaging technologies: Digital Beam-forming
*Digital Frequency Scan
*Dynamic Receiving focusing
*Dynamic Receiving apodization
*Real-time Dynamic Aperture
Standard configuration：
15" high definition LED monitor
Two transducer connectors
Back lit control panel
8-segment TGC
982-frame cine loop
Integrated 500GB Hard disk
Internal lithium Battery Supporting normal diagnosis up to 1.5 hours
Inverted Harmonic Imaging
Pseudo color imaging mode
Annotation library for quick comment
Graph/text report function
DICOM storage SCU
User defined exam settings
User defined parameters capture (Acquire Set)
Intuitive soft key at the bottom of screen, clicking supported
Beam steering for better needle visualization
Patient information management system
Fetal trending--Fetal growth curve graph
Lithotripsy function supported
Biopsy function supported
Support polyembryony measurement up to six
Intuitive context dependent soft key
USB image transfer and software upgrade
Language: Chinese, English
convex array transducer
