Help CenterHYBRID STEPPER MOTOR-Nema42
US$ 0.5 - 999
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Longs
Place of Origin:
China
Model Number:
Nema42
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
30 days
Related Products
-
UTP CAT5e Network CableUS$ 0.5 - 999MOQ: 5000 Pieces -
LED Spot Light Gu5.3 3*1W 5*1W COB 110-240VUS$ 0.5 - 999MOQ: 5000 Pieces
-
0.2*914mm Color Metal Prepainted Steel Coils AZ70g AZ40gUS$ 650 - 1000MOQ: 50 Tons
-
Aluminium-zinc Alloy Coated Steel Coil-galvalumeUS$ 650 - 1000MOQ: 50 Tons
-
Residual-current Operated Circuit Breaker-FTB3LEUS$ 0.5 - 999MOQ: 100 Pieces
Brand Name
Longs
Place of Origin
China
Model Number
Nema42
Type
Hybrid
Phase
3
Certification
CCC, CE, ROHS
Current / Phase
three phase
Holding Torque
11.2/21/28
Step Angle(degrees)
1.8
Step Accuracy……………………… 5%
Temperature Rise……………………80℃ Max
Ambient Temperature Range…………-20℃~+50℃
Insulation Resistance……………100MΩMin.500VC DC
Dielectric Strength……………1800V AC 1S 5mA
Details
Electrical Specification：
Model |
step angel |
Motor Length |
Voltage |
Current |
Resistance |
Inductance |
Hording torque |
Detent Torque |
Rotor Inertia |
Lead Wires |
Weight |
42HS9460 |
1.8 |
100 |
4.95 |
6.0 |
0.9 |
12 |
11.2 |
3 |
5500 |
4 |
5 |
42HS5460 |
1.8 |
150 |
5.2 |
6.0 |
0.8 |
15 |
21 |
5.9 |
10900 |
4 |
8.4 |
42HS6480 |
1.8 |
201 |
8 |
8.0 |
1 |
16 |
28 |
9.5 |
16200 |
4 |
11.7 |
*We can manufacture our products according to our customer's requirement.

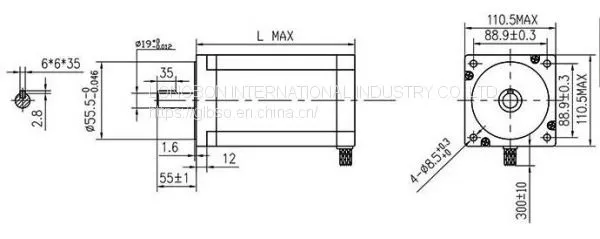

Dimensions: unit=mm
