Expanded Polystyrene Foam Wall Panel Making Machines

1.Specifications

Expanded polystyrene foam wall panel making machines

  foam wall panel making machines

1. low input high output
2. fully automatic
3.easy to operate, maintenance

4.ISO9001/TUV/CE Approved

2. Production line introduction:

Rigel light weight composite sandwich panel production line is a highly automatic production line that has been researched and developed by our company independently with self-owned intellectual property rights.
This production line is fully sealed, dust free; uses the central control system which can be easily operated by one person; uses automatic proportion system with liquid crystal display to assure accurate measurement and stable product quality. Gating system uses independent power and electric control which is convenient and safe to operate. The whole production line is highly automatic and mechanized, manpower saving, and ensures high output.

Composition: Steel

Produced Panel's Size(L*W*T): (1500~3000mm length)×610mm width×(50~200mm thickness)

Description:This machinery can produce Solid panel(SPB) and Sandwich Panel(FPB), with advantage of flexible investment, one set of machinery can produce various panels, It is suitable for both small and large investment.

Advantages:

*Full automatic production system, easy to operate, less workers
*Service life: over 20 years
*Warranty: 1 year
*Unique automatic raw materials measuring, delivery and mixing system
*High production output & low input
*Environmental protection: closed mixing system, low waste and recyclable
*Long-term professional and all-round services
*Offer overseas installation, test run and training
*Provide professional technical support.

Specialties of our production line:

1. We are the industry’s only company in China that has got though the Technical supervision department with Product standard for the record and relevant tests.
2. We are the industry’s only company in China that manufactures the machine which can produce panels that can pass all the performance indicator tests through the National Research Center of testing techniques for Building materials.
3. The industry’s only production line that uses automatic hoisting system, which makes this production line have more accurate metering, easier to operate, more reasonable proportion, ensuring each batch of products have consistent quality.
4.. The only production line in China that uses separate stirring system, which greatly enhanced productivity, expanded the daily output and annual output by several times.
5. Independently researched and developed new composite additives, which has enhanced strength and adhesion thus decrease the dosage of cement and reduce production cost.

Production line

The equipment configuration:

The production line is controlled by microcomputer, it has numerical controlled measurement, high automatic degree and the central control, labour saving, the entire production line is sealed, makes no dust, low noise.
1, material loading system: Cement: screw conveyor; Sand: bucket elevator; EPS: automatic pneumatic convey; Water: pumping; Compound admixtures: pneumatic conveying.

2, measuring system: all the materials are continuously measured during the production, quality guaranteed. Cement, sand, hopper automatic metering; Water: timing measurement; EPS: comprehensive measurement of volume and time; Additives: fluid measurement instrument.
3, mixing system: fully sealed, positive and negative going motion, large capacity (1.5m3), double pot independently mixing.
4, EPS expanded system; expand, dry and deliver in fully sealed containers, fluid bed and pipes, fully automatic.
5, casting molding system: various sizes, many sets, large capacity, fully automatic optical molding system.
6, automatic ferry system: large load capacity, on its own power, stable walking, fully automatic optical control.
7, the central control system: liquid crystal display, centralized control all the remote control, proximity control, pneumatic control, electric control systems in this production line.

3. Production line main pictures

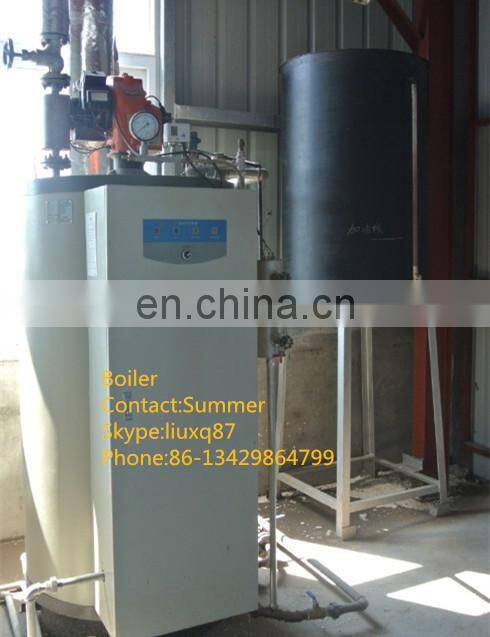

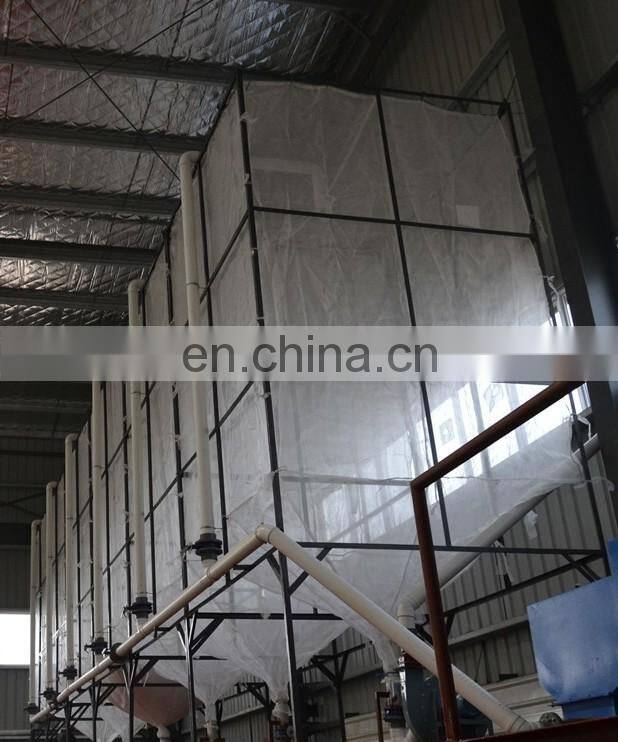

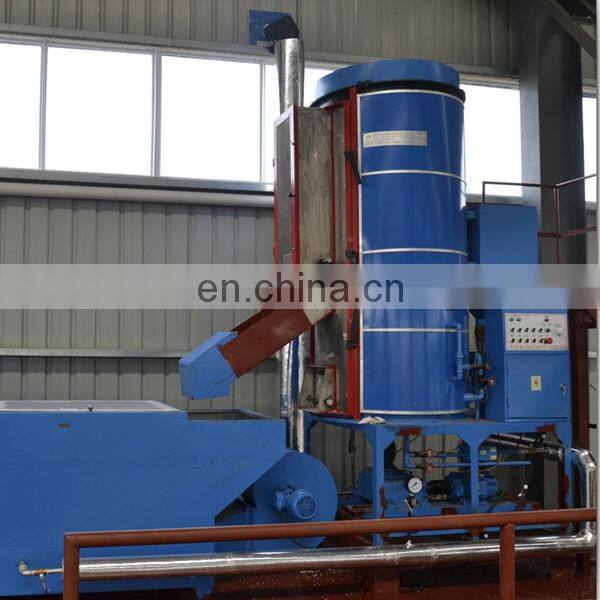

1.   EPS foaming system: oil tank, boiler, EPS Pre-expander, fluidized bed, EPS silo, etc.

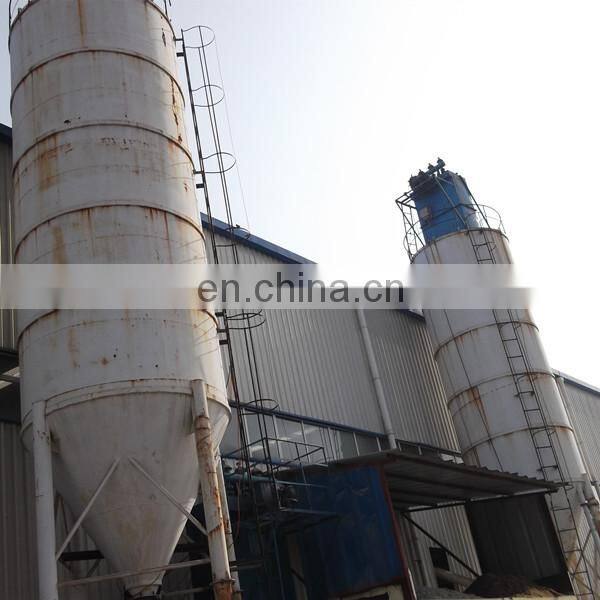

2. Raw materials storage/conveying system: cement tank, screw conveyor,bucket elevator, water pipe, etc

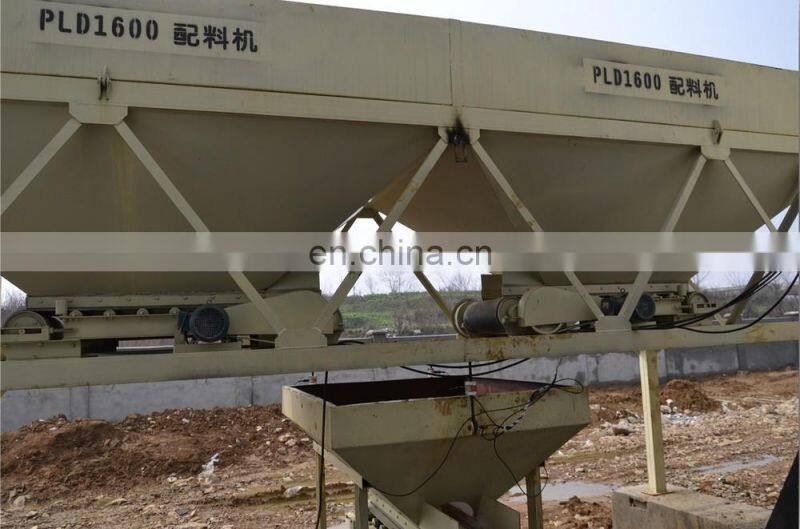

3.  Our unique automatic batching system: Cement metering system, water metering system, EPS measuring conveying system,Additive storage and metering system, etc.

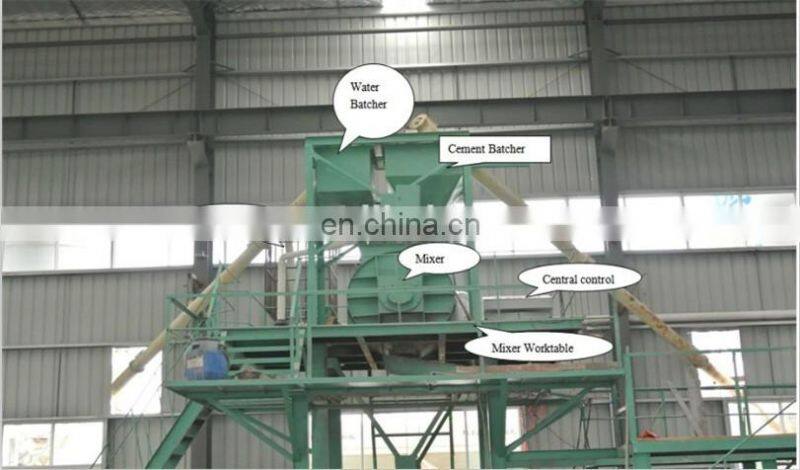

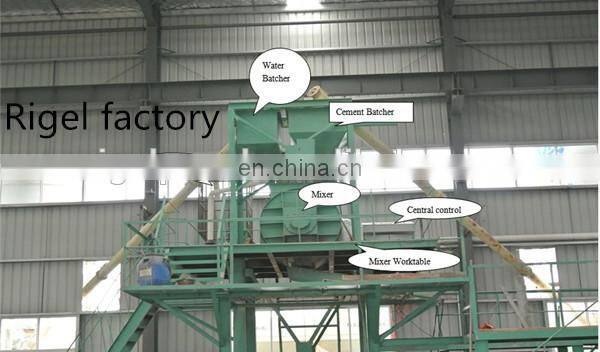

4. Automatic Mixing system: central control, pneumatic control, double tank mixer, etc.

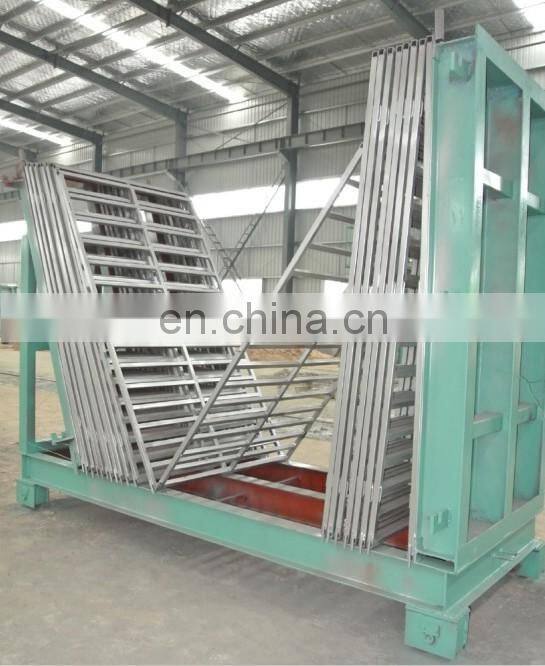

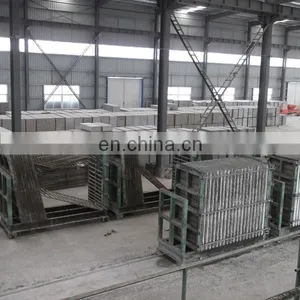

5.Automatic traveling mold system: vertical traction-type (automatic) sandwich panel mold car, automatic ferry vehicles, steel rail

2270-3000mm(Length)*610mm(width)*60/75/90/100/120/150/180mm thickness.

4. Production line work process:

5.Eps cement sandwich panel information:

EPS & cement sandwich panel is a kind of light weight energy saving wall material taking reinforced calcium silicate board as face panel, with cement,eps ,fly ash as core materials and forming by one time compound.

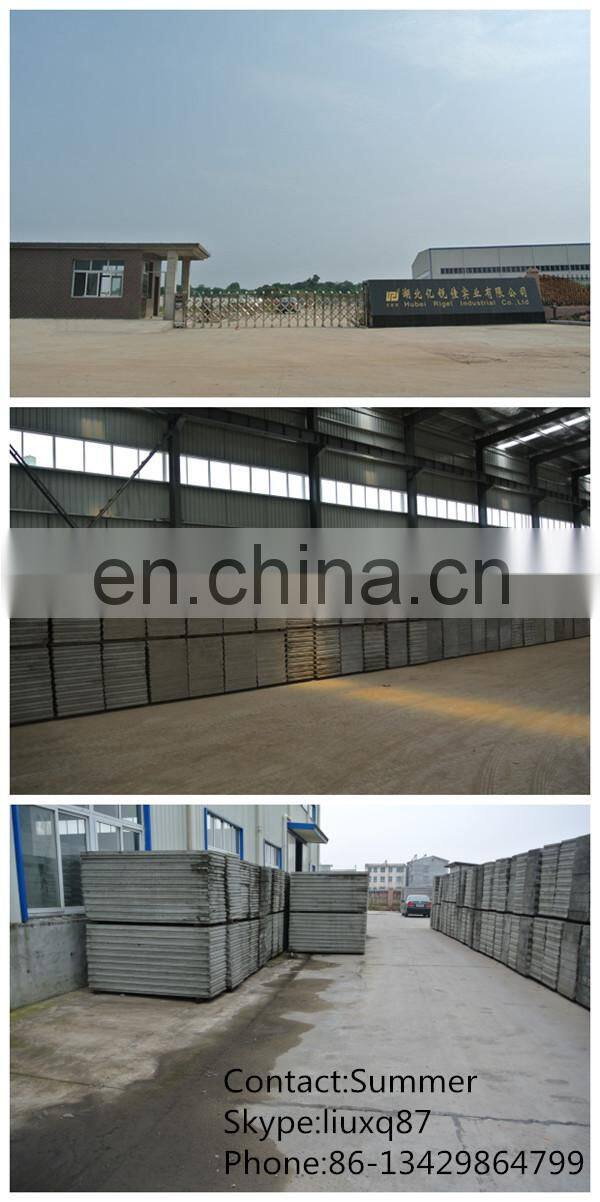

6.Rigel factory information:

Hubei Rigel Industrial Co.,Ltd is one of the biggest manufacturers in the East Lake New-Tech Development Zone of Wuhan, integrating the development, production, sale and installation of light weight energy saving panels and relevant machines.The production base is located in the Ezhou Economical Development Zone. The company invested in more than RMB15,000,000,the factory area is 30,000 square meters, and annual output can reach up to 600,000 square meters of panels and 100 sets of machines. Now there are more than 200 professional personnel for Research, Management, Sale and Construction and can provide excellent technical support and after-sales service.
