IP68 Waterproof Wire Connector Outdoor Cable Joint Electrical Cable Connector for LED Underwater Flood Light
Specification
Number of contacts |
2 |
3 |
4 |
5(2+3) |
Rated current/voltage |
10A 300V |
10A+5A 125V |
10A+5A 60V |
|
Contact diameter x number |
Φ1.5 |
2×Φ1.0 2×Φ1.5 |
Φ1.0 Φ1.5 |
|
Withstanding voltage |
1500V |
500V |
||
Protection level |
IP68 |
|||
Cable specification |
0.5mm²~1.5mm ²(20AWG~16AWG) |
|||
Diameter range |
MAXΦ9.0MM |
|||
Operating temperature |
-40℃~105℃ |
|||
Connecting mode |
Screw type |
|||
Material
Housing insulating parts |
High performance engineering plastic |
Copper needles |
Copper alloy |
Flammability |
UL94-V0 |

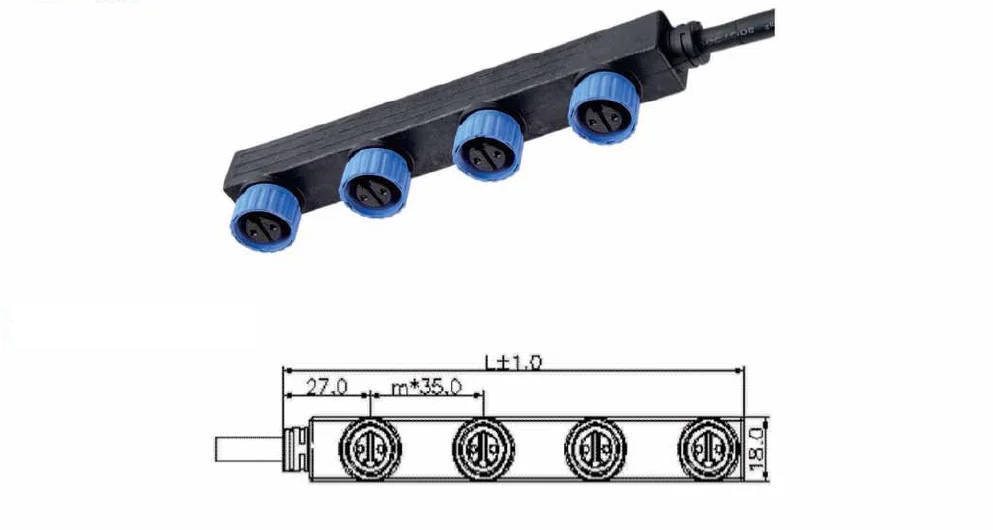

Size for M15 Screw type plastic waterproof cable connector

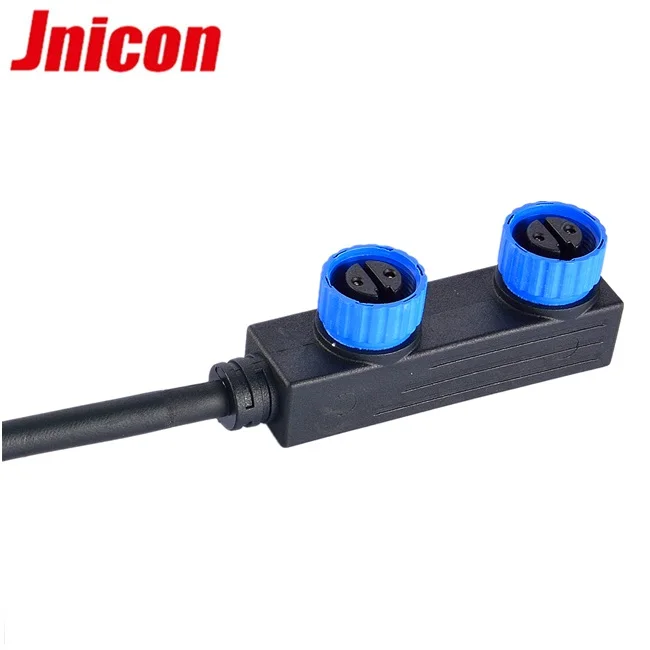

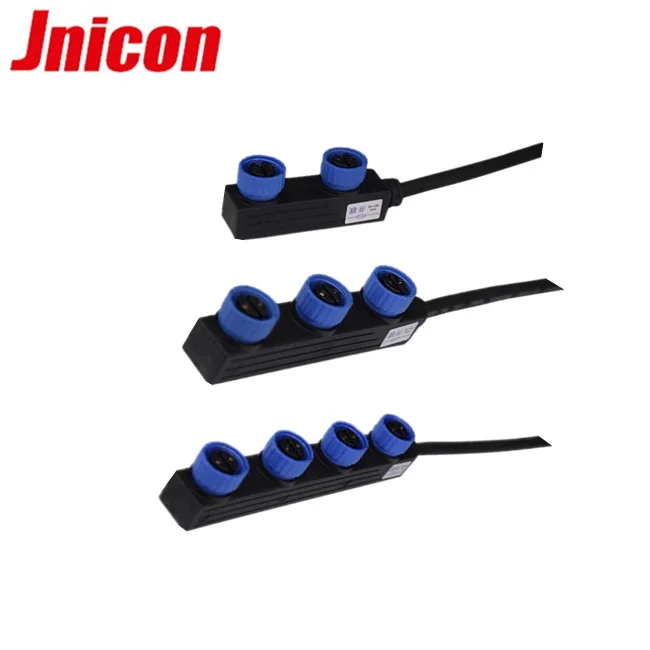

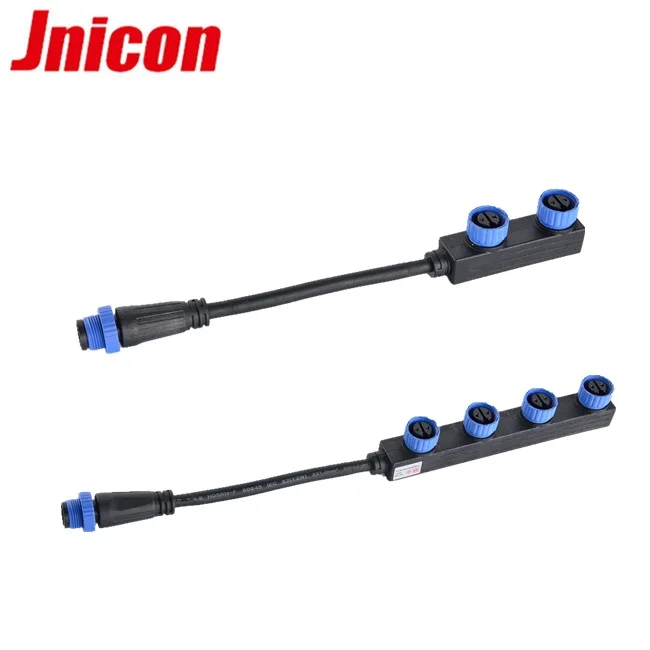

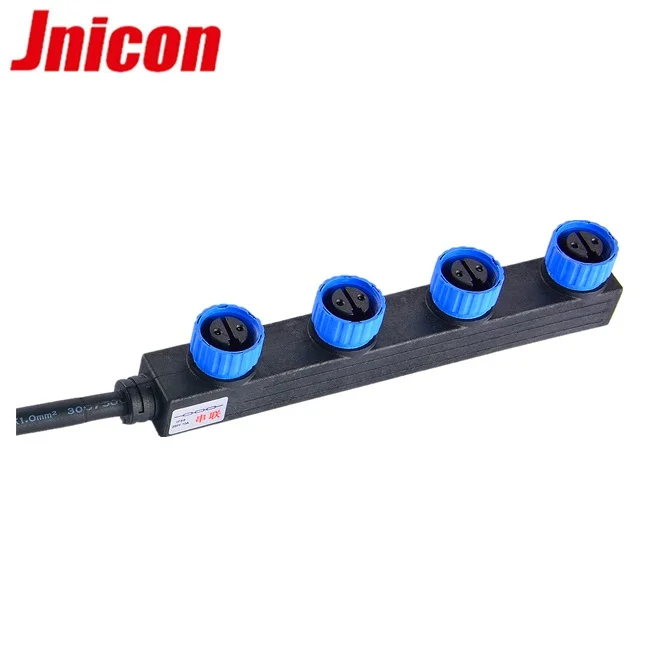

Picture for M15 Screw type waterproof connectors
Q: Are you a factory or trading company?
A: We are a factory,more than 3,000square. Located in B-9, Fubilun industrial park, Chaoyang rd,Yanchuan community, Songgang, Shenzhen, China
Q:How to buy your products?
A:You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style ( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
Q:How can i get samples?
A: It's my honor to offer you samples, but we can only give you three for free, and the freight should be paied by yourself.
Q:How many materials you can provide?
A:Connectors and cable were made by different material. Usually connector was made by PVC/Nylon and cable was made by PVC/Rubber/PU/Silicone . Meanwhile, OEM/ODM both accepted .
Q:How does your factory do regarding quality control?
A:We will pay much attention on every piece product and will do internaltional certification and test according to customer requirements, such as UL, CE, CCC. We are planing to increase TUV ,VDE certification this year.
Welcome to contact us for more details !
