Moisture-proof and Dust-proof 2 pin/3 pin one to 3 light waterproof T connector with lock and screw plug connectorrs
Specification for M16 T type junction box connector
Number of contacts |
2 |
3 |
Welcome OEM |
Rated current/voltage |
10A 300V |
||
Contact diameter x number |
2xΦ1.5 |
3xΦ1.5 |
|
Withstanding voltage |
1500V |
||
Protection level |
IP68 |
||
Cable specification |
0.5mm2~1.5mm2(20AWG~16AWG) |
||
Diameter range |
Max Φ9.0mm |
||
Operating temperature |
-45℃~105℃ |
||
Connecting mode |
Self-lock type |
||
Material
Housing insulating parts |
High performance engineering plastic |
Copper needles |
Copper alloy |
Flammability |
UL94-V0 |
Product feature:
Widely used M16 T type Connector:
Great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof joint use.
IP 67 Waterproof 3 way T type junction box:
Moisture-proof and Dust-proof, never leave your precious wires exposed and have a good protection on them ,this outdoor electrical box is safe for home, garden or outdoor lighting.
Easy installation M16 cable connector wiring:
Easy connection, Convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
Good quality exterior 3 way cable plug:
with environmental protection material:high performance engineer plastic is good for environmental protection, please feel free to use the outdoor junction box.
Long service life exterior T type connector :
UV resistance makes it anti-aging,3 or 5 years life time when used in normal environment(but don't immerse waterproof electrical connectors in the the water for long time )

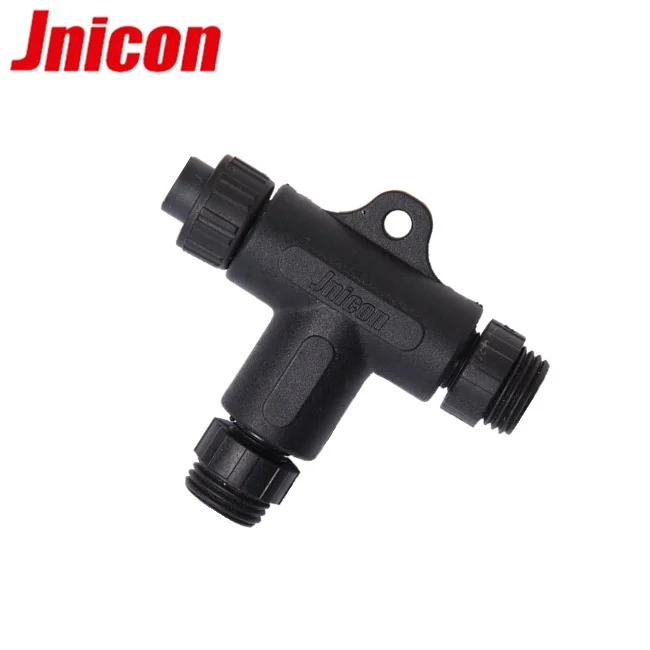

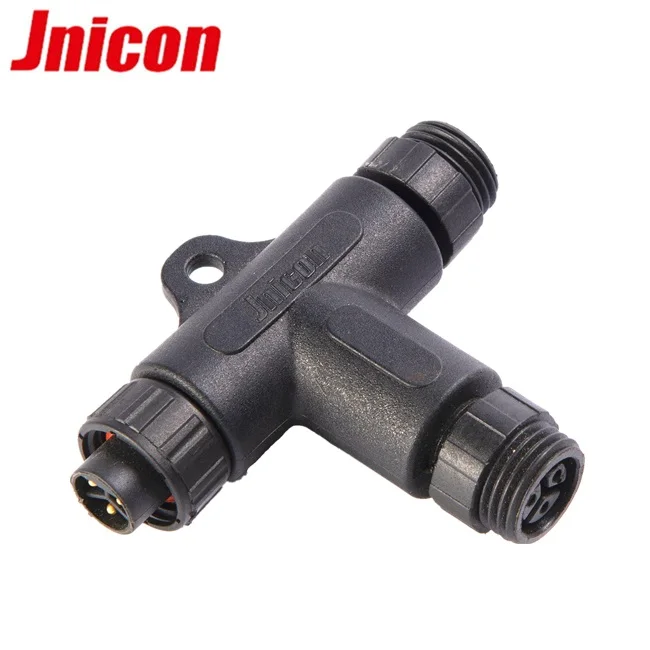

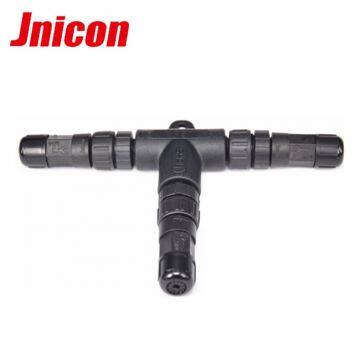

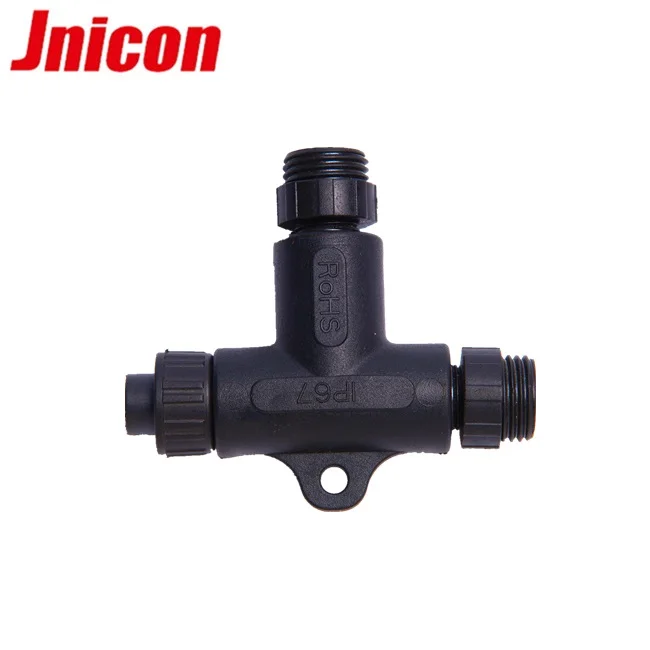

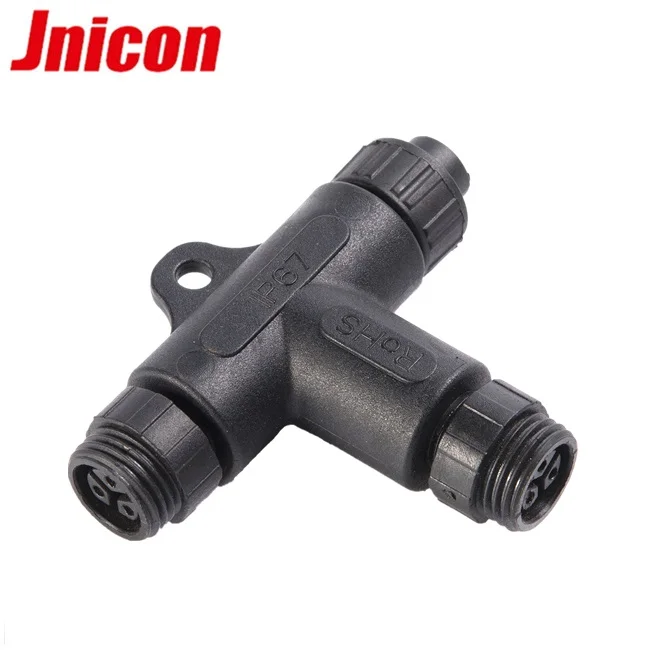

Picture of M16 3 way T type outdoor cable connector
Q: Are you a factory or trading company?
A: We are a factory,more than 3,000square. Located in B-9, Fubilun industrial park, Chaoyang rd,Yanchuan community, Songgang, Shenzhen, China
Q:How to buy your products?
A:You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style ( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
Q:How can i get samples?
A: It's my honor to offer you samples, but we can only give you three for free, and the freight should be paied by yourself.
Q:How many materials you can provide?
A:Connectors and cable were made by different material. Usually connector was made by PVC/Nylon and cable was made by PVC/Rubber/PU/Silicone . Meanwhile, OEM/ODM both accepted .
Q:How does your factory do regarding quality control?
A:We will pay much attention on every piece product and will do internaltional certification and test according to customer requirements, such as UL, CE, CCC. We are planing to increase TUV ,VDE certification this year.
Welcome to contact us for more details !
