Home > Products > Air Cooled Water Chiller > Shandong air cooled heat pump module unit pool heat pump,heat pump module unit

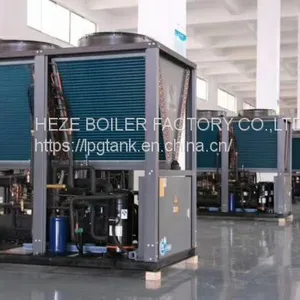

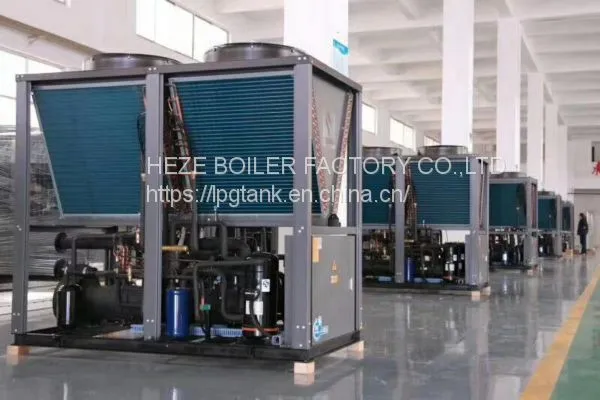

Shandong air cooled heat pump module unit pool heat pump,heat pump module unit
- 300 Piece / Pieces per Month
- Qingdao,Tianjin, Shanghai Port
- T/T L/C
- 25 days
-
Crossflow plate fin heat exchangers air cooled heat exchanger
-
High efficiency heat and energy recovery exhaust ventilation system
-
Portable air fresher cooler ventilators
-
Night free cooling air fresher cooler ventilators
-
Summber by-pass energy saving air fresher cooler ventilators
-
Plate heat exchanger recuperator air fresher cooler ventilators
Product Details
| Brand Name: | CTE | Place of Origin: | China | Model Number: | CTEFM30 |
| Certification: | Other, ISO | Type: | Evaporative Air Cooler | After-sales Service Provided: | Engineers available to service machinery overseas |
| Condition: | New | Mounting: | Floor Standing | Operating Voltage: | 380/400 VAC |
Product Description
Shandong air cooled heat pump module unit pool heat pump,heat pump module unit
Unit model | CTEFMD/CTEFMRD | ||||
CTEFMD | 30 | 38 | |||
cooling capacity | kW | 30 | 38 | ||
Heating capacity | KW | 32 | 40 | ||
Supply power | 3- phase 380V 50Hz | ||||
total power input | kW | 8.35 | 10.75 | ||
Compressor | type | closed scroll compressor | |||
Input power | kW | 2x3.9 | 2x5.1 | ||
capacity | L | 2x1.4 | 2x1.4 | ||
Refrigerant | working fluid | R22 | |||
capacity | kg | 2x4.8 | 2x5 | ||
control method | capillary
| ||||
Condensing fan | type | Axial flow | |||
quantity | 1 | 1 | |||
power | kW | 0.55 | 0.55 | ||
air volume | m3/h | 14600 | 14600 | ||
Cool & hot water
| flow | m3/h | 5.2 | 6.5 | |
water side resistance | kPa | 41~46 | |||
nozzle spec | DN | 40 | |||
Outline size | length | mm | 1100 | 1100 | |
width | mm | 1100 | 1100 | ||
height | mm | 1705 | 1795 | ||
unit weight | Kg | 300 | 380 | ||
noise | d B（A） | 72 | 72 | ||
