adhesive plaster machine
Introduction of adhesive plaster machine
SX55 Dry Ready-mix Plaster Machine is a new machine widely applied in plastering and almost all the construction projects for materials such as traditional mortar mixed on site, normal mortar, insulation mortar etc. This machine could save much time, manpower and improve efficiency. It has advantages of easy operation, high reliability even spraying mortar and not easy to fall down. L1 and L2 pump cores are small and light enough to be moved easily for working convenience on site. Besides, the simple structure makes cleaning jobs fast and easy and does not require any special working condition. So it is your best choice for mixing, conveying and spraying all kinds of mortar in construction projects.
Application
All pumpable dry ready-mixed mortars or materials, such as Cement mortars, Lime plasters, Gy-psum plasters, Masonry mortars, Insulating plasters , Self-leveling floor screeds, etc.
The machine is a screw-type high-pressure mortar spraying machine, advanced technology. Operation and maintenance is simple, without special training can be skilled operators. Mortar spraying machine is mainly used for building exterior walls, cement mortar spraying and spraying mortar external wall insulation materials, refractory coating.
Parameter of adhesive plaster machine
| Model | SX55 |
| Pumping motor | 5.5KW +2.2kw-380V |
| Pump core | L1 |
| Allowed max. Aggregate diameter | 6mm |
| Material theoretical output | 20 - 40 l/min |
| Conveying pressure | 25 - 40 Bar |
| Feeding height | 125 cm |
| Mixer capacity | 120L |
| Dimension | 230X80X130 cm |
| Weight | 380kg |
Features of adhesive plaster machine
1. Adjust the size of the flow, tune out the best coating results.
2. In addition to the electrical control box can switch, but also equipped with remote control switch spraying.
3. Gun connection with the feeding tube can be rotated for easy operation.
4. High efficiency, long time used.
5. Easy structure, easy to handling on-site,and accessories is cheap ,easy to maintenance.
Working Principle of adhesive plaster machine
The dry materials is supplied in sacks and filled into the large hopper.the low height of the N5 makes filling considerably easier.the materials is then transported by the agitator out of the hopper into the mixing pipe of the machine.the particular geometry of the agitator means the hopper can be emptied almost 100%.in the mixing area.the amount of water appropriate to the materials is supplied. depending on the mortar used.the amount of water can be separately regulated.the integrated water pump ensures the water pressure is always adequate.the mixing area is extremely large. this means the material is perfectly mixed and reaches the rotor/stator pump of the machine in an ideal condition. there it is then pumped at pressure through the mortar hose.the nozzle is connected in the end of mortar hose with compressed air.and then the mixed mortar is sprayed out evenly.the integrated mini compressor ensure the air pressure and consumption always adequate. as well as remote-control by air valve.attention for detail instruction .please follow the operation manual.

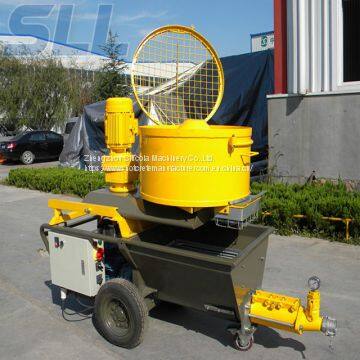

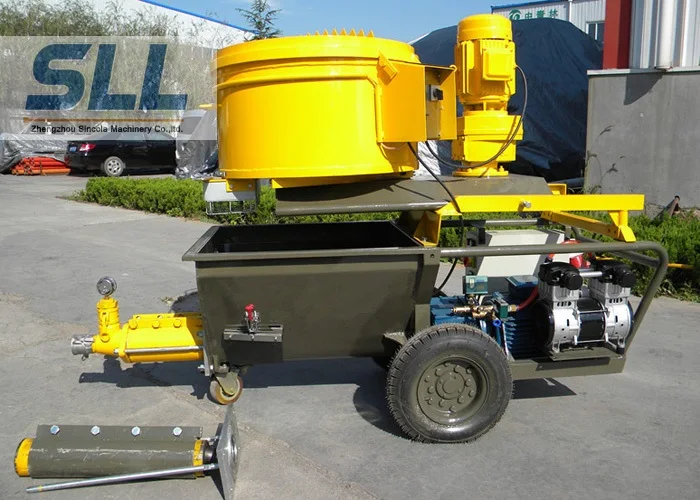

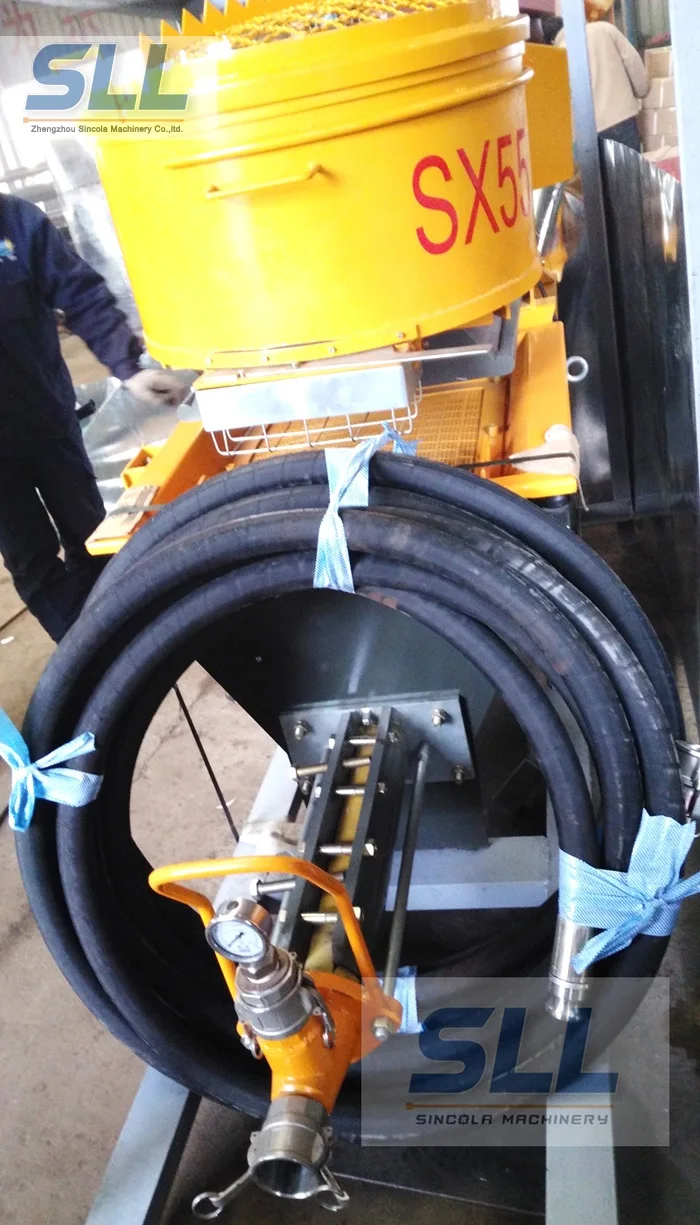

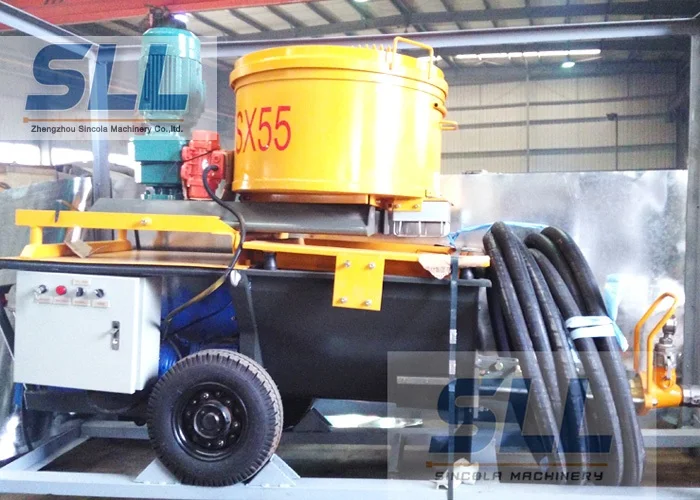

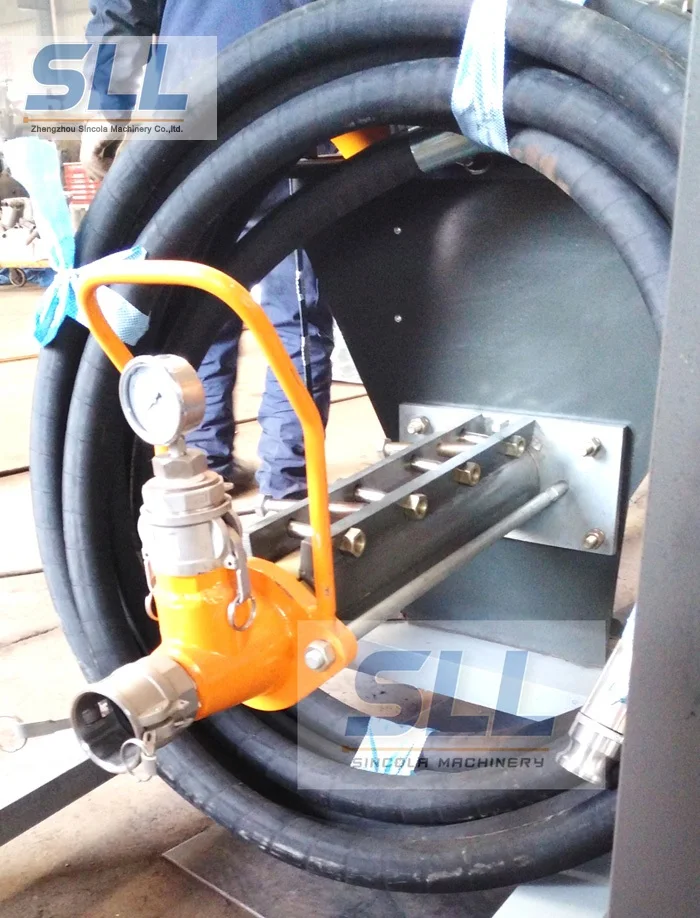

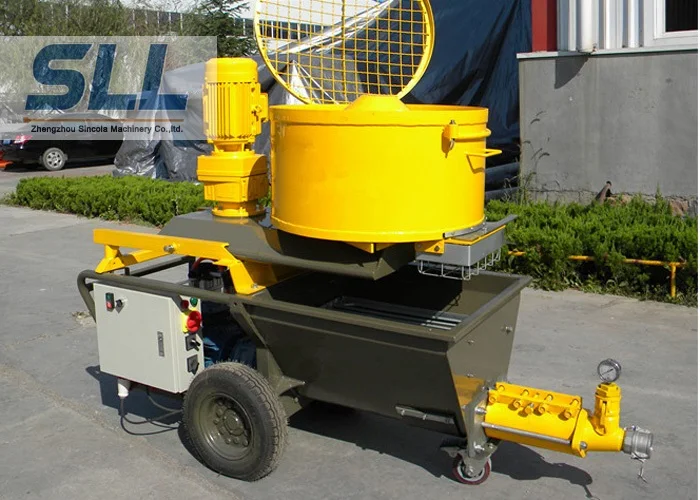

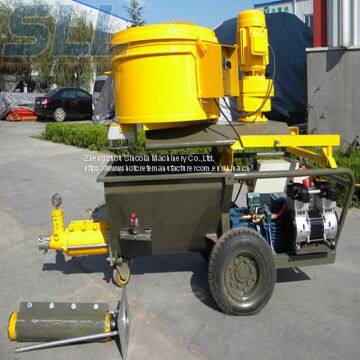

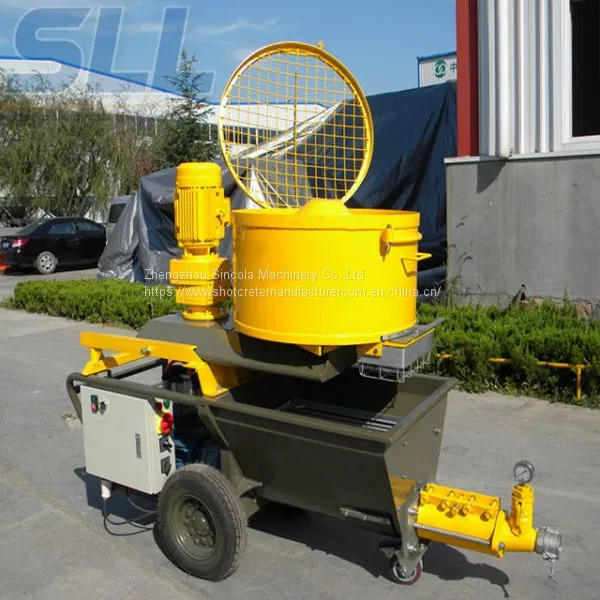

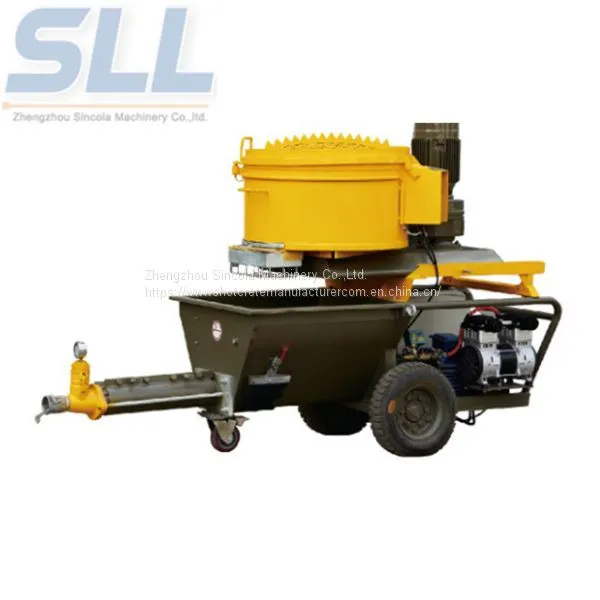

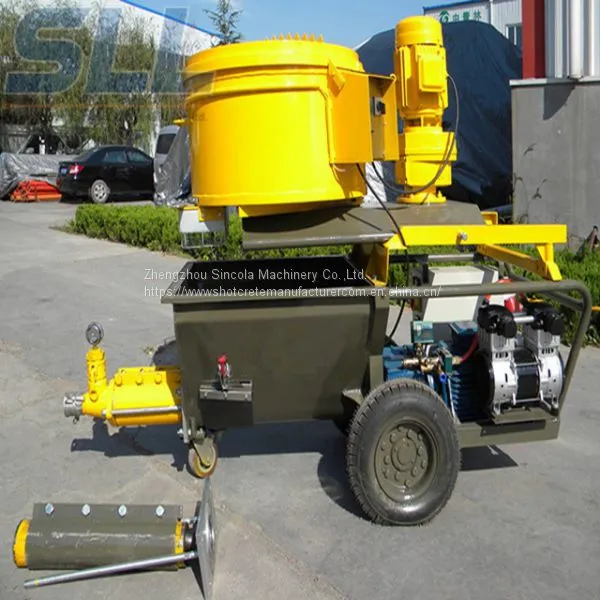

Pictures of adhesive plaster machine
Packaging Detail: The international packing standard of wooden case packing or as customers' needs.
Delivery Detail: 15 working days after the confirmation of the order.
We keep the service idea of "creat more value to customers" , treating our customers with all our hearts, and meantime lawfully running it. Our customers distribute in over 120 countries in Asia, Europe, Middle east,Oceania and America. We apply our professional knowledge and full global service capability to ensure the best results for our customer's business
Pre-sale services Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;
Select equipment model;
Design and manufacture products according to clients' special requirement;
Train technical personnel for clients
Assist clients to prepare for the first construction scheme;
Install and debug the equipment;
Train the first-line operators on site;
Examine the equipment regularly;
Take initiative to eliminate the troubles rapidly at site;
Distribute the guarantee fittings door-to-door;
provide perfect service;
Provide technical exchanging;
Provide maintenance for big items.
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
Company profile:
Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise professionally engaged in the R&D and manufacturing of shotcrete machine plaster machine and mortar pump, ceiling spray plaster rendering machine ,concrete pump etc.
Needs and development of a comprehensive analysis of international users, our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.
Domestically, we have offices in major cities with the rich-experience designers, which is convenient for analyzing and designing product line for customers and provides prompt, exquisite, considerate after-sales service. At present, our equipments have been exported to many countries and regions such as Southeast Asia, Mideast, Africa, Europe etc and highly appreciated by our customers. "Sincola" has become one of the most important manufacture and export bases of dry mortar machine in China.
