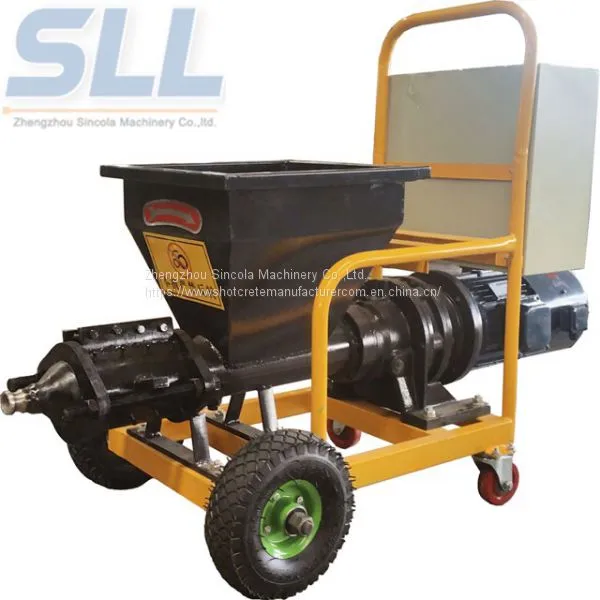

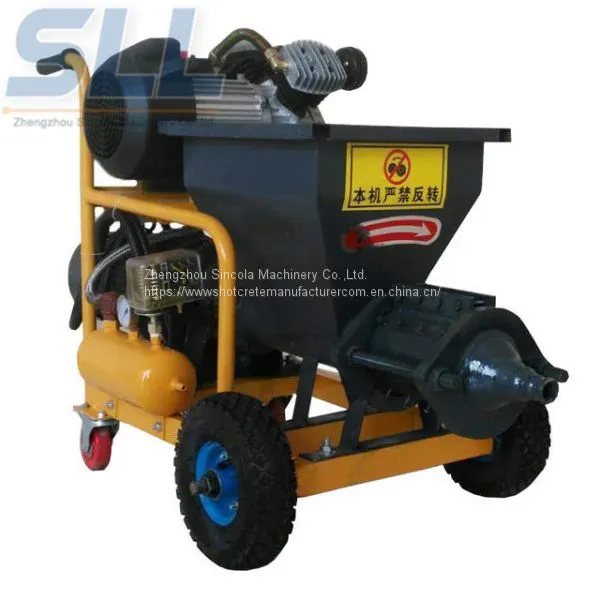

Help CenterCement Mortar Plaster Bitumen Spray Machine
Related Products
-
Compact Structure Best Price Render Spray Machine With CE Certificate Adhesive Plaster MachineUS$ 3990 - 7980MOQ: 1 Set -
External Rendering Pump Spray Machine Full Automatic Small Engineering Spray Real Stone Paint Accessories Spray Painting MachineUS$ 4410 - 5000MOQ: 1 Set
-
Wall Putty Coating Painting High Pressure Airless Spray Machine Sprayer Gun CeUS$ 563 - 1001MOQ: 1 Set
-
Artificial Intelligence 304 Stainless Steel Rendering Machine for Interior WallUS$ 8300 - 8500MOQ: 1 Set
-
Auto Render Machine/Adjustable Height Good Automatic Rendering Machine ItalyUS$ 1990 - 3990MOQ: 1 Set
Introduction of bitumen spray machine
This machine is a kind of screw type with high pressure mortar spraying machine, advanced technology, operation and simple maintenance, no special training, can be proficient in operation. This machine is mainly used for building internal and external wall, cement mortar spraying and the outer wall insulation mortar spraying, refractory coating. Artificial rivers and launch the white wall machine, main drawback is that the density of cement mortar and the wall and mortar is low, we introduced the spraying equipment of large flow, high pressure, customer service for the above defects, slurry density is much higher than the standards prescribed by the state, avoids because of quality, time limit for a project, wages and other issues caused by the trouble. Multi-usage, can spray mortar, waterproof coating, refractory material, is not subject to regional and environmental conditions and the influence of the coating surface shape.
Parameter of bitumen spray machine
| Model | SLW120 |
| Output | 110-120m2/h(mortar) |
| 200-300m2/h(putty/bitumen emulsions) | |
| 3m3/h(grouting) | |
| Power | 4Kw |
| Pump distance | 20m |
| Pump height | 10m |
| Aggregate size | 4mm |
| Air compressor | 2.2Kw(0.26m³/h) |
| Dimension | 1420*600*850mm |
| Weight | 300kg |
Features of bitumen spray machine
1.Construction grouting: high pressure grouting for reservoir, hydropower station, dam, port, whart; reinforcement grouting for soft foundation; backfill grouting or rock bolting for tunnel, subway, mining well ect.
2.Slurry circulation or mortar backfill in deep mine construction of ground source heat pump.
3.Mortar delivery for weight bridge, masonry and plastering.
4.Mortar delivery and plastering of commercial mortar or other mortar with perfect performance.
Advantage of bitumen spray machine
1. Adaptive spraying material: Putty powder, paint, latex paint, real stone paint, cement mortar, dry powder mortar, insulation mortar, waterproof material, fireproof materials, insulation materials, sound absorbing materials and other water-soluble materials.
2. Adjust the flow, bring up the best painting effect.
3. Besides you can switch on the electric cabinet, also equipped with remote control switch spraying.
4. Spray gun and feeding tube connections can rotate and easy operation.
5. Construction of high efficiency and good quality.
6. Small size, convenient for on-site handling, and low cost of accessories, maintenance is simple.
7. Easy to use, high speed, province materials, artificial and cheaper, one machine with three people, only 150 square/hour (thickness 2 cm).
8. The material ratio (cement) 0.7:3 mortar
|
mini cement spraying |

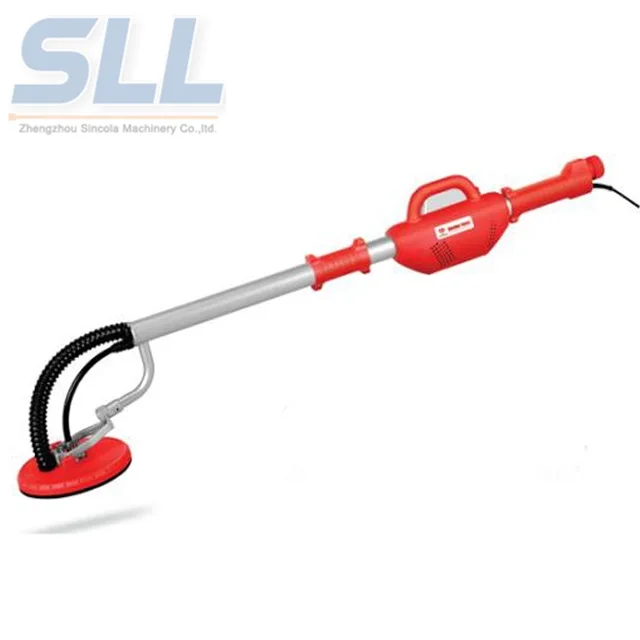

belt sander |
mini cement mixer |
wall rendering machine |
|
dry ready mix plaster |
mortar mixer |
mortar putty spraying |
wet mix plastering |

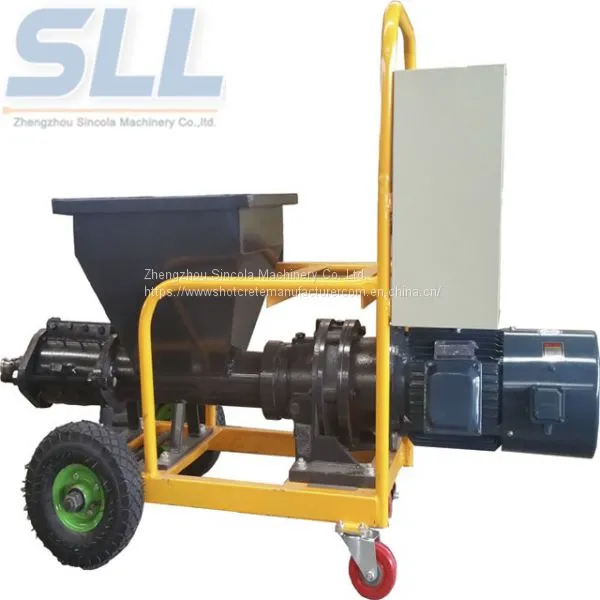

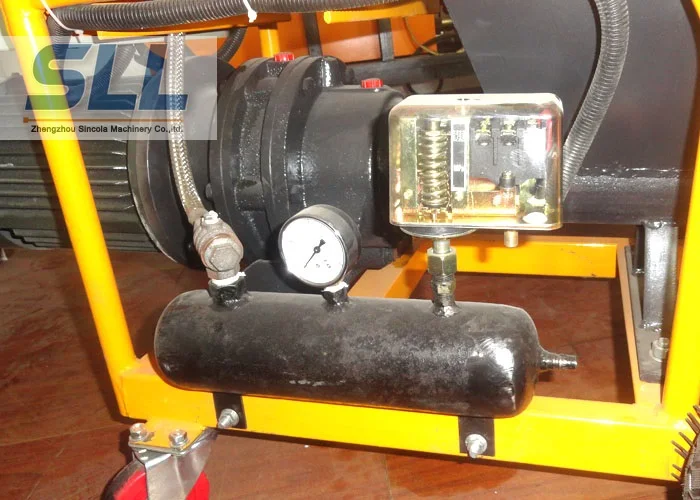

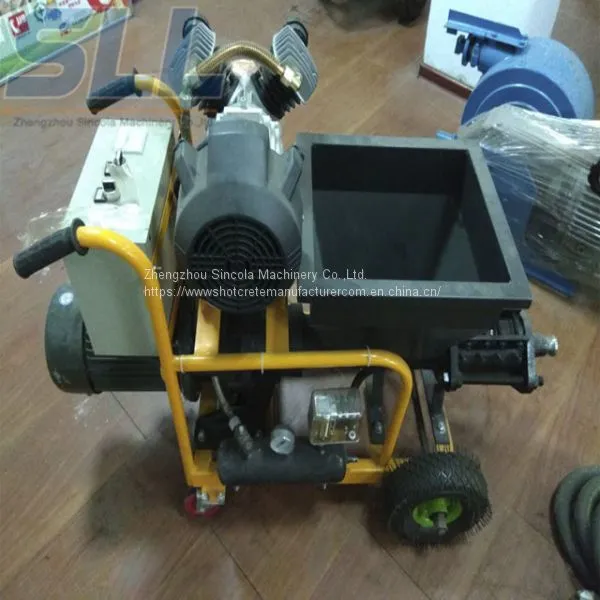

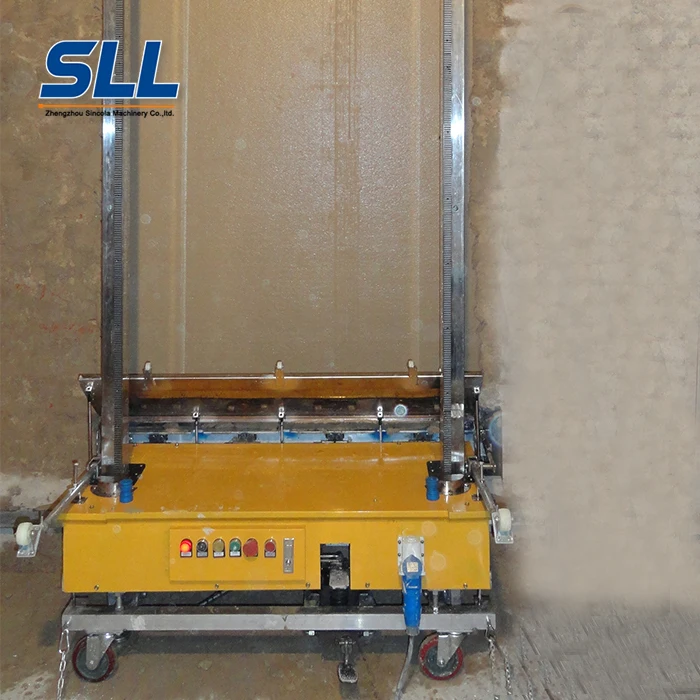

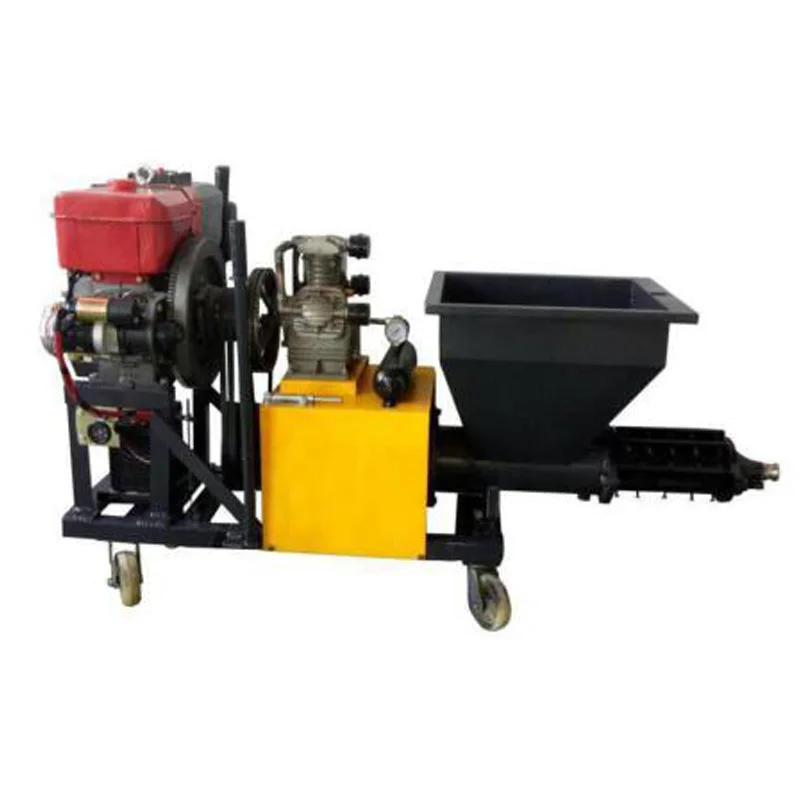

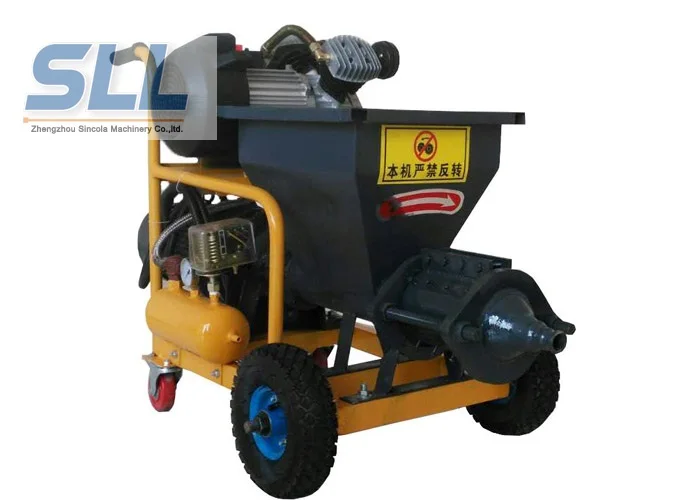

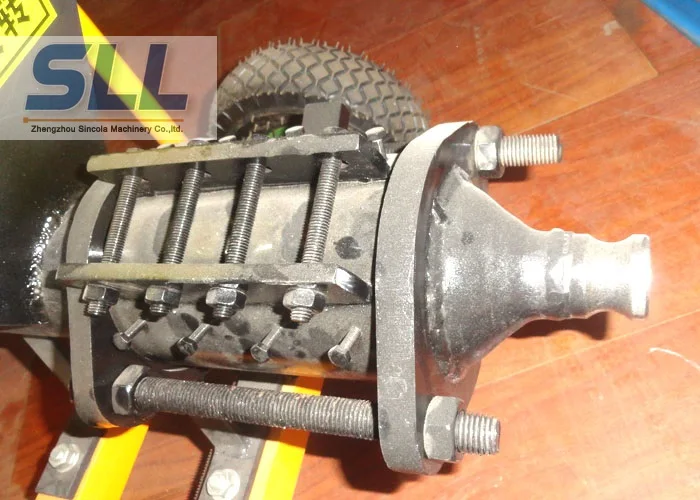

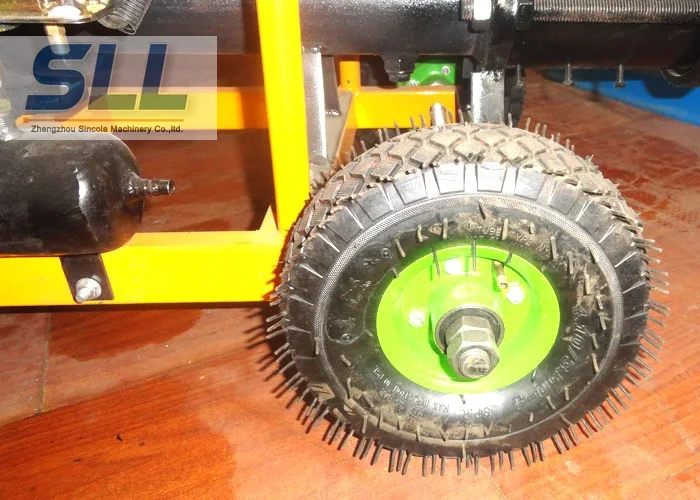

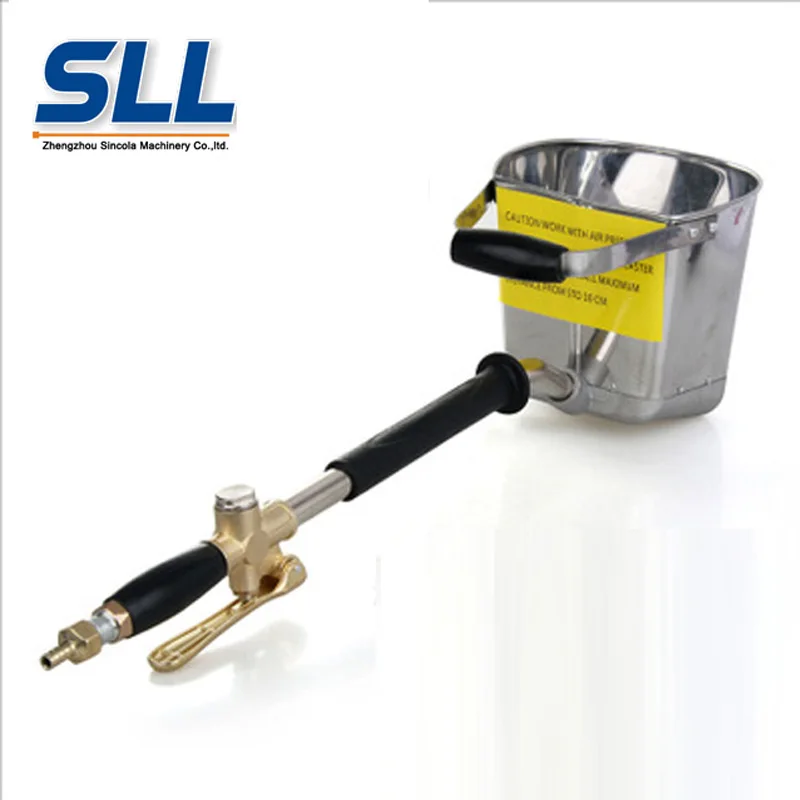

Pictures of bitumen spray machine
Our services:
We keep the service idea of "creat more value to customers" , treating our customers with all our hearts, and meantime lawfully running it. Our customers distribute in over 120 countries in Asia, Europe, Middle east,Oceania and America. We apply our professional knowledge and full global service capability to ensure the best results for our customer's business.
Company profile:
Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise professionally engaged in the R&D and manufacturing of shotcrete machine plaster machine and mortar pump, ceiling spray plaster rendering machine ,concrete pump etc.
Needs and development of a comprehensive analysis of international users, our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.
Domestically, we have offices in major cities with the rich-experience designers, which is convenient for analyzing and designing product line for customers and provides prompt, exquisite, considerate after-sales service. At present, our equipments have been exported to many countries and regions such as Southeast Asia, Mideast, Africa, Europe etc and highly appreciated by our customers. "Sincola" has become one of the most important manufacture and export bases of dry mortar machine in China.
