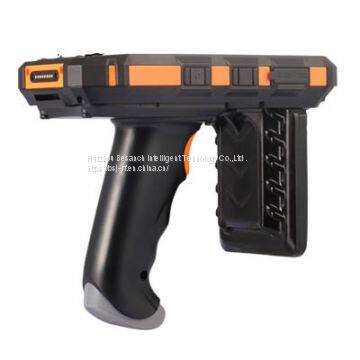

BSJ-C51 Handheld Terminal Parameters
|
SPECIFICATIONS | ||
|
PHYSICAL CHARACTERISTICS | ||
|
Dimension |
170mm(H)x85mm(W)x23mm(D)±2 mm |
|
|
Weight |
Net Weight :370g (including battery&wrist strap) |
|
|
Display |
5.0 inch Gorilla Glass 3 9H TFT-LCD(720x1280)touch screen with backlight |
|
|
Backlight |
LED backlight |
|
|
Keypads |
3 TP keys, 6 function keys, 4 side buttons |
|
|
Expansions |
2 PSAM, 1 SIM, 1 TF |
|
|
Battery |
Rechargeable li-ion polymer, 3.7V, 8000mAh |
|
|
PERFORMANCE CHARACTERSTICS | ||
|
CPU |
Quad A53 1.3GHz quad-core |
|
|
Operating System |
Android 5.1.1 |
|
|
Storage |
2GB RAM, 16GB ROM, MicroSD(max 32GB expansion) |
|
|
USER ENVIRONMENT | ||
|
Operating Temp. |
-20℃ to 50℃ |
|
|
Storage Temp. |
-20℃ to 70℃ |
|
|
Humidity |
5%RH to 95%RH(non-condensing) |
|
|
Drop Specifications |
5ft./1.5 m drop to concrete across the operating temperature range |
|
|
Sealing |
IP65, IEC compliance |
|
|
ESD |
±15kv air discharge, ±8kv direct discharge |
|
|
DEVELOPMENT ENVIRONMENT | ||
|
SDK |
Handheld-Wireless Software Development Kit |
|
|
Language |
Java |
|
|
Environment |
Android Studio or Eclipse |
|
|
DATA COMMUNICATION | ||
|
WWAN |
TDD-LTE Band 38, 39, 40, 41;FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
|
|
WLAN |
2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n |
|
|
WPAN |
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
|
|
GPS |
GPS(embedded A-GPS), accuracy of 5 m |
|
|
DATA CAPTUER | ||
|
BARCODE READER(OPTIONAL) | ||
|
1D barcode |
1D laser engine |
Symbol SE955 |
|
Symbologies |
All major 1D barcodes |
|
|
2D barcode |
2D CMOS Imager |
Honeywell N6603 |
|
Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Japan Postal, Dutch Postal. etc. |
|
|
COLOR CAMERA | ||
|
Resolution |
8.0 megapixel |
|
|
Lens |
Auto-focus with LED flash |
|
|
RFID READER(OPTIONAL) | ||
|
RFID LF |
Frequency |
125KHz/134.2KHz(FDX-B/HDX) |
|
Protocol |
ISO 11784&11785 |
|
|
R/W Range |
2cm to 10 cm |
|
|
RFID HF |
Frequency |
13.56MHz |
|
Protocol |
ISO 14443A&15693 |
|
|
R/W Range |
2cm to 8cm |
|
|
RFID UHF |
Frequency |
865~868MHz or 920~925MHz |
|
Protocol |
EPC C1 GEN2/ISO 18000-6C |
|
|
Antenna Gain |
Circular antenna(3dBi) |
|
|
R/W Range |
Default: 6 m to 7 m(tags and environment dependent) R2000 UHF Reader: 5 m to 7 m(tags and environment dependent) ThingMagic M6E Micro: 6m to 8 m(tags and environment dependent) |
|
|
Active 2.45GHz |
Read range more than 200 m |
|
|
FINGERPRINT READER(OPTIONAL) | ||
|
Sensor |
TCS1xx |
|
|
Sensor type |
Capacitive, area sensor |
|
|
Resolution |
508 DPI |
|
|
Performance |
FRR |
|
|
Capacity |
1000 |
|
|
PSAM SECURITY(OPTIONAL) | ||
|
Protocol |
ISO 7816 |
|
|
Baudrate |
9600, 19200, 38400,43000, 56000, 57600, 115200 |
|
|
Slot |
2 slots(maximum) |
|
|
ACCESSORIES | ||
|
Standard |
1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable |
|
|
Optional |
Carrying case; Cradle |
|
