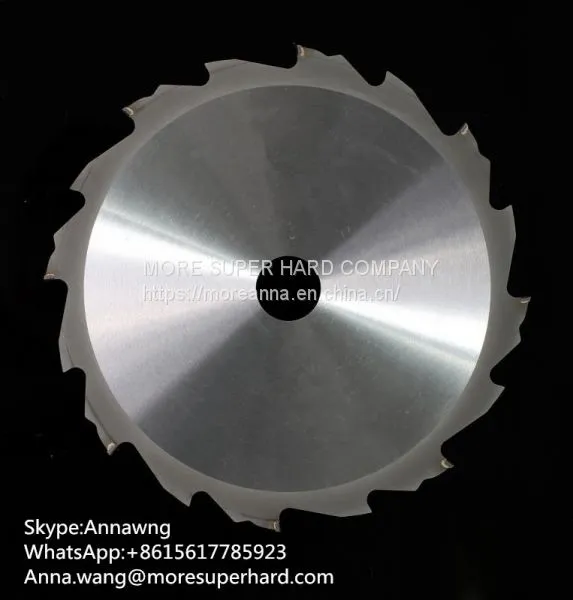

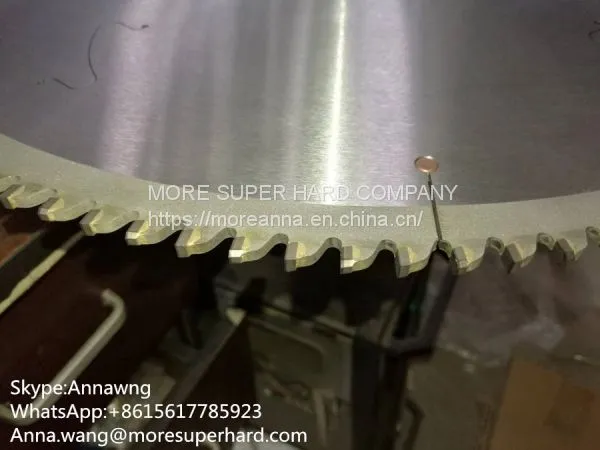

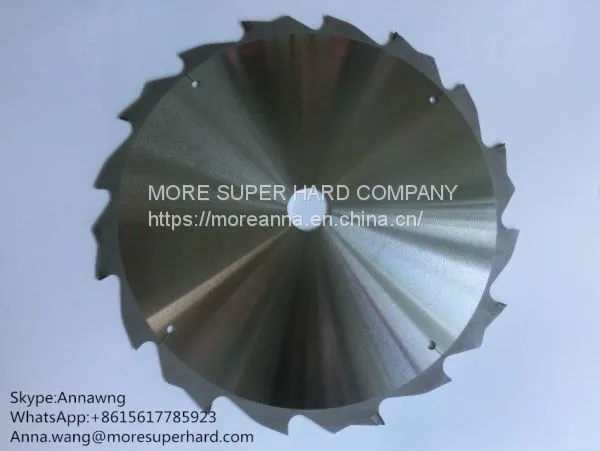

Factory Low Price PCD Tip Cutting Circular Saw Blade

Name: Factory Low Price PCD Tip Cutting Circular Saw Blade
Brand: MORE
SKU: 158920154

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Brand Name:

Place of Origin:

China

Model Number:

pcd

More Super Hard Company

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

10 days

Brand Name MORE

Place of Origin China

Model Number pcd

Size 300*30*8

Type Other, saw blade

Industrial TCT saw Blade For Cross and universal Use.


Material		Body: 50# carbon Steel, 65Mn
		Carbide Tip : YG8, YG6, YG6X
Teeth		ATB Teeth
Weld wormanship		Silver brased
Arbor size:		22.23/30mm
Application:		Wood, Ply wood, chipboard, softwood

T2. TCT Saw Blade For Laminated Panel

Material:	Body: 65Mn, SK-5, 75Cr1
	Carbide Tip: YG8, YG6X
Teeth:	TCG ( triple chip grind, triple chip tooth alternating with flat teeth.
Arbor size:	22.23 / 30mm
Body hardness:	HRC 40~45
Application:	Laminated panel, Ply board, chipboard.

T3. TCT Saw Blade For Hard Wood

Material	Body: 65Mn, JIS: SK5, SKS51,
	Carbide Tip: YG8, YG6X
Teeth Type:	TCG teeth
Arbor Size:	22.23/30mm
Body hardness:	HRC 45~48
Application:	Suitable for High density board, fire board.

Specifications of types of circular saw blade :

Circular Saw Blade (Cutting Wood/Bamboo /Chipboard/Density board)
Item No.	Steel Plate Material		Sizes(mm)
		Teeth material	Outside Diameter	Inside Diameter	Teeth thickness	Teeth Quantity
		Teeth material	Outside Diameter	Inside Diameter	Teeth thickness	Teeth Quantity
WX-C1121	No. 35 steel	TCT	110	20	1.8	30T
WX-C1122	No. 35 steel	TCT	110	20	1.8	40T
WX-C1123	No. 45 steel	TCT	180	25.4	2.2	40T
WX-C1124	No. 45 steel	TCT	180	25.4	2.2	60T
WX-C1125	No. 45 steel	TCT	180	25.4	2.2	80T
WX-C1126	No. 45 steel	TCT	200	25.4	2.4	40T
WX-C1127	No. 45 steel	TCT	200	25.4	2.4	60T
WX-C1128	No. 45 steel	TCT	200	25.4	2.4	80T
WX-C1129	No. 45 steel	TCT	230	25.4	2.8	40T
WX-C1130	No. 45 steel	TCT	230	25.4	2.8	60T
WX-C1131	No. 45 steel	TCT	230	25.4	2.8	80T
WX-C1132	No. 45 steel	TCT	230	25.4	2.8	100T
WX-C1133	No. 45 steel	TCT	250	25.4	3.0	40T
WX-C1134	No. 45 steel	TCT	250	25.4	3.0	60T
WX-C1135	No. 45 steel	TCT	250	25.4	3.0	80T
WX-C1136	No. 45 steel	TCT	250	25.4	3.0	100T
WX-C1137	No. 45 steel	TCT	250	25.4	3.0	120T
WX-C1138	No. 45 steel	TCT	300	30	3.2	40T
WX-C1139	No. 45 steel	TCT	300	30	3.2	60T
WX-C1140	No. 45 steel	TCT	300	30	3.2	80T
WX-C1141	No. 45 steel	TCT	300	30	3.2	100T
WX-C1142	No. 45 steel	TCT	300	30	3.2	120T
WX-C1143	No. 45 steel	TCT	350	30	3.4	40T
WX-C1144	No. 45 steel	TCT	350	30	3.4	60T
WX-C1145	No. 45 steel	TCT	350	30	3.4	80T
WX-C1146	No. 45 steel	TCT	350	30	3.4	100T
WX-C1147	No. 45 steel	TCT	350	30	3.4	120T
WX-C1148	No. 45 steel	TCT	400	30	3.6	40T
WX-C1149	No. 45 steel	TCT	400	30	3.6	60T
WX-C1150	No. 45 steel	TCT	400	30	3.6	80T
WX-C1151	No. 45 steel	TCT	400	30	3.6	100T
WX-C1152	No. 45 steel	TCT	400	30	3.6	120T
Other dimensions,thinckness and materials are available on request
