PCBN Cutting Tool Blanks pcbn inserts pcd inserts
- 3000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
- sponge grinding wheel for stainless steel
- diamond polishing pad for marble and granite
- abrasive Sheet Roll
- High precision electric spindle CBN grinding wheel grinding rod 20Cr carburizing quenching inner circular grinding machining
- Customized processing of carbon fiber with irregular shaped steel sand grinding head profile for rapid prototyping with good roughness
- Customized 190mm long electroplated diamond sand needle SDC120 # for drilling wood with a handle diameter of 2.5mm
Product Details
Brand Name: | MORE SUPER HARD | Place of Origin: | China | Model Number: | 1A1 |
Size: | 300 | Type: | Abrasive Disc |
Product Description

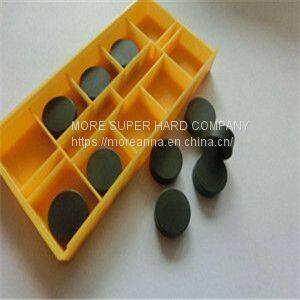

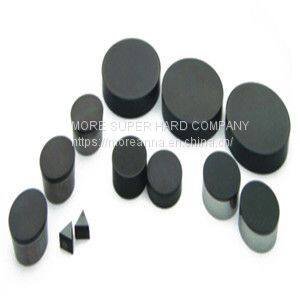

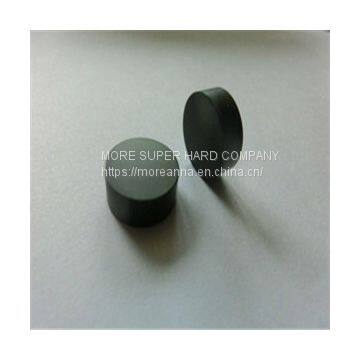

PCBN Cutting Tool Blanks
PCBN (Polycrystalline Cubic Boron Nitride) tool is a polycrystalline cubic boron nitride which is formed by adding a certain binder to cubic boron nitride micropowder and sintering it under high temperature and high pressure. Its hardness is second only to diamond and much higher than other materials. It is collectively referred to as a superhard material.
Advantages of PCBN tools1, high hardness and wear resistance
The microhardness of CBN single crystal is 8000-9000 HV, the hardness of PCBN sintered body is generally 3500-5000 HV, and the ceramic and hard alloy are about 2400 HV and 1800 HV, respectively.
In general, the wear resistance of cubic boron nitride is 30 times that of coated alloys, 50 times that of uncoated cemented carbides, and 15 to 20 times that of ceramic inserts.
Therefore, PCBN tools are often used to process high-hardness materials, especially for high-automatic equipment. It can reduce the dimensional deviation or dimensional dispersion in the processing of large parts, reduce the time for tool change and make full use of its performance.
2. High thermal stability and high temperature hardness
CBN heat resistant up to 1400 ~ 1500 ℃, 800 ℃ when the hardness of Al2O3 / TiC ceramic hardness under normal temperature, therefore, when the cutting temperature is higher, can make the processed material softening, between the tool and increase hardness difference, is conducive to cutting, and had a little effects on tool life, this will create conditions for high speed cutting.
3. High chemical stability
CBN chemical inertness, particularly large in neutral medium, air of acid-base stability, and the carbon in the 2000 ° no reaction, and iron material at 1200 ° C to 1300 ° C doesn't response, suitable for cutting ferrous metal materials.
4, good thermal conductivity
The thermal conductivity is 79.54W/(m·K), which is second only to diamond, but much higher than that of hard alloy. With the increase of temperature, the thermal conductivity of PCBN tool increases gradually, so the heat at the tip can be quickly transmitted. Conducive to the improvement of workpiece processing accuracy.
5, lower friction coefficientThe coefficient of friction between CBN and different materials is between 0.1 and 0.3, which is much lower than the friction coefficient of cemented carbide (0.4 to 0.6), and slightly decreases with the increase of friction speed and positive pressure. The low friction coefficient and excellent anti-adhesive ability make it difficult for PCBN tools to form a retaining layer or built-up edge when cutting, which is beneficial to the improvement of the surface quality.
In response to this feature, More Super Hard Superhard Tool Co., Ltd. is the first in China to develop different grades of PCBN materials and PCBN blades of different structural forms to meet the processing needs of customers in different industries, and gradually promote to the hard material processing industry in the country. Has achieved fruitful results, accumulated a lot of successful experience, and is committed to the manufacture and sales of CBN superabrasives and grinding wheels, and continues to provide high-speed, efficient, green processing solutions and high-end precision PCBN tools for high-end manufacturing at home and abroad. High-grade abrasive tools, boosting the industry 4.0
Contact Information
Sales hotline: 0371-86545906
Technical support: +8615617785923
Fax: 0371-86545906
E-mail: Annamoresuper@gmail.com
Website: www.moresuperhard.com
Address: No.171 Zhongyuan Rd, Zhongyuan District, Zhengzhou, Henan,450001 China
