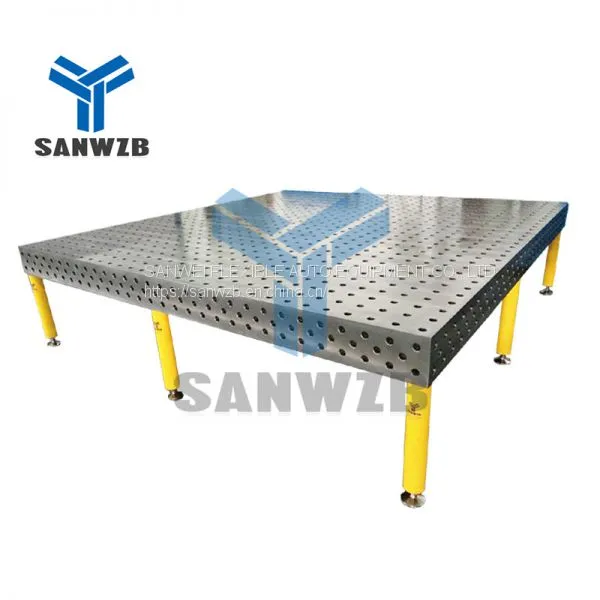

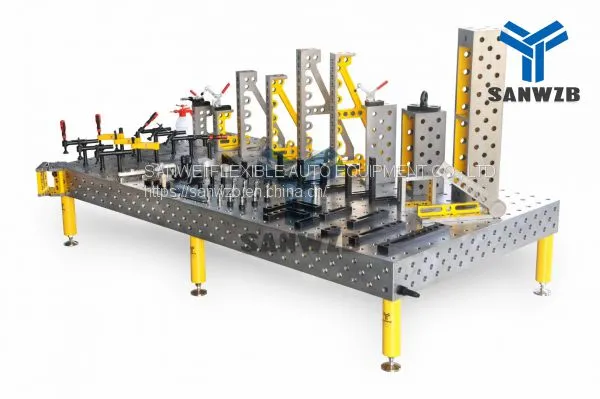

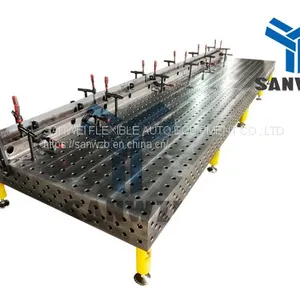

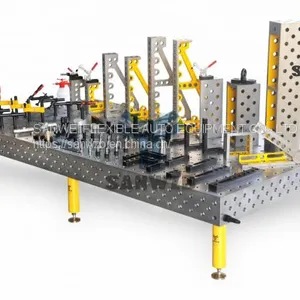

This is a set of modular clamping system, consisting of basic tables, supporting parts, locating parts, clamping parts and locking parts. On 3D welding table, any system accessories can be located and clamped in a variety of ways by "rapid locking bolt"; at the same time, several 3D welding tables can be directly linked together in any five faces, and can also be linked as a whole through laying tracks on the ground. The whole modular system demonstrates its general function perfectly in installing, adjusting and clamping. Because of its simple structure and such advantages as hole location, bolt connection, high precision, good rigidity, reusability, convenient assembly and large economic benefits, it is known as “building block in the workshop”.
Application:
u Rail Transit
u Auto-mobile, Vehicle manufacturing
u Ship Building
u Sheet Metal(Chassis, Cabinet) Working
u Aerospace
u Truss Arm Welding
u Steel Structure Production. ETC.
Tech Parameter:
l Material: Q345B(Steel), HT300(Cast Iron), QT500(Nodular Cast Iron), SUS304(Stainless Steel)
l Without defective holes, cracks, repair welding and other defects after proceeding.
l Hole diameter: φ28mm
l Thickness: D28—25mm
l Flatness: 0.10/1000mm (Industry standard: 0.15/1000mm)
l Surface Finishment: 1.6μm (Industry standard: 3.2μm)
l Grid Pattern: 100x100±0.05mm
l Hole spacing: 100±0.03mm
l Load Capacity: Support leg: 2T/m2; Holding frame support: 3T/m2.
Regular Specification:
| 1000x1000x200 | swk28-10101 |
| 1200x1200x200 | swk28-10102 |
| 1500x1000x200 | swk28-10103 |
| 1500x1500x200 | swk28-10104 |
| 2000x1000x200 | swk28-10105 |
| 2000x1500x200 | swk28-10106 |
| 2400x1200x200 | swk28-10107 |
| 3000x1500x200 | swk28-10108 |
| 4000x2000x200 | swk28-10109 |
| 3000x2000x200 | swk28-10112 |
