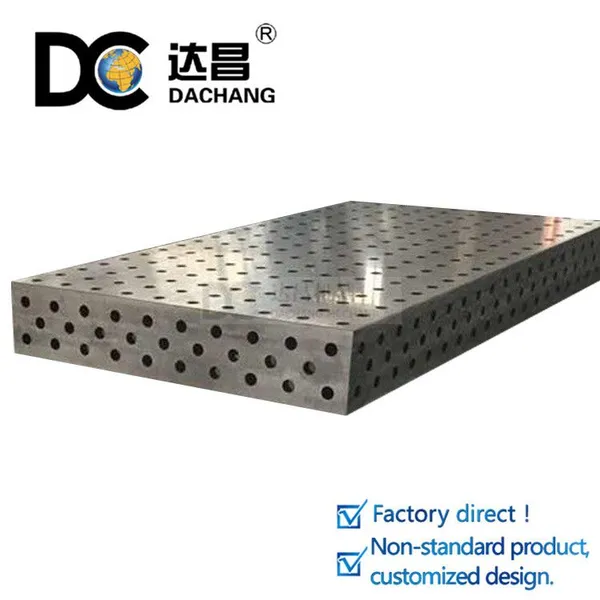

2D welding table
- 100 Piece / Pieces per Month
- tianjin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- Strong Mobility Portable Smart Lithium Battery Vertical Torque Wrench
- Light Weight Strong Mobility Portable Smart Lithium Battery Vertical Torque Wrench
- Light Weight Strong Mobility Portable Smart Lithium Battery Vertical Torque Wrench
- Railway Tool Chinese Supplier Internal Combustion Rail Bolt Wrench Rail Spanner Portable Rail Wrench
- Portable Rail Track Bolts Wrench
- Portable Rail Track Bolts Wrench/Portable Internal Combustion Rail Bolt Wrench
Product Details
Place of Origin: | China |
Product Description

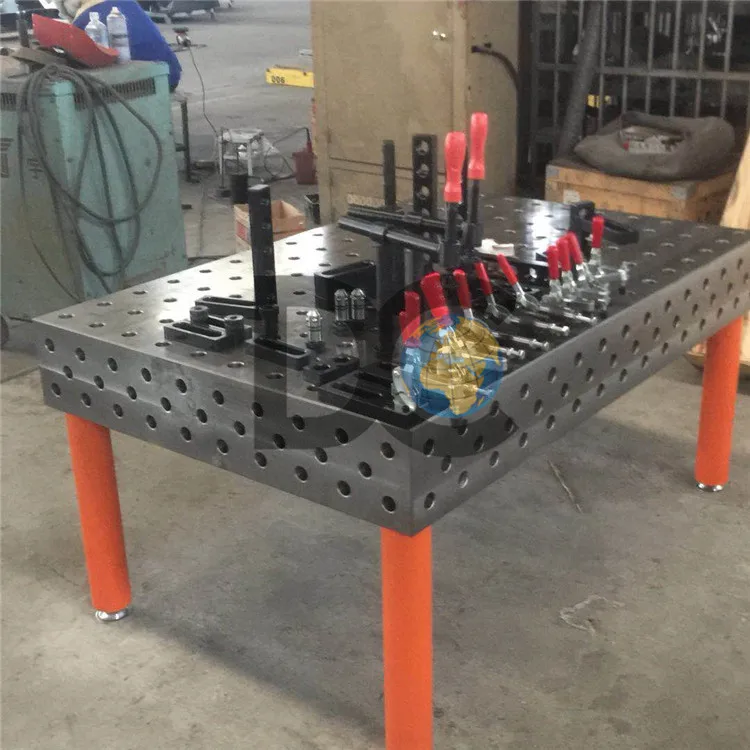

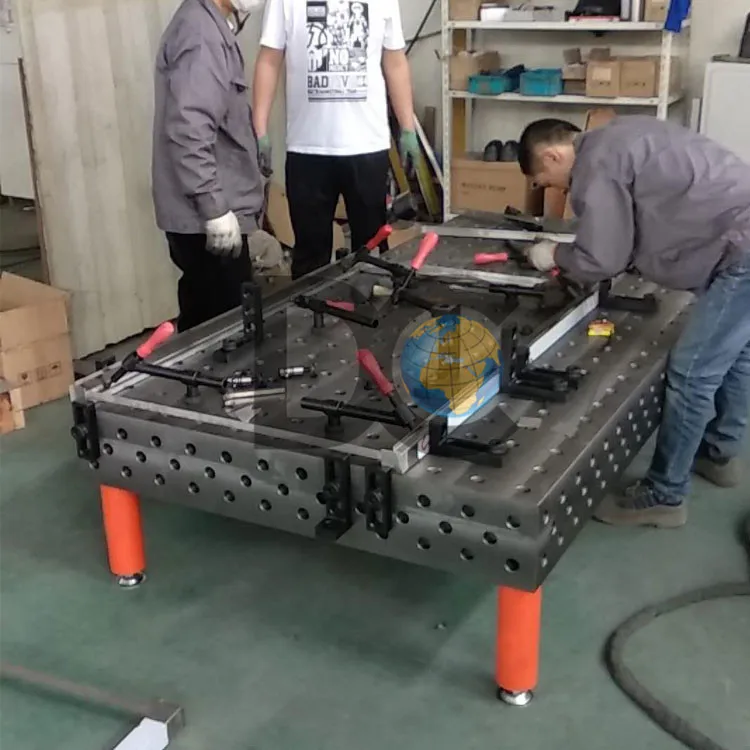

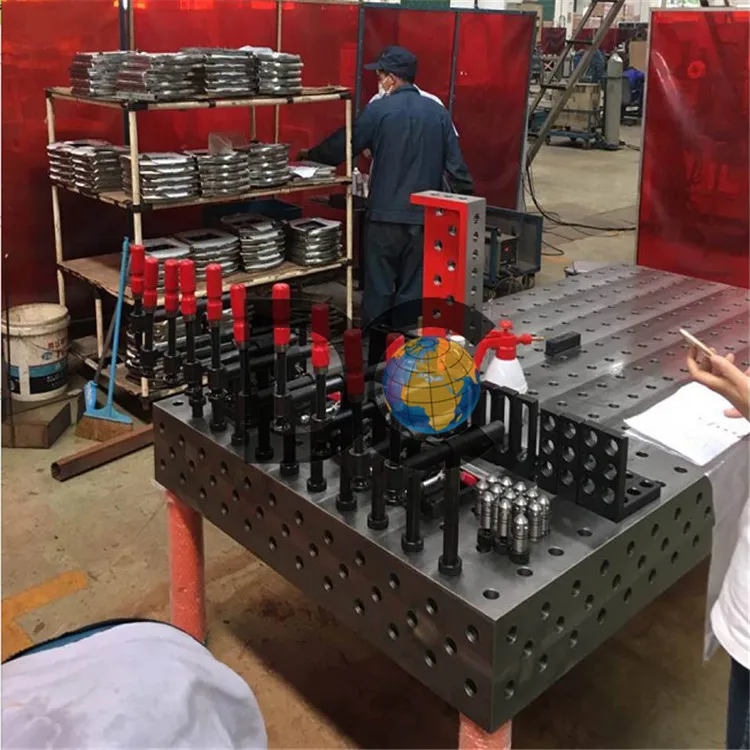

3D cast iron and steel hot plate welding table machine with fixtures and jigs
1. Adopted casting or steel pieces, sturdy and durable.
2. 28 series spacing between hole and hole is 100±0.05mm.
3. 16 series spacing between hole and hole is 50±0.05mm.
4. Bottom strengthening rib can ensure the stable and no deformation.
5. Fine adjustable - adjust the foot pad of leg to keep the even.
6. Fast position the fixture by scale, no need tape.
7. Five faces can be used by modularization extending and expansion.
8. Different products and different standards can be used repeat.
9. Reducing the abrasion by using the rust protection lubricating oil between the face and hole.
10. Reasonable adopt the plate supporting way based on the real situation.
Technical parameters:
3D welding table —— D28 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
3D welding table —— D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.
Details Show
Botou City Dachang Machinery Equipment Manufacture Co., Ltd. is located at the seaside of Bohai, the "casting city" Botou.
Cast iron surface plate mainly used for machinery, machine tool board manufacturing, electronics, electric power, all kinds of industries, Most commonly used in industrial production, 95 per cent of the total output .
The material of surface plate is HT200-300.after your using ,pls daub rust-proof to avoid rust.
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample but you have to pay.
A: 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact me !
Thanks for your visit!
