PDC Is Mainly Applicable For PDC Drilling Bit For Drilling Into Soft And Intermediate-Hardness Stratum. Microstructure With Complete C-C Bond Combination Is Characterized Between The Grains Of Diamond In Polycrystalline Diamond Layer, Which Allows The High Strength, High Hardness And High Wearing Property Of Diamond Layer As Well As Good Self-Sharpening Property. New Cutting Surfaces Will Appear During The Course Of Abrasion, Which Keeps Effective Cutting Rocks. PDC Drilling Bit Made Of Such PDC Will Break Up Rocks Depending On Shearing Action When It Works, Which Is More Effective Than Crushing Of Rocks By Roller Cone Bit Or Plowing And Grinding Of Rocks By Diamond Impregnated Bit. The Serrate Structure Combination Between Polycrystalline Diamond Layer And Hard Alloy Substrate Allows More Fixed Combination Between The Two Layers And Allows More Impact Resistance Of The Whole PDC.
| Spec sheet | |||||
| Code | D ( mm) | H (mm) | Diamond Height (mm) | Diamond Chamfer (mm) | Carbide Chamfer (mm) |
| 1919 | 19.05±0.05 | 19.05±0.10 | 2.0-2.5 | 0.5x45° | 0.5x45° |
| 1916 | 19.05±0.05 | 16.0±0.10 | 2.0-2.5 | 0.5x45° | 0.5x45° |
| 1913 | 19.05±0.05 | 13.2±0.10 | 2.0-2.5 | 0.5x45° | 0.5x45° |
| 1616 | 15.88±0.05 | 16.0±0.10 | 2.0-2.5 | 0.3x45° | 0.5x45° |
| 1613 | 15.88±0.03 | 13.2±0.10 | 2.0-2.5 | 0.3x45° | 0.5x45° |
| 1610 | 15.88±0.03 | 10.0±0.10 | 2.0-2.5 | 0.3x45° | 0.5x45° |
| 1608 | 15.88±0.03 | 8.0±0.10 | 2.0-2.5 | 0.3x45° | 0.5x45° |
| 1313 | 13.44±0.03 | 13.2±0.10 | 2.0-2.5 | 0.3x45° | 0.5x45° |
| 1308 | 13.44±0.03 | 8.0±0.10 | 2.0-2.5 | 0.3x45° | 0.5x45° |
| 1010 | 10.00±0.03 | 10.0±0.10 | 2.0-2.5 | 0.3x45° | 0.5x45° |
| 1008 | 10.00±0.03 | 8.0±0.10 | 2.0-2.5 | 0.3x45° | 0.5x45° |
| 0810 | 8.00±0.03 | 10.0±0.10 | 2.0-2.5 | 0.3x45° | 0.5x45° |
| 0808 | 8.00±0.03 | 8.0±0.10 | 2.0-2.5 | 0.3x45° | 0.5x45° |
Factory price API standard diamond 1308 pdc oil cutters
Features :
1. The PDC cutter has high abrasive resistance. High quality materials are sintered to form the diamond layer which is of rigid framework structure. The PDC features compact structure and good abrasive resistance.
2. The PDC cutter features good impact resistance. The PDC uses tungsten carbide material which has good impact resistance and the diamond layer can guarantee the toughness of the impact resistance.
3. The PDC cutter has strong binding force. The junction plane of the diamond layer and the tungsten carbide layer uses a corrugated tooth design. The binding force can be increased and the bad impact of the plane residual stress on the PDC performance can be avoided.
4. The PDC cutter has good self sharpening performance. The good organization microstructure of the diamond makes the diamond particle remain sharp all times.
5. The PDC cutter features good thermal conductivity. Its highest bearing temperature can reach 700°C.
Application Cases Of PDC Cutters:
* 120 Pcs PDC Cutters And Shim Have Sent To Abu Dhabi Client
| Products Name | 1308 PDC Cutters And Silver Nickel Shim |
| Application Of PDC Cutter | Milling Iron Sulphate Scale , Cement And Plugs |
| Application Of Shim | Brazing PDC Cutters |
|

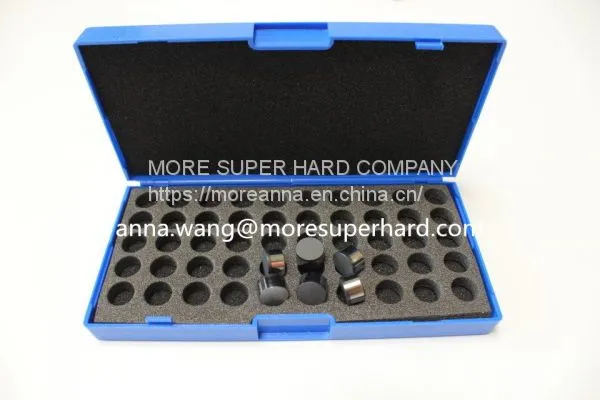

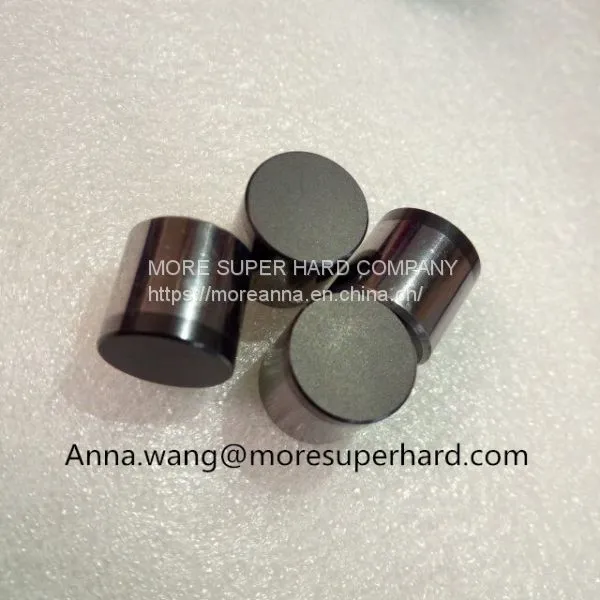

Product Photo Show
| |

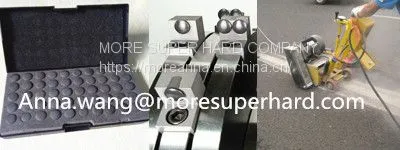

* 400 Pcs PDC Cutters Have Sent To American Client
|
PDC Cutters Type |
1308 Domed Type PDC Cutter |
| Application | Concrete Pavement Milling | |
|
Customer Feedback | ||
