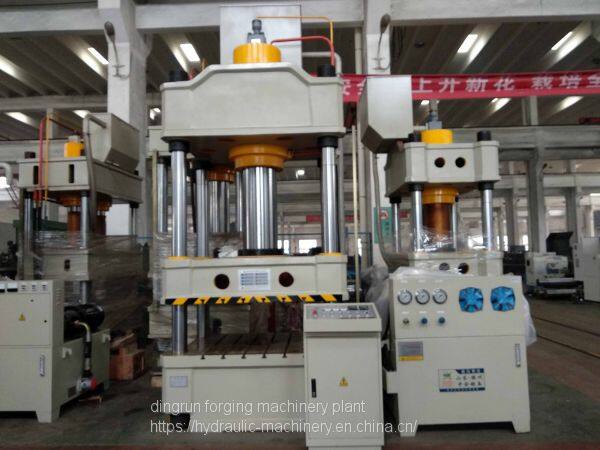

Wheel barrow cold press deep drawing hydraulic press machine
Deep drawing hydraulic press machine show and usage:
use metal tensile,punching,rummaged,cold extrusion and other stamping process,
can also be used for correction ,ed powder products and plastic molding products
and insulation materials molding.

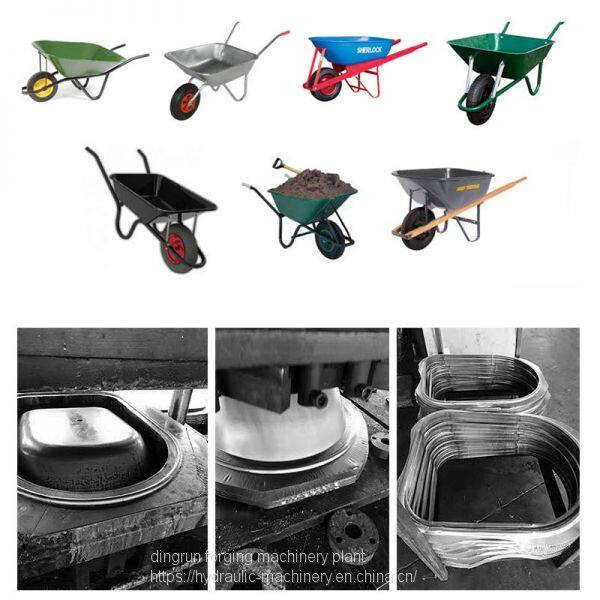

wheel barrow drawing press machine
water tank making press machine
basin/bowl stretching press machine
kitchen sink molding press machine
Squat toilet forming press machine
Extension molding process for motor housing, fan housing, air conditioner, kitchen supplies, etc.
Accomplished hydraulic cold press shaping productions:
kinds of stainless steel container,basin,pan,sink,tank,bowl,pail,tub,bucket..
metalic surface and covery for variety of electrical appliances,household appliances.
Special use of various metal parts to suppress molding, it can be said that all walks of life are in use.

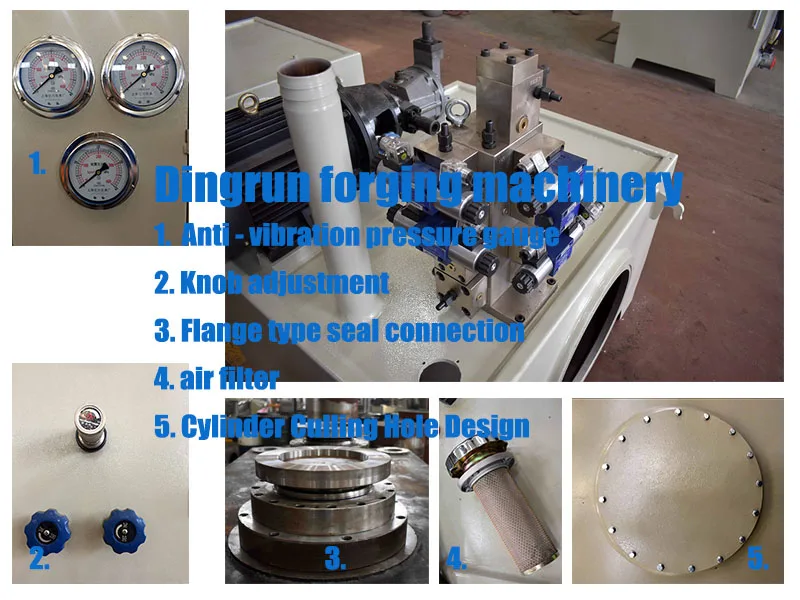

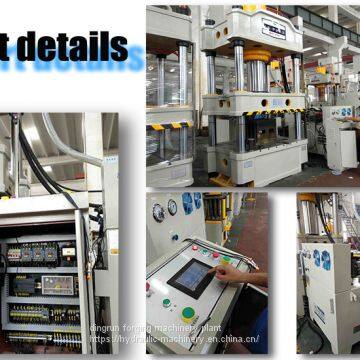

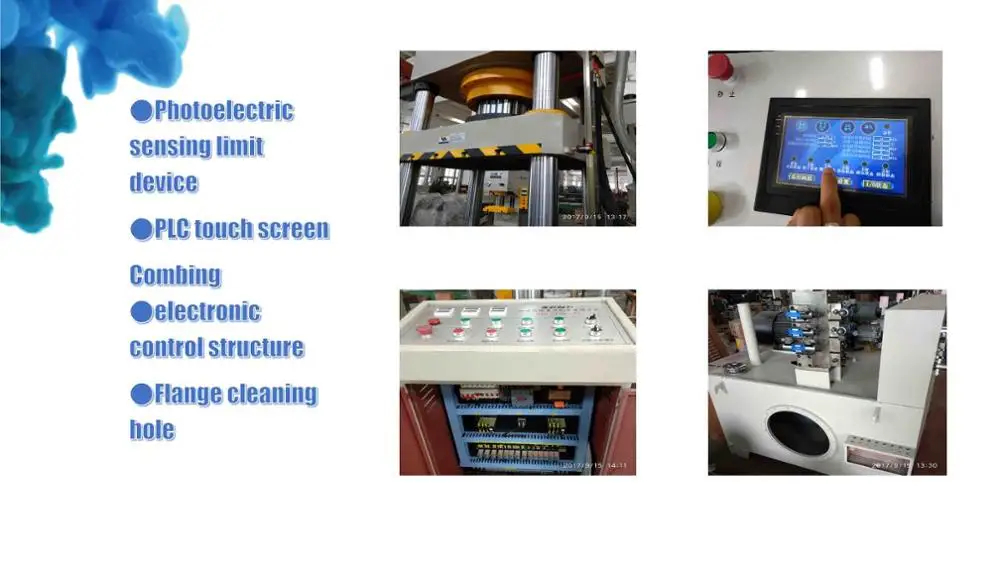

Dingrun deep drawing hydraulic press machine structure details feature:
Core electrical appliances using Schneider Electric, other basic components using the domestic well-known strength of the brand, the performance is very good.
Table, beam with 45 # cast steel structure.
Column with 45 # round steel, plus chrome plating.
Sleeve with wear-resistant cast iron, embedded PTFE wear-resistant materials, Fang La injury against partial load, hand-lubricating pump to provide lubrication services.
Hydraulic cylinder with piston pump, GB sealing ring, the cylinder selected 45 # Yan tube,
the Cylinder with 45 # forged steel, piston rod with 45 # round steel surface hardening, chrome treatment.
oil Tank using closed structure, welding, grinding, dough roll sticking, pickling, phosphating treatment. Equipped with oil level indicator, fuel tank ventilation, oil tank, putter, and dredging hole.

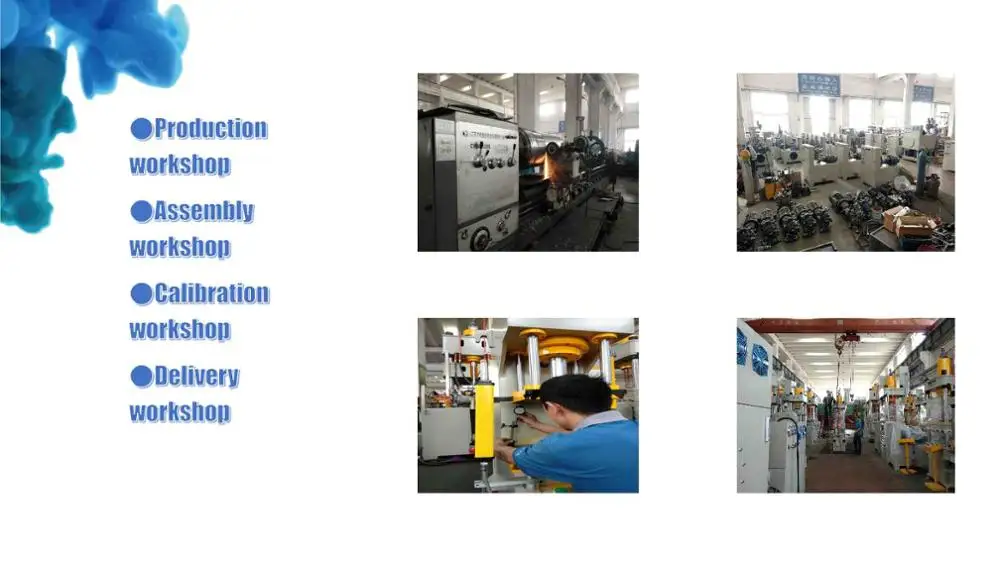

Dingrun hydraulic press machine processing departments
Large-scale workshop design, fine workshop management, clear responsibility, layers of quality control, to ensure timely delivery of goods
| wheel barrow cold press deep drawing hydraulic press machine parameter | |
| MODEL | 315T |
| Liquid working pressure(MPa) | 25 |
| Nominal pressure(KN) | 3150 |
| Master cylinder stroke(mm) | 500 |
| Max. opening height(mm) | 1260 |
| Lifting cylinder(T) | 30*2 |
| Lifting cylinder stroke(mm) | 400 |
| Working table size(mm*mm) | 1000*1000 |
| Descent speed(mm/s) | 250 |
| Working speed(mm/s) | 10~20 |
| Return speed(mm/s) | 130 |
| Motorpower(KW) | 22 |
Tengzhou Dingrun Forging Machinery Plant
Our machinery and tool equipment are widely used in industry, agriculture, materials processing
and manufacturing, daily necessities manufacturing, clothing, food, housing, transportation,
all walks of life are very popular.
Address:Tengzhou City, Shandong province China Hengyuan Road No. 1188

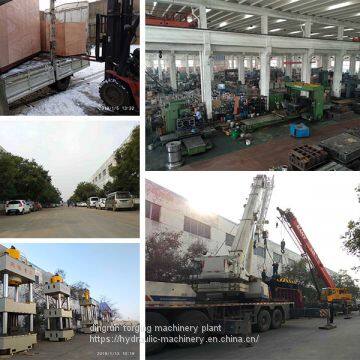

Wheel barrow cold press deep drawing hydraulic press machine delivering
1. Stable delivery time
Our plant large-scale production, metal stamping hydraulic press machine supply capacity is very strong, shipments, delivery is very fast.
2. Issued product quality standards
From the material accessories selection, manufacturing paint links, to the installation and commissioning, repeated experiments, layers of quality control, to ensure that qualified deep drawing hydraulic press machine products
3. Traffic conditions are very convenient
We are located in the transport hub, land transport, water transport, shipping conditions are very convenient to ensure that transport costs are reasonable, adequate transport time.
4. Product packaging material selection, good protection products
Finished hydraulic press machine products immediately outside the anti-rust treatment,
and the use of plastic packaging for further protection, delivery using thick wood, steel frame protection,
and other diversified packaging conditions to ensure that products in the long sea is not affected.
Wheel barrow cold press deep drawing hydraulic press machine services
Pre-sale
to provide detailed advice, as well as deep drawing hydraulic press machine introduction, program recommendations
and field inspection, as much as possible to meet your problems and needs.
Sales
can support press machine samples, support a variety of hydraulic press machine payment methods, the production process transparent, standardized, fast delivery.
After-sales
support for diversified guidance, training, voice and video images, and even overseas press machine site installation, on-site training, routine maintenance, continuous return visit, customer care.
