Four-column Deep Drawing Hydraulic Press Machine

FOB Price

USD $10,000 - $15,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port China port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Power Source	Hydraulic	Place of Origin	Guangdong, China
Brand Name	yongheng	Model Number	Y28-120
Voltage	110-440V	Power(W)	15KW
Weight	4Ton	Dimension(LWH)	1680 x 1160 x 3670mm
Certification	ISO9001:2000	Warranty	One Year, One year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

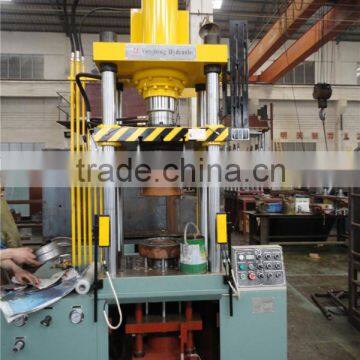

Four-column Deep Drawing Hydraulic Press Machine

1.Suitable for:

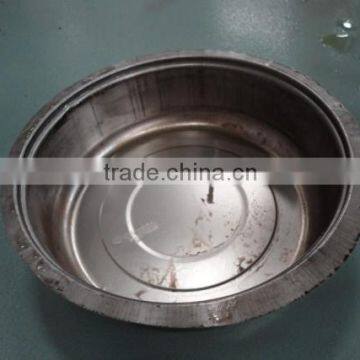

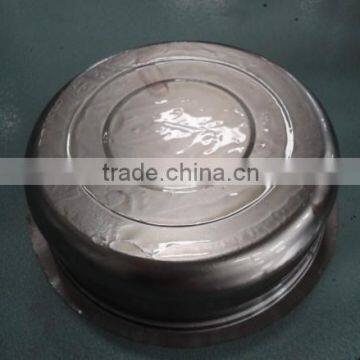

Four-column Deep Drawing Hydraulic Press Machine is apply for aluminum products and stainless steel products,which is particularly used for drawing aluminum sheet,pressing and forming aluminum products,drawing stainless steel sheet,as well as pressing and forming stainless steel products.

2.Function:

A.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing

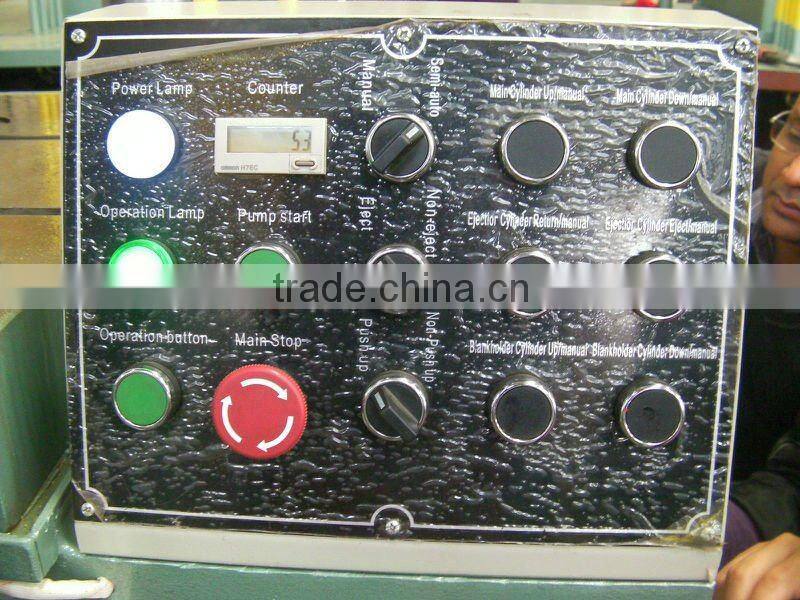

B.Safety protection device should be equipped to provide security guarantee for the operators

C.Auto count function should be equiped

D.The deep drawing force and blank holder force are adjustable

3.Main technical specification:

DESCRIPTION	UNIT	Y28-120
Nominal Capacity	KN	800
Main Cylinder Pressure	Mpa	21
Return Capacity	KN	54
Blankholder Cylinder Capacity	KN	400
Blankholder Cylinder Max. Pressure	Mpa	23
Upper Ejector Capacity	KN	39
Ram Stroke	MM	500
Blankholder Stroke	MM	250
Ejection Stroke	MM	180
Downing Speed	MM/S	340
Pressing Speed	MM/S	17~25
Return Speed	MM/S	280
Motor Power	KW	15
Working table size	MM	540 (L) x 600(W)
Overall Size	MM	1680(L) x 1160(W) x 3670(H)

Product Description

Our Services

1.The special specification can be custom made separately

2.Engineer is available to service oversea

Packaging & Shipping

Contact Us

Foshan Yongheng Hydraulic Machinery Ltd. Nanhai Branch: Contact nameJianhua Luo
Chat Now; Phone86-757-85408933; AddressShashui Rd,Danzao,Nanhai,Foshan,Guangdong, Foshan, Guangdong
