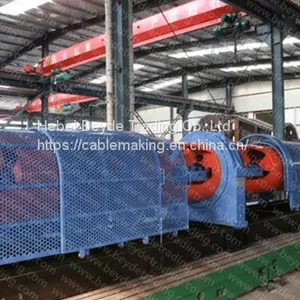

Help CenterHigh Quality Popular New Design Wire Cable Tubular Stranding Machine With Good
Related Products
-
High Speed Skip Strander Bow Type Stranding Cable Twisting Machine.China Bow Strander, Bow Strander ManufacturersUS$ 30000 - 150000MOQ: 1 Set -
Stranding Cage Wire Stranded Equipment Cable Twisting Machine Take-up and Pay-off Device Bow Type Stranding MachineUS$ 30000 - 150000MOQ: 1 Set
-
Cable Laying up Machine From China Supplier 1250/1500/2500US$ 30000 - 70000MOQ: 1 Set
-
Cable Planetary Cabler 630x32/630x48 Bobbins Cable Making Machine Planetary StranderUS$ 30000 - 800000MOQ: 1 Set
-
1+4+bow Type Stranding Machine 1250/2500 Take up Unit Cable Making MachineUS$ 30000 - 80000MOQ: 1 Set

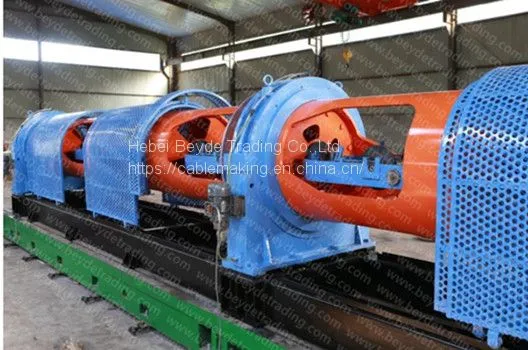

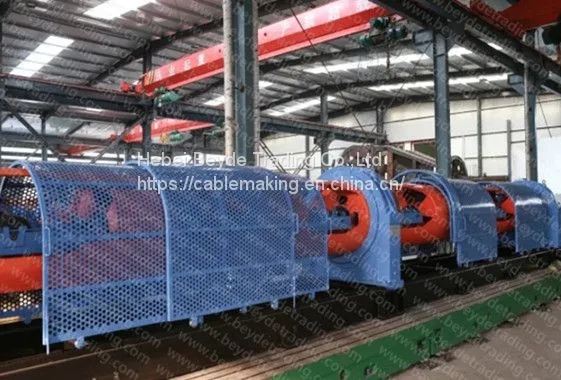

Application: The high speed machines mainly used for stranding copper wire, aluminum wire, steel wire, ACSR and wire rope. Accompanied with taping head, it can used for insulation cores and some control cable stranding process.
Component: Central pay-off, cage host, taping device(optional), capstan, take-up and traverse device and electric control system.
Main Character:
1.The machine can work steadily with the whole holder, and the protect cover adopts high grade seamless steel tube, so the structure is also steady with lower noises.
2.The timing power can be manipulated easily to adjust the speed .The protect cover has the right and reverse direction circumrotate.
3. The main machine and the haul-off unit adopt shift gears case, so the working intensity is lower and the pitch is exact.
4. Equipped with automatic parking equipment -the safeguard, it means the machine will stop when the thread runs out or the door is open.
Technical Parameter
| SpecificationJGGA400JGGA500JGGA 630Inlet wire Dia(mm)Conductor1.5-3.51.8-4.02.0-5.0steel1.0-2.51.5-3.01.8-4.0Cores1.2-3.51.5-5.0Frame rotation speed(r/min)700600400Stranding Pitch(mm)41-31244-334Linear Speed(m/min)27-205.3222-166.8514-108.9Capstan Dia(mm)800+10001000+12001000+1250Size of Take-upPN1250PN1600PN1600
|
