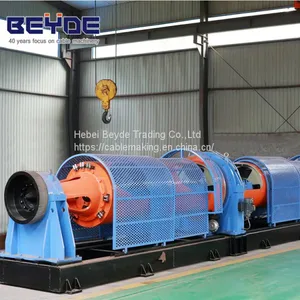

Help CenterCopper Wrie Steel Wire and Wire Rope Stranding Machine Siemens Control System Tubular Stranding Machine
Related Products
-
Good Price High Quality 7-wires Tubular Stranding MachineUS$ 30000 - 70000MOQ: 1 Set -
Frame Stranding Machine for Copper Strand, Aluminum Strand, ACSR as Well as TwistingUS$ 30000 - 800000MOQ: 1 Piece
-
Stranding Machine/ Bunching Machine Rgid Stranding MachineUS$ 30000 - 800000MOQ: 1 Piece
-
Rgid Frame Stranding MachineUS$ 30000 - 800000MOQ: 1 Piece
-
Rubber Cable, Power Cable,control Cable,charging Pile Cable Production Cable Laying MachineUS$ 30000 - 800000MOQ: 1 Piece
Application: The high speed machines mainly used for stranding copper wire, aluminum wire, steel wire, ACSR and wire rope. Accompanied with taping head, it can used for insulation cores and some control cable stranding process.
Component: Central pay-off, cage host, taping device(optional), capstan, take-up and traverse device and electric control system.
Main Character:
1.The machine can work steadily with the whole holder, and the protect cover adopts high grade seamless steel tube, so the structure is also steady with lower noises.
2.The timing power can be manipulated easily to adjust the speed .The protect cover has the right and reverse direction circumrotate.
3. The main machine and the haul-off unit adopt shift gears case, so the working intensity is lower and the pitch is exact.
4. Equipped with automatic parking equipment -the safeguard, it means the machine will stop when the thread runs out or the door is open.
Technical Parameter
| SpecificationJGGA400JGGA500JGGA 630Inlet wire Dia(mm)Conductor1.5-3.51.8-4.02.0-5.0steel1.0-2.51.5-3.01.8-4.0Cores1.2-3.51.5-5.0Frame rotation speed(r/min)700600400Stranding Pitch(mm)41-31244-334Linear Speed(m/min)27-205.3222-166.8514-108.9Capstan Dia(mm)800+10001000+12001000+1250Size of Take-upPN1250PN1600PN1600 |
