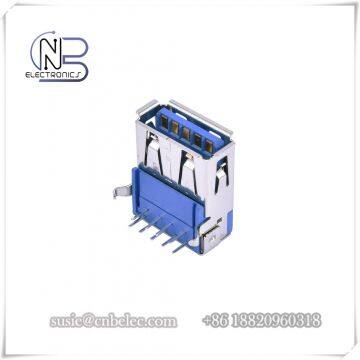

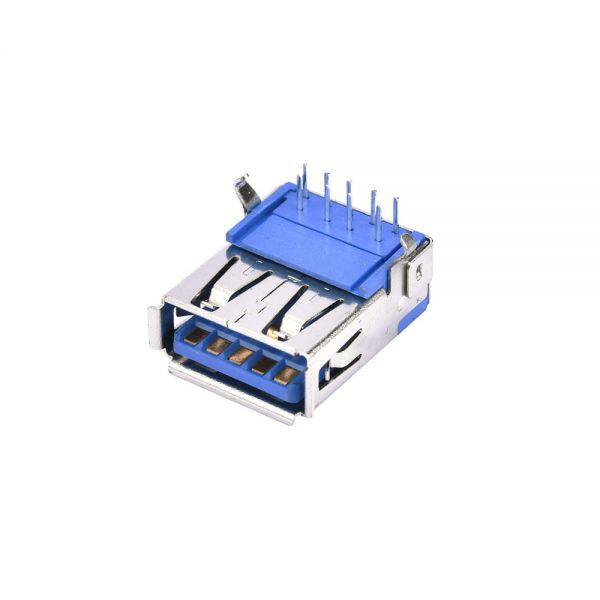

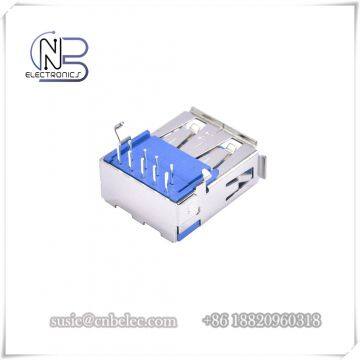

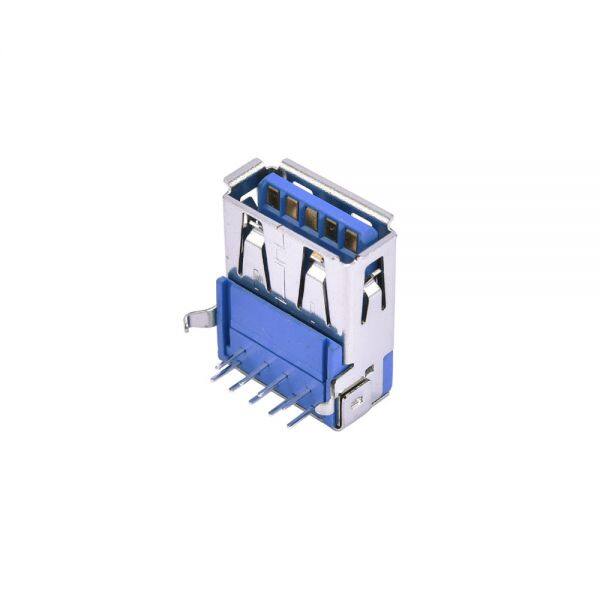

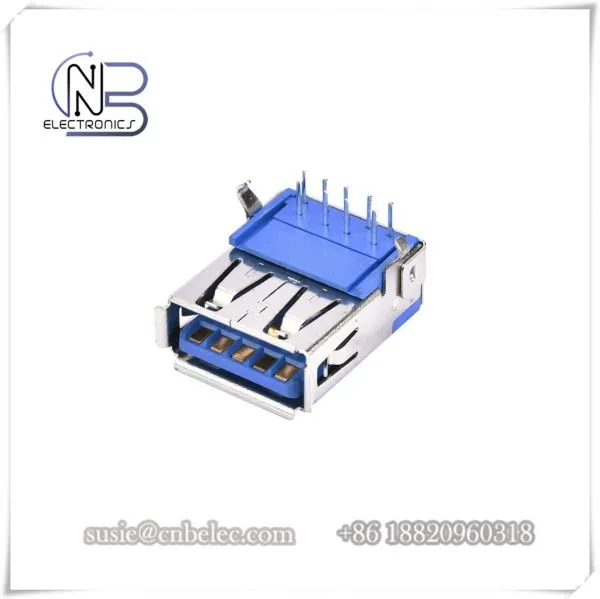

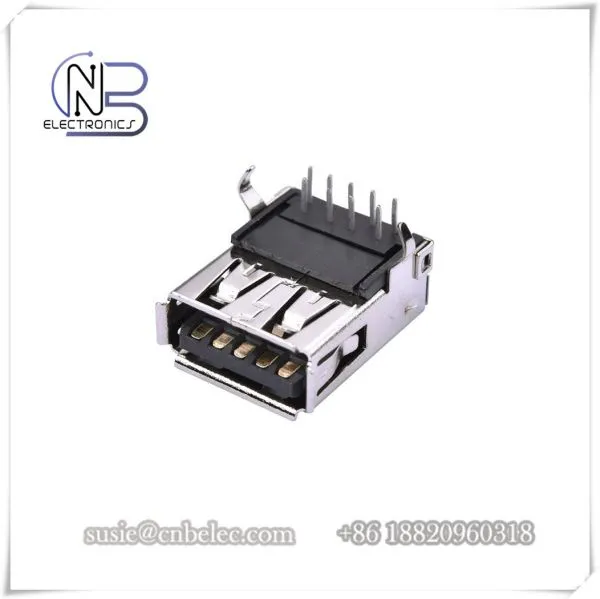

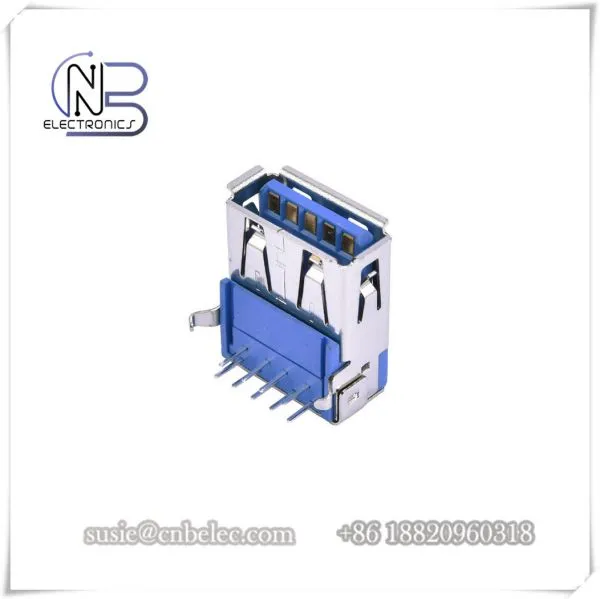

Waterproof 90 Degree DIP 9 Pins Solder UL94V-0 Type A Female 3.0 USB Connectors for Board Interface
US$ 0.01 - 0.1
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Brand Name:
CNB electronics
Place of Origin:
China
Model Number:
CNB-UAFRTUBB99-CC
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
5 days
Related Products
-
Waterproof 90 Degree DIP 9 Pins Solder UL94V-0 Type A Female 3.0 USB Connectors for Board InterfaceUS$ 0.01 - 0.1MOQ: 5000 Pieces -
Flameproof 180 D DIP 9 Pins Usb Solder Type A Female 3.0 USB Connectors for Digital ProductsUS$ 0.01 - 0.1MOQ: 5000 Pieces
-
Straight Solder Type USB A Female Plug Jack Connector for Power Banks or ChargerUS$ 0.01 - 0.1MOQ: 1000 Pieces
-
OEM 4 Pin Type A USB Connector From Shenzhen ManufacturerUS$ 0.01 - 0.1MOQ: 5000 Pieces
-
IP67 Waterproof Data USB 2.0 3.0 Connector for Data Transmission EquipmentUS$ 0.01 - 0.1MOQ: 100 Pieces
Brand Name
CNB electronics
Place of Origin
China
Model Number
CNB-UAFRTUBB99-CC
Waterproof 90 degree DIP 9 pins solder UL94V-0 type A Female 3.0 USB Connectors for board interface
---Specifications:
| Model No. | CNB-UAFRTUBB99-CC | ||
| Material | Contact | Copper Alloy (C2680) | |
| Shell | Copper Alloy (C2680)/SPCC | ||
| Housing | PBT White/ Blue/Black | ||
| Finish | Contact | 1u Au Plated ON Contact Area Over 60~80U Ni, Sn Plated On Solder Tails |
|
| Shell | Ni Plated 100u | ||
| Plating Time | 24 Hours/48 Hours | ||
| Electrical Characteristic |
Contact Resistance | 30mΩ Max | |
| Insulation Resistance | 1000mΩ Min | ||
| Rated Current | 1.5A | ||
| Rated Voltage | 30V | ||
| Dielectric Withstanding Viltage |
500V AC for 1 minute | ||
| Environmental | Opterating Temperature | -55~85℃ | |
| Mechanical Characteristic |
Duribility | 1500/5000 cycles | |
| Insertion Force | 35N (3.57kgf) Max | ||
| Unnmating Force | 10N (1.02kgf) Min | ||
---Packaging:
* 100pcs in a tray
* 5 tray in a carton
* the size of carton: 36.5*24.5*20 cm
* Weight: about 8.5kg (500pcs in one carton)
