Factory price steel or Kevlar enforced 255*72*30 all terrain vehicle robot rubber track
1. Common rubber track belt is a ring track made of original rubber / metal, which has the advantages of lease ground pressure and bigger traction. It is the driving system that widely used in the field of agriculture, construction and transportation and can replace the metal track and tire.
2.Main spec of rubber track belt
Material: Rubber Rubber with Kevelar fiber enforced.
Track Width: 10 in (i.e. 255mm)
Pitch Size: 72mm
Track Thickness: 0.354 in. (i.e. 9-11mm)
Track Perimeter: 8.69 ft (i.e. 2.16-2.65 m)

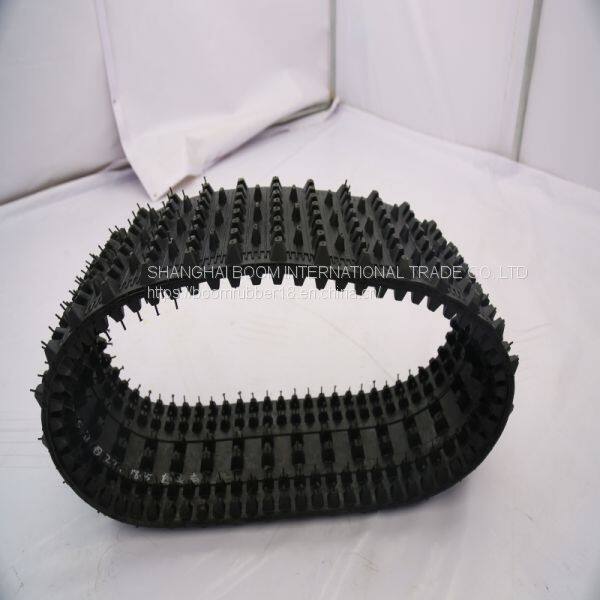

Outside picture of SQ-B all terrain vehicle robot rubber track from China:
3. Regular Specification List of Rubber Track Belt from Fighter tracks:
| Pitch (MM) | Width (MM) | Length (MM) | Weight (KG) |
| 61 | 118 | 1098 | 2.8 |
| 40 | 123 | 1400 | 2.1 |
| 60.7 | 124 | 1335.4 | 2.7 |
| 19 | 125 | 1254 | 1.6 |
| 100 | 130 | 2800 | 2.5 |
| 60 | 130 | 1680 | 5.4 |
| 61 | 130 | 1708 | 2.8 |
| 50 | 130 | 2650 | 5 |
| 62 | 132 | 1674 | 5.5 |
| 18.5 | 135 | 777 | 1.17 |
| 45 | 136 | 1350 | 2.9 |
| 45 | 136 | 1710 | 3.23 |
| 80 | 140 | 1920 | 5 |
| 60 | 148 | 2160 | 16 |
| 63.4 | 150 | 1775 | 5.1 |
| 61.5 | 200 | 1845 | 10.5 |
| 72 | 255 | 2145 | 15 |
| 64 | 255 | 3520 | 12.3 |
| 72 | 255 | 1944 | 11 |
| 65 | 255 | 2275 | 12 |
| 87 | 280 | 2610 | 16 |
| 40 | 295 | 1500 | 12 |
| 87 | 310 | 2175 | 11 |
| 87 | 320 | 2175 | 20.5 |
| 87 | 320 | 2175 | 23 |
| 76 | 330 | 2660 | 20 |
| 87 | 360 | 3045 | 35 |
| 72 | 360 | 1800 | 30 |
| 64 | 382 | 3456 | 29 |
4. Order Items of Factory price Kevlar enforced all terrain vehicle robot rubber track belt from China:
Width, pitch, length
Max. load
Speed
Special requirement
5. Our team is a professional team that focused on researching & manufacturing of all terrain tracked system, special tracked chassis, special rubber track assembly, rubber tracks, rubber track chassis for stair climbing, tracked wheelchair, robot rubber tracks and its chassis assembly, special vehicle and track system.
The above products can be used in general vehicle like ATV all-terrain vehicle, SUV/UTV, pickup truck etc, and special vehicle like light armored vehicles, special robot, agricultural machinery, rescue and relief vehicle, which go for different terrains like frozen snow, swamps, deserts, mountains, beaches and so on.
Working closely with colleges and institutes, we have strong R&D capability in developing all terrain rubber track assembly system and rubber tracked chassis which is used on different vehicles and robots. We also provide designing and fabricating service of robotic arms, claws and different kinds of related non-standard equipment.
