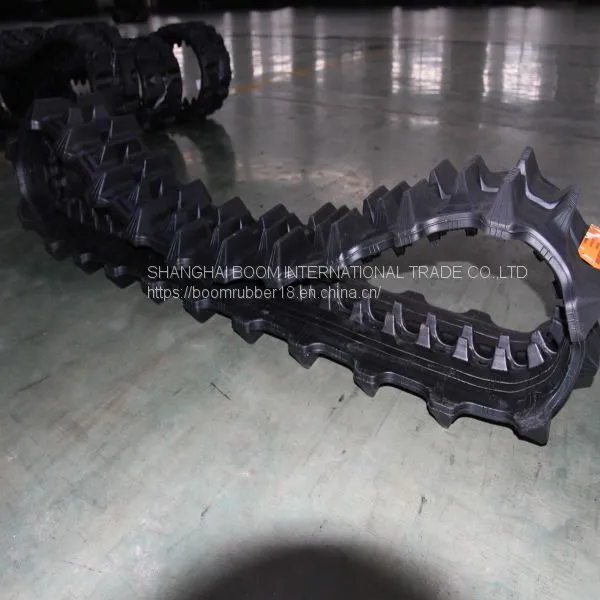

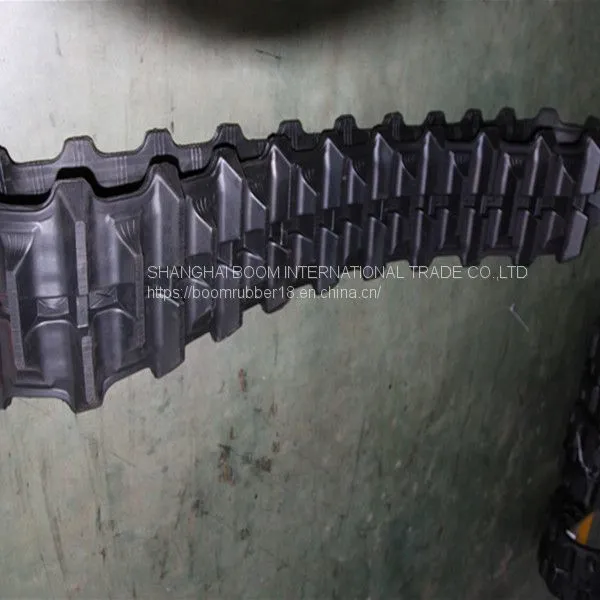

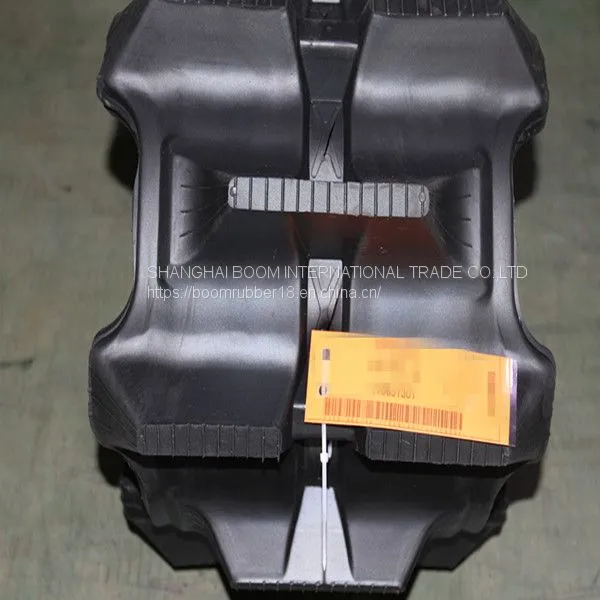

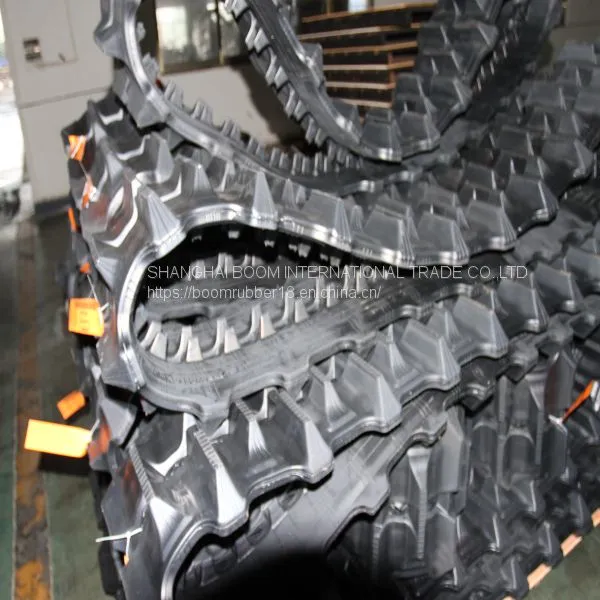

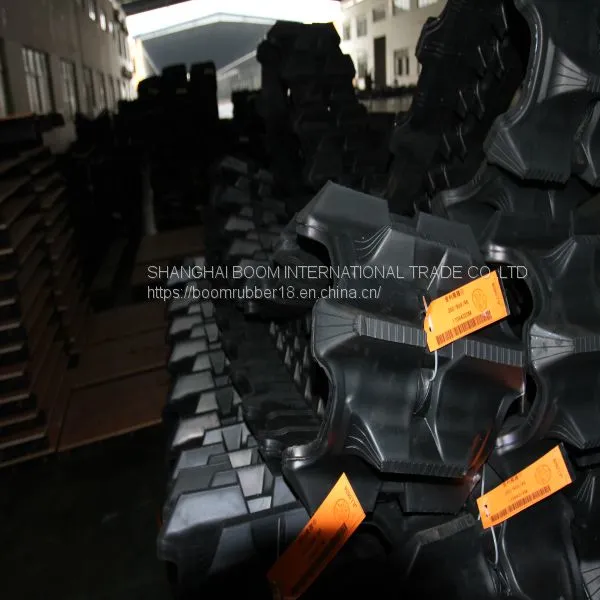

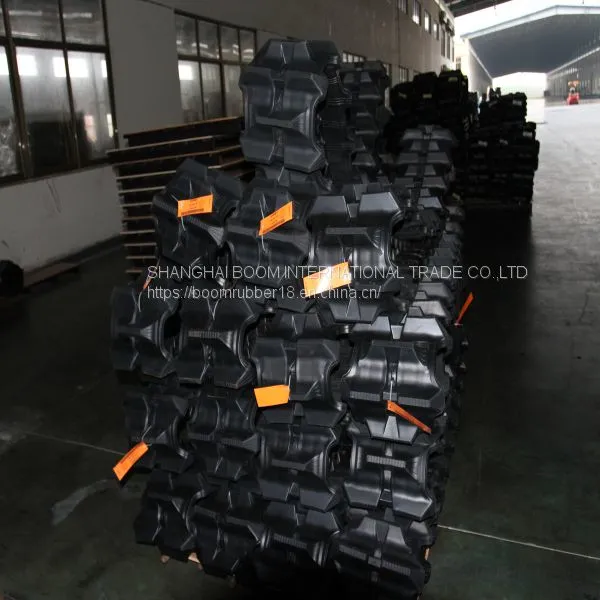

Help Center350*90*46 Agriculture Rubber-Track Customized Design, Size 350mm, 400mm, 450mm, 500mm
Related Products
-
Rubber Tracks 300*84yc*34 for Agricultural Rice Cutting MachineUS$ 130 - 130MOQ: 2 Pieces -
Rubber Tracks (330*79*34) for Ku330*79 Agricultural Track ChinaUS$ 90 - 90MOQ: 2 Pieces
-
Agricultural Machinery Track Crawler 330*79*28-43US$ 155 - 160MOQ: 2 Pieces
-
Rubber Tracks for Daetong Harvestor DSC620 (400*90*43)US$ 210 - 210MOQ: 2 Pieces
-
350*90*46 Agriculture Rubber-Track Customized Design, Size 350mm, 400mm, 450mm, 500mmUS$ 200 - 200MOQ: 2 Pieces
1,Continuous rubber track
2,Jointless structure rubber track
3,Good quality with rapid delivery
4,OEM available
Shanghai Boom International Trade Co.,Ltd.(also known as Shanghai Puyi Rubber Tracks Co.,Ltd.) is a professional manufacturer for rubber track over 9 years experience! We registered exporting company in 2013 and aimed to promote our products worldwide. Now our products have sold to more than 15 countries like USA,German, England,Russia,Ukraine,Spain,Australia, South Africa, Syria, Vietnam,India etc.
The rubber track could be used on Wheelchair,Agriculture machine such as Rice harvester, Wheat harvester,Combine harvester machine; Construction or industry machine like Excavator, Mini-excavator, Bulldozer, Dumper, Crawler loader, Crawler crane, Carrier vehicle,Swamp Truck, Amphibious Tank,Paver.Othe vehicle like Snowblower,Snowmobile,Off-road jeep, Crawler Robot etc.
1. Type of rubber tracks:
(1) Bolt on type
(2) Bolt on type with steel bottom
(3) Chain on type
(4) Clip on type
(5) Pavers rubber pads
2. The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the same weight.

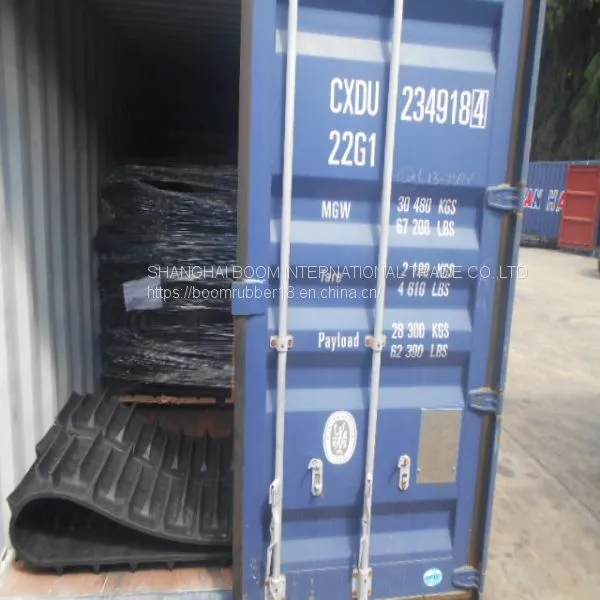

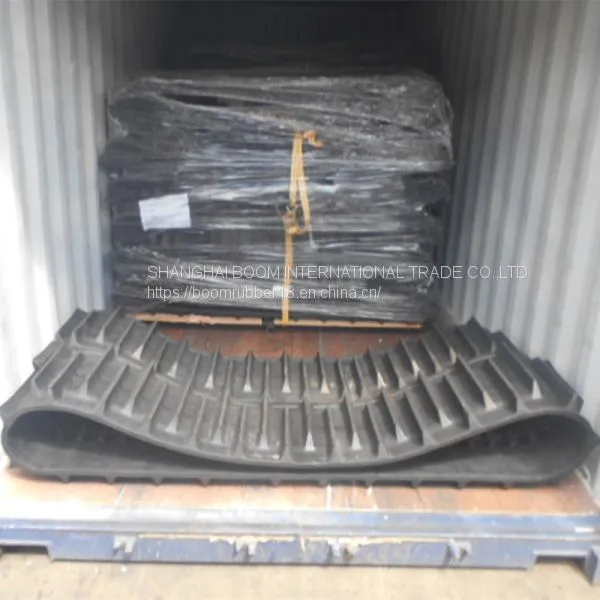

Loading rubber tracks into 20'ft container:
| Size | Weight for Each Link | Size | Weight for Each Link | Size | Weight for Each Link |
| 130*72 | 0.36 | WD300*72 | 1.459 | 400*144 | 7.75 |
| 150*60 | 0.52 | B300*84 | 2.88 | 400*144Y | 7.41 |
| 150*72 | 0.55 | T300*86 | 3.13 | 420*100 | 5.3 |
| 170*60 | 0.48 | 300*109KW | 3.38 | 450*71 | 4.45 |
| 180*60 | 0.56 | K300*109 | 3.56 | DW450*71 | 4.82 |
| 180*72 | 0.64 | 300*109N | 3.32 | 450*73.5 | 4.57 |
| 180*72K | 0.87 | 300*109W | 3.21 | 450*76 | 5.27 |
| H180*72 | 0.77 | 320*52.5 | 1.69 | 450*81.5 | 5.24 |
| 190*60 | 0.59 | 320*54 | 1.81 | 450*81N | 5.19 |
| 190*60 | 0.59 | B320*84 | 2.95 | 450*81W | 5.02 |
| 190*72 | 0.72 | B320*86 | 2.99 | 450*83.5 | 5.47 |
| 200*72 | 0.84 | B320*86SB | 2.99 | 450*83.5Y | 5.67 |
| 200*72K | 1.07 | B320*86C | 3.01 | 450*84 | 4.22 |
| 230*48 | 0.87 | B320*86Z | 3.12 | B450*86 | 4.33 |
| 230*48K | 1.06 | B320*86CM | 3.01 | B450*86SB | 4.3 |
| 230*72 | 1.09 | B320*86R | 2.99 | B450*86C | 4.31 |
| 230*72K | 1.34 | T320*86 | 3.22 | B450*86Z | 4.51 |
| 230*96 | 1.77 | T320*86MB | 3.3 | B450*86CM | 4.37 |
| 230*101 | 1.92 | T320*86SB | 3.27 | B450*86R | 4.3 |
| 250*47 | 1.11 | T320*86C | 3.25 | 450*90 | 4.07 |
| 250*48.5 | 1.13 | T320*86Z | 3.53 | KU450*90 | 3.9 |
| 250*52.5 | 1.04 | 320*90 | 2.85 | 450*110 | 6.9 |
| 250*52.5K | 1.31 | 320*100 | 2.67 | T450*100MB | 5.3 |
| 250*72 | 1.17 | 320*100W | 3.01 | T450*100 | 5.09 |
| B250*72 | 1.03 | 320*106 | 3.63 | T450*100SB | 5.16 |
| 250*96 | 2.21 | 350*52.5 | 1.85 | T450*100C | 5.2 |
| 250*109 | 2.39 | 350*54.5 | 2.31 | T450*100Z | 5.55 |
| 260*55.5 | 1.48 | 350*56 | 2.05 | 450*163 | 10.47 |
| 260*96 | 1.91 | 350*75.5 | 3.58 | 485*92W | 7.62 |
| 260*109 | 2.16 | 350*90 | 1.85 | 500*71 | 7.5 |
| 280*72 | 1.43 | 350*100 | 3.69 | 500*90 | 5.38 |
| 280*106 | 3.05 | 350*108 | 3.92 | 500*92 | 7.81 |
| 300*52.5KB | 1.67 | 350*109 | 4.12 | 500*92W | 8.6 |
| 300*52.5KW | 1.71 | 370*107 | 4.68 | 500*100 | 6.34 |
| 300*52.5N | 1.44 | 400*72.5KB | 3.44 | 500*146 | 9.97 |
| 300*52.5W | 1.56 | 400*72.5KW | 3.72 | 600*100 | 8.3 |
| JD300*52.5N | 1.54 | 400*72.5N | 3.48 | 600*125 | 10.39 |
| K300*52.5 | 1.72 | 400*72.5W | 3.85 | 650*110 | 13.34 |
| KB300*52.5N | 1.55 | 400*72.5Y | 3.62 | 650*120 | 13.75 |
| 300*53 | 1.81 | 400*74 | 3.4 | 650*125 | 15.8 |
| 300*55 | 1.88 | 400*75.5 | 4.09 | 700*100 | 10.9 |
| 300*55.5 | 1.95 | 400*86 | 4.14 | 700*125 | 14.29 |
| 300*71 | 3.31 | 400*90 | 2.22 | 750*150 | 21.34 |
| 300*72 | 1.77 | 400*107 | 4.95 | 800*125 | 19.14 |
| 400*142 | 7.12 | K800*150 | 21.55 | ||
| ASV TRACK | M800*150 | 20.05 | |||
| 280*102*37 | 1.36 | PAVER TRACK | 900*150 | 31.23 | |
| 380*102*42 | 1.9 | 356*152.4*46 | 4.81 | 1000*150 | 33.3 |
| 460*102*51 | 2.41 | 483*152.4*52 | 6.07 | ||
| 460*102*56 | 2.49 | 460*225*36 | 7.79 | SPECIAL TRACK | |
| 460*102C*51 | 2.44 | 6"*3.5"*28 | 0.41 | ||
| 510*102*51 | 2.6 | 10"*3.5"*28 | 0.51 |
