Rubber Track 400*72.5kb *Links for Constraction Machine, Tractor

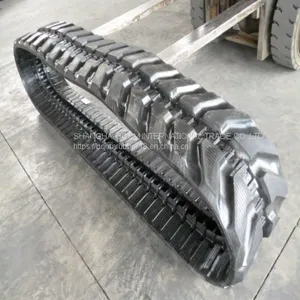

Rubber Track 400*72.5kb *Links for Constraction Machine, Tractor thumbnail-1
Rubber Track 400*72.5kb *Links for Constraction Machine, Tractor photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
BM
Place of Origin:
China
Model Number:
400*72.5KB
Contact Supplier Request Quote Chat Now
Shanghai Boom International Trade Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BM
Place of Origin China
Model Number 400*72.5KB

1.Continuous rubber track
2.Conventional type or interchangeable type rubber track
3.Warranty: guarantee one year under normal use
4. rubber tracks for trucks for japanese market
5.excellent quality and low price
6.strong resistance to wear
7.warranty:12 months
8.sizes from 150mm-900mm
9.Products based on GB/T20786-2006
10.Application: mini-excavator,loading machine,bulldozer, dumper, crawler loader, crawler crane, crawler,carrier vehicle, agriculture machinery,snow rubber track,paver and other special machine.
VOLVO. CATERPILLAR. KOMATSU. HITACHI. KATO. SUMITOMO. KOBELCO. CASE. JCB. LIEBHERR. KUBOTA. TAKEUCHI. IHISCE. TEREX. LOVOL. SANY. LIUGONG. XCMG. XGMA. ZOOMLION. SUNWARD.

The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
 Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
 Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
Rubber Tracks for Construction Machinery

Track size (Width X Pitch) Links Inner guide width (A) Outer guide width (B) Inner width height (C) Outer width height (D) Lug ness (F) Guiding Machine Weight (kg)
150x72 29-40 24 64 23 24 15 A2 500
180x60 30~40 24 64 28 27 15 A1 500
180x72 28~58 24 64 28 27 17 A2 700
180x72K 30~40 22 62 22 19.5 16 B2 700
200x72 34~47 29 78 28 31 15 A2 1200
200x72K 37~47 24 68 29 29 15 A2 1200
230x48 60~84 25 70 24.5 24.5 17.5 B1 1500
230x48HI 70 25 70 24.5 25 18 B1 1500
230x72Y 36~56 22 64 31.5 29 15 A2 1400
230x72K   36~56 22 68 30 30 15 A2 1400
230x72 42~56 25 73 30 28 17 A2 1400
230x96 30~48 28 74 22 20 19 B1 1500
250x47 84 25 66 24 20 21 B2 1500
250x48K 82 28 67 24 20 14 B1 1500
250x48.5 84 24 68 22 19 18 B2 1500
250x52.5K 72~78 32 82 23 21 21 B2 1550
250x72 47~57 25 74 30 28 21 A2 1600
260x55.5 78 32 78 22 26.5 19 B2 2000
260x96 35-38 27 76 21 20 22 B2 2100
260x109 35~39 32 86 26 29 16 B1 2500
280x72 45~64 25 78 30 24 22 A2 2600
280x106 35~42 32 80 29 28 19 B2 3000
300x52.5K 70~84 32 88 27 26 22 B2 3500
300x52.5N 72~98 32 82 21 15 21 B1 3500
300x52.5W 72~92 42 92 22.5 21 21 B1 3500
300x52.5KW 72-92 42 88 24 22 18.5 C1 3500
300x53 80~84 34 88 25 19.5 21 B2 4000
300x55 70~86 32 82 26 26 21 B1 4000
300x55.5 76~82 32 81 23 26 17 B2 3500
300x109W 35~44 43 96 26.5 30 22 B2 3500
300x109N 35~42 30 78 27 26 22 B1 3500
300x109K 37~41 30 86 25 28 20 B1 3500
320x84C 46~53 48 102 45 33 23 C2 3850
320x84MB 46~53 48 100 45 33 25 C2 3850
320x86C 46~52 40 84 40 26 27 C2 3000
320x86MB 46~60 40 84 40 26 27 C2 3000
320x86SB 46~60 40 84 40 26 27 C2 3000
320x90Y 48~56 35 85 50 35 25 A2 3200
320x100W 38~54 41 82 33 27 23 A2 3500
320x106 39~43 34 82 27 26 20 B2 4000
350x52.5 70~92 43 90 24 20 23 B1 3500
350x54.5 80~86 42 92 24.5 22.5 23 B2 3500
350x56R 84 41 88 26 26 22 B1 3500
350x75.5 74 42 98 22 24 17 C2 3500
Track size (Width X Pitch) Links Inner guide width (A) Outer guide width (B) Inner width height (C) Outer width height (D) Lug ness (F) Guiding Machine Weight (kg)
370x107 39~41 40 92 26 26 24 B2 4000
380x86MB 50~55 38 88 44 32 26 C2 3000
400x72.5K 68~76 40 96 29 26 24 B2 6000
400x72.5N 70~80 41 96 26 24 24 B1 6000
400x72.5R 74 52 106 27 24 24 B2 6000
400x72.5W 68~92 52 106 27 25 25 B1 6000
400x72.5Y 72~74 32 85 28.5 24 23 C2 6000
400x75.5 74 42 98 24 24 25 C2 4500
400x107 46 40 92 29 28 24 C2 4800
420x100 50~58 52 98 51 33 22 A2 5000
450x71 76~88 45 118 29 17 28 B1 7000
450x73.5 76-84 46 120 31.5 31.5 32 B1 6500
450x76K 80~84 48 117 29 29 27 B1 7300
450x81N 72~80 39 118 26 23 27 B1 7300
450x81W 72~78 65 142 31 31 27 B1 7300
150x83.5K 72~74 44 116 26 23 30 B1 8000
450x83.5Y 72~74 42 110 32 30 26 B2 8000
450x83.5R 74 44 112 25 24 24 B2 8000
450x84C 53~56 46 102 47 32 27 B2 7000
450x84SB 56 46 102 46 33 26 B2 7000
450x84MB 46~57 46 102 46 34 29 B2 7000
450x86C 50~63 50 98 47 35 24 A2 6000
450x86MB 55~56 50 98 47 35 24 A2 6000
450x90 60 37 92 47 34 30 A2 7000
450x100C 48~65 48 104 51 40 24 C2 8000
450x100SB 50 48 106   52 40 26 C2 8000
450x100MB 48~50 48 106 52.5 39.5 27 C2 8000
485x92 58~76 68 138 34 33 38 A2 8000
500x90 78 50 102 49 35 29 A2 12000
500x92W 78~84 65 156 32.5 32.5 27 B1 12000
600x100 80-88 45 115 60 51
A1 12000
650x150 80\98 59 166 68 58
A1 10000
700x100 80\98 44 116 76 56
A1 19200
750x150 66 60 140 75 56
A1 15000
800x150 56\67\71 80 189 108 78
A1 14800

,such as excavator,bulldozer,dumper,loader
4. ASV Rubber Tracks

Track size (Width X Pitch) Links Inner guide width (A) Outer guide width (B) Inner width height (C) Outer width height (D) Lug ness (F) Guiding Machine Weight (kg)
153x89 28
64
31


381x101.6 41\42\51
240
46

4600
400x90 32-48
140
30

2000
457x101.6 50-56
278
45

6000
