Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > 9V1A AC Adaptors 9W Power Supply With 100-240V Input for Camera CCTV/LED Light Strips

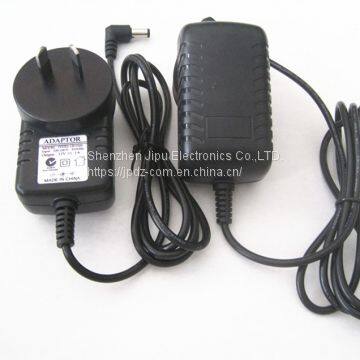

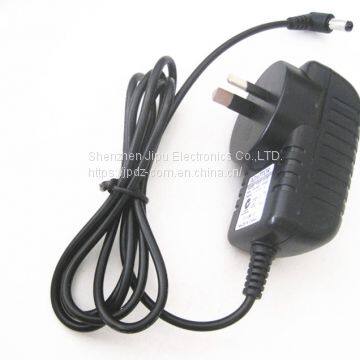

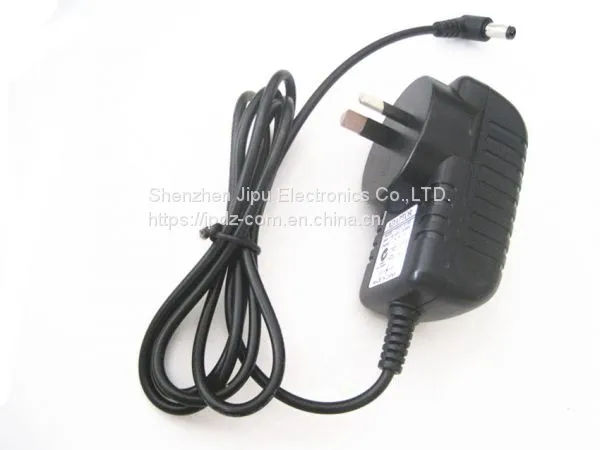

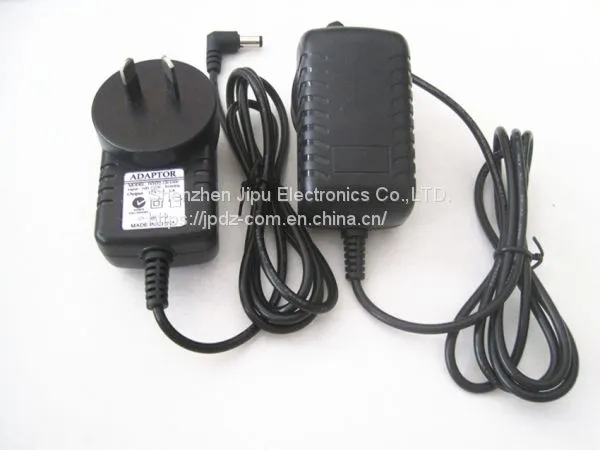

9V1A AC Adaptors 9W Power Supply With 100-240V Input for Camera CCTV/LED Light Strips

US$ 2.14 - 2.35 MOQ: 500 Pieces

Key Specifications

Place of Origin:

China

Model Number:

JYH32-0901000

Usage:

Game Player

Shenzhen Jipu Electronics Co.,LTD.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

20 days

Place of Origin China

Model Number JYH32-0901000

Usage Game Player

Connection Plug In

Output Type DC

Feature:

· Universal AC input/full range

· 4-hour full aging testing

· Cost effective and reliable

· Level V compliant and class 2

· UL/FCC/GS/TUV/CE/SAA fully safety approved

· Fully enclosed plastic case

· MTBF >50,000 hours

· Erp step2, CEC, MEPS compliant

· 2 years warranty

Specification:
Model		JYH32-0901000
Output	Voltage	9V
	Current	1.0A
	Power (max.)	9W
	Ripple & Noise (max.)	100mVp-p
	Efficiency	78%
	Voltage Tolerance	±5.0%
	Line Regulation	±1.0%
	Load Regultaion	±1.0%
	Setup, Rise Time	100ms / 115VAC at full load
	Hold Up Time	30ms/115VAC at full load
Input	VOLTAGE RANGE	90 ~ 264VAC
	Frequency Range	47 ~ 63Hz
	AC Current(max.)	0.3A/115VAC 0.1A/230VAC
	Inrush Current(max.)	COLD START 30A/115VAC 60A/230VAC
Protection	Over Current	120% ~ 150% type; TYPE: cut output reset: automatic recovery
	Over Voltage	120% ~ 150% type; TYPE: cut output reset: automatic recovery
	Short Circuit	TYPE: cut output reset: automatic recovery
Environment	Working Temp.	0℃ ~ 40℃
	Working Humidity	20% ~ 80% R.H non-condensing
	Storage Temp., Humidity	-20℃ ~ 70℃ 20% ~ 90% R.H
Safety &EMC	Dielectric Streng Th Hi-Pot	Primary to secondary:3000Vac 10mA; Primary to shell:1500Vac 10mA; shell to secondary:1500Vac 10mA
	Insulation Resistance	Primary to secondary, Primary to shell, shell to secondary; >100M Ohms / 500VDC
	Leakage Current	0.25mA / 240VAC
	Safety Standards	UL GS SAA KCC BSI PSE CCC
	EMC Standards	CE EN55022B FCC
	Green Mode	Noload Power Consumption Less Than 0.3W
Others	MTBF	50000hrs min. MIL-HDBK-217F (25 )
	Dimensions	784532mm (LWH)
	Weight(Net.)	165g/pcs
