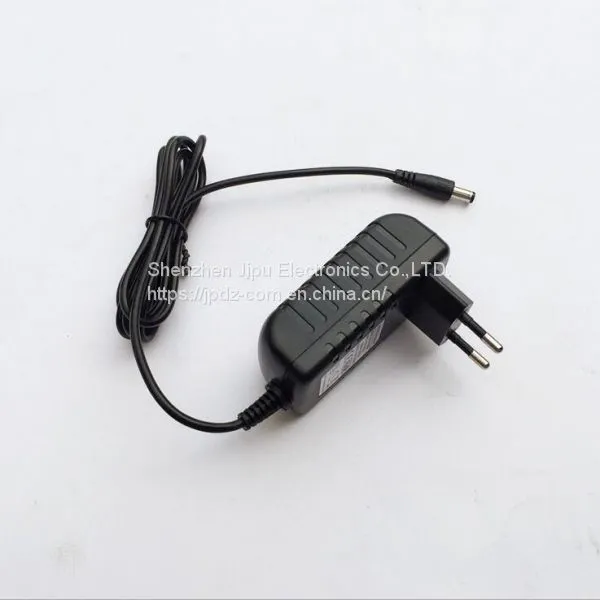

9V2A Power AC Adaptor With UL Listed for LED Lighting/LCD Monitor/Game Player

US$ 3.5 - 3.85 MOQ: 500 Pieces

Key Specifications

Place of Origin:

China

Model Number:

JYH32-0902000

Connection:

Plug In

Shenzhen Jipu Electronics Co.,LTD.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

15 days

Place of Origin China

Model Number JYH32-0902000

Connection Plug In

Output Type DC

Feature:

· Universal AC input/full range

· 4-hour full aging testing

· Cost effective and reliable

· Level V compliant and class 2

· UL/FCC/GS/TUV/CE/PSE/KC/SAA fully safety approved

· Fully enclosed plastic case

· MTBF >50,000 hours

· Erp step2, CEC, MEPS compliant

· 2 years warranty

MODEL		JYH32-xxxyyyy	JYH32-xxxyyyy	JYH32-xxxyyyy	JYH32-xxxyyy
OUTPUT	VOLTAGE	5.0-8.9V	9.0-13.5V	13.6-17.9V	18.0-24.0V
	CURRENT	0 - 2.5A	0 – 1.3A	0 – 0.8A	0 – 0.6A
	POWER (max.)	18W	18W	18W	18W
	RIPPLE & NOISE (max.)	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	EFFICIENCY	78%	78%	78%	78%
	VOLTAGE TOLERANCE	±5.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±1.0%
	SETUP, RISE TIME（	100ms / 115VAC at full load
	HOLD UP TIME	30ms/115VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC
	FREQUENCY RANGE	47 ~ 63Hz
	AC CURREN (max.)	0.3A/115VAC 0.2A/230VAC
	INRUSH CURRENT(max.)	COLD START 30A/115VAC 60A/230VAC
PROTECTION	OVER CURRENT	120% ~ 150% type; TYPE: cut output reset: automatic recovery
	OVER VOITAGE	120% ~ 150% type; TYPE: cut output reset: automatic recovery
	SHORT CIRCUIT	TYPE: cut output reset: automatic recovery
ENVIRONMENT	WORKING TEMP.	0℃ ~ 40℃
	WORKING HUMIDITY	20% ~ 80% R.H non-condensing
	STORAGE TEMP., HUMIDITY	-20℃ ~ 70℃ 20% ~ 90% R.H
SAFETY & EMC	DIELECTRIC STRENGTH Hi-Pot	Primary to secondary:3000Vac 10mA; Primary to shell:1500Vac 10mA; shell to secondary:1500Vac 10mA
	IUSULATION RESISTANCE	Primary to secondary, Primary to shell, shell to secondary; >100M Ohms / 500VDC
	LEAKAGE CURRENT	0.25mA / 240VAC
	SAFETY STANDARDS	UL GS SAA KCC BSI PSE CCC
	EMC STANDARDS	CE EN55022B FCC
	GREEN MODE	Noload Power Consumption Less Than 0.3W
OTHERS	MTBF	50000hrs min. MIL-HDBK-217F (25 )
	DIMENSION	714231mm&746030 (LWH)
	WEIGHT	100g/pcs
