2018 Hot Sell Adjustable Brass Water Pressure Regulator With Gauges
Description 2018 Hot Sell Adjustable Brass Water Pressure Regulator With Gauges
SLK-TB series back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

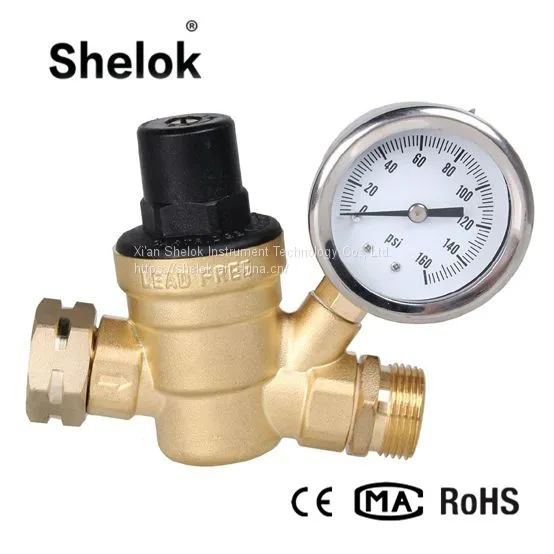

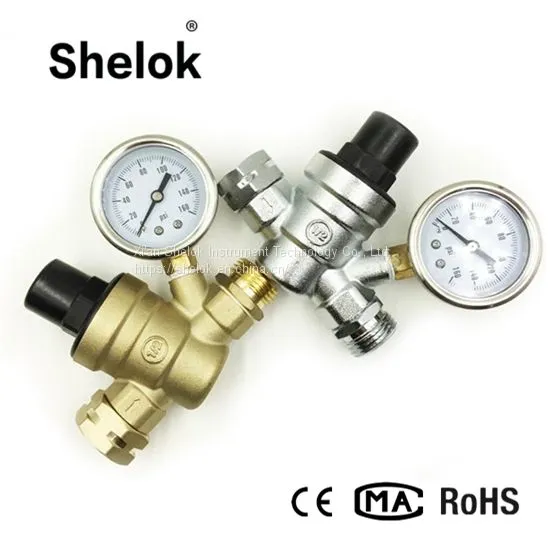

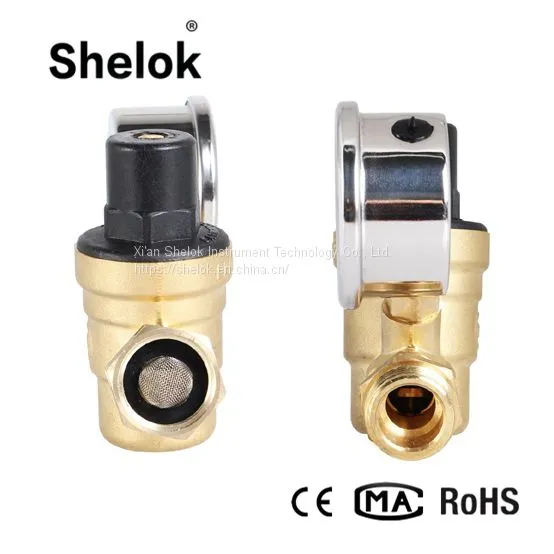

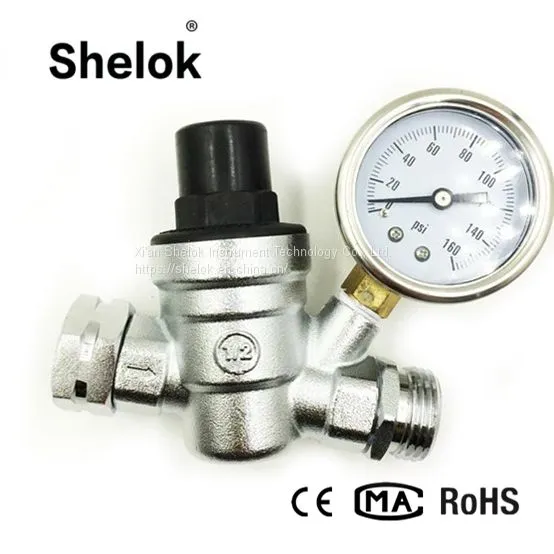

Detailed Images 2018 Hot Sell Adjustable Brass Water Pressure Regulator With Gauges
Specification 2018 Hot Sell Adjustable Brass Water Pressure Regulator With Gauges
2018 Hot Sell Adjustable Brass Water Pressure Regulator With Gauges | |
Material |
Lead Free Brass/Copper |
Medium |
Water, Gas, Oil |
Specification |
DN 20 |
Surface Treatment |
Chrome Finished, Nickel Plated, Brass Finished |
Working Temperature |
-10℃≤ t ≤120℃ |
Nominal Pressure |
2.5Mpa, 2.0Mpa, 1.6Mpa |
Connection Type |
3/4, 1/2, 1/4, or other |
Thread |
ISO07 |
Pressure Testing |
ISO5208 |
Component And Material | |
Body |
Brass |
Spring |
PVC |
Seal Gasket |
PVC |
Piston |
PVC or Brass |
Bonnet |
PVC |
Filter |
Brass |
Features SS Adjustable Gas Back Pressure Regulator, Valves
Applications 2018 Hot Sell Adjustable Brass Water Pressure Regulator With Gauges
* Laboratory
* Gas chromatograph
* Gas lasers
* Gas bus
* Petrochemical industry
* Test Equipment
Selection 2018 Hot Sell Adjustable Brass Water Pressure Regulator With Gauges
Model |
Valve material |
Inlet pressure |
Pressure gauge |
Inlet port |
Outlet port |
SLK-TB |
Lead Free Brass |
0-500psig 0-100psig 0-1500psig 0-2500psig 0-3000psig 0-6000psig |
l With gauge (mpa) l With gauge (psig/bar) l Without gauge |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting 1/2'' fitting Or custom |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting 1/2'' fitting Or custom |

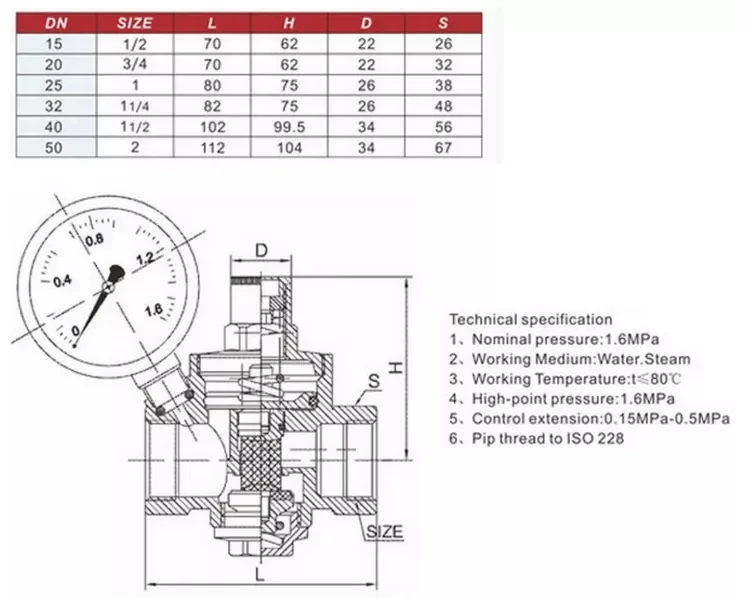

Outline drawing 2018 Hot Sell Adjustable Brass Water Pressure Regulator With Gauges
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
