Best supplier of two stage gas system pressure regulator
Description
YR33 Double stage pure gas pressure regulator Series stainless steel pressure regulator adopts double stage diaphragm decompression structure, outlet pressure is stable, suitable for high purity gas, standard gas, corrosive gas, and other gas.

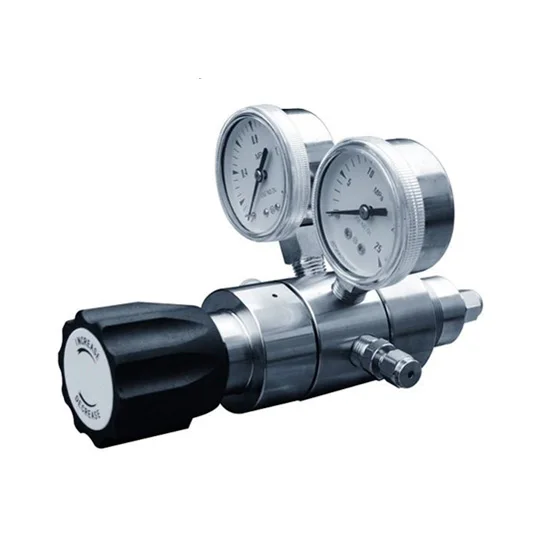

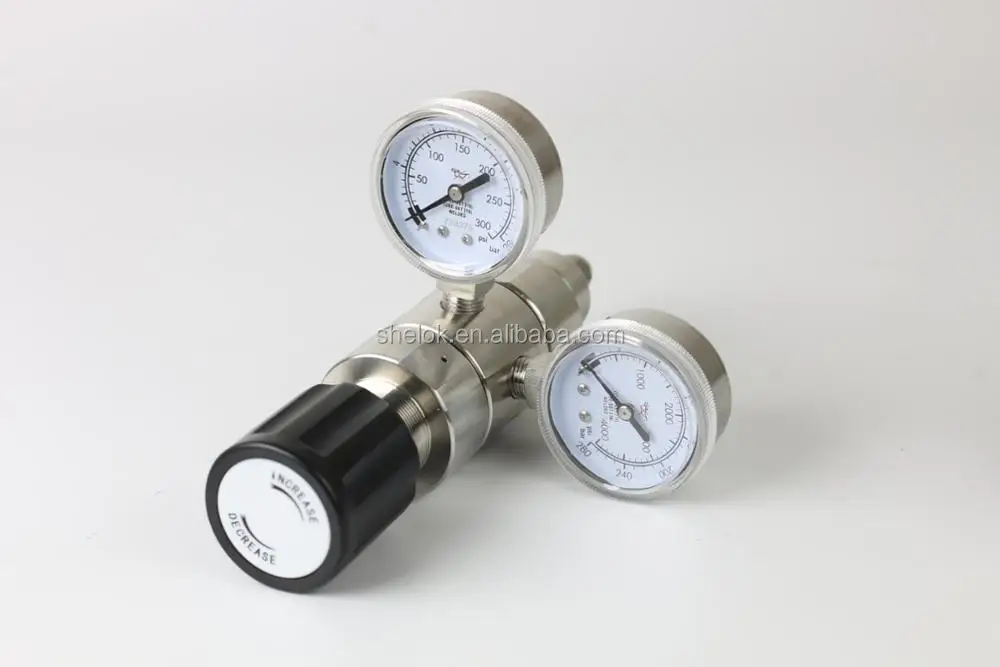

Detailed Images
Specification
Best supplier of two stage gas system pressure regulator | |
Max inlet pressure |
6000psig |
Outlet pressure |
0-2500psig |
Safety testing pressure |
1.5 times of maximum inlet pressure |
Working temperature |
40℃~ 74℃(-40°F ~ 165°F) |
Leakage rate |
2*10-8 atm cc/sec He |
CV value |
0.02, 0.06, 0.08, 0.2 |
Weight |
About 1.55kg |
Features
Double stage decompression structure
Valve body and diaphragm adopt hard seal form
The internal structure is easy to clean
Inside is equipped with filter
Can be panel mounted
Can choose needle valve, diaphragm valve for outlet
Applications
Laboratory,
Gas chromatograph,
Gas lasers,
Gas bus,
Petrochemical industry,
Test Equipment
Material
Valve body: 316L
Top cover: 316L
Diaphragm: 316L
Filter: 316L (10μm)
Valve seat: PCTFE , PTFE, Vespel
Spring: 316L
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
