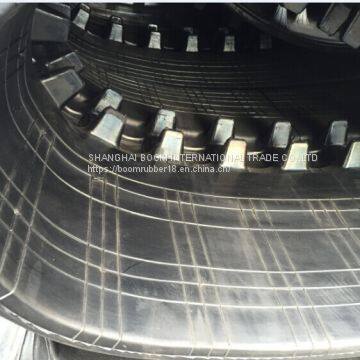

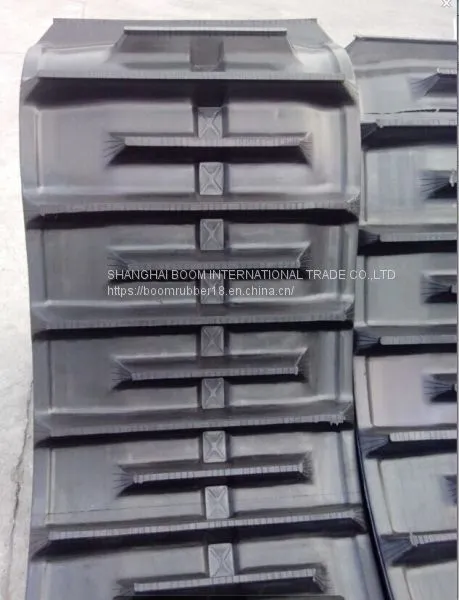

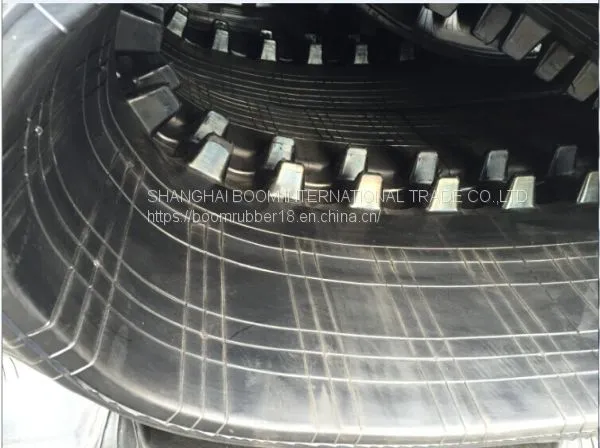

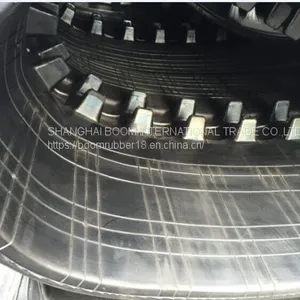

550*90 Rubber Tracks Customized Specification, Agriculture Machinery Rubber Crawler

550*90 Rubber Tracks Customized Specification, Agriculture Machinery Rubber Crawler thumbnail-1
550*90 Rubber Tracks Customized Specification, Agriculture Machinery Rubber Crawler thumbnail-2
550*90 Rubber Tracks Customized Specification, Agriculture Machinery Rubber Crawler photo-1
550*90 Rubber Tracks Customized Specification, Agriculture Machinery Rubber Crawler photo-2
US$ 418 - 418 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
BM
Place of Origin:
China
Model Number:
DC550*90*56
Contact Supplier Request Quote Chat Now
Shanghai Boom International Trade Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BM
Place of Origin China
Model Number DC550*90*56

550*90 rubber tracks customized specification, Agriculture machinery rubber crawler

We are a professional supplier for rubber track. They could be used on Wheelchair,Agriculture machine such as Rice harvester, Wheat harvester,Combine harvester machine; Construction machine like Excavator, Mini-excavator, Bulldozer, Dumper, Crawler loader, Crawler crane, Carrier vehicle,Swamp Truck, Amphibious Tank,Paver.Othe vehicle like Snowblower,Snowmobile,Off-road jeep, Crawler Robot etc.


1. The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the same weight.


2. Rubber Tracks' Packages:

3. Parameters:

Size Weight for Each Link Size Weight for Each Link Size Weight for Each Link
130*72 0.36 WD300*72 1.459 400*144 7.75
150*60 0.52 B300*84 2.88 400*144Y 7.41
150*72 0.55 T300*86 3.13 420*100 5.3
170*60 0.48 300*109KW 3.38 450*71 4.45
180*60 0.56 K300*109 3.56 DW450*71 4.82
180*72 0.64 300*109N 3.32 450*73.5 4.57
180*72K 0.87 300*109W 3.21 450*76 5.27
H180*72 0.77 320*52.5 1.69 450*81.5 5.24
190*60 0.59 320*54 1.81 450*81N 5.19
190*60 0.59 B320*84 2.95 450*81W 5.02
190*72 0.72 B320*86 2.99 450*83.5 5.47
200*72 0.84 B320*86SB 2.99 450*83.5Y 5.67
200*72K 1.07 B320*86C 3.01 450*84 4.22
230*48 0.87 B320*86Z 3.12 B450*86 4.33
230*48K 1.06 B320*86CM 3.01 B450*86SB 4.3
230*72 1.09 B320*86R 2.99 B450*86C 4.31
230*72K 1.34 T320*86 3.22 B450*86Z 4.51
230*96 1.77 T320*86MB 3.3 B450*86CM 4.37
230*101 1.92 T320*86SB 3.27 B450*86R 4.3
250*47 1.11 T320*86C 3.25 450*90 4.07
250*48.5 1.13 T320*86Z 3.53 KU450*90 3.9
250*52.5 1.04 320*90 2.85 450*110 6.9
250*52.5K 1.31 320*100 2.67 T450*100MB 5.3
250*72 1.17 320*100W 3.01 T450*100 5.09
B250*72 1.03 320*106 3.63 T450*100SB 5.16
250*96 2.21 350*52.5 1.85 T450*100C 5.2
250*109 2.39 350*54.5 2.31 T450*100Z 5.55
260*55.5 1.48 350*56 2.05 450*163 10.47
260*96 1.91 350*75.5 3.58 485*92W 7.62
260*109 2.16 350*90 1.85 500*71 7.5
280*72 1.43 350*100 3.69 500*90 5.38
280*106 3.05 350*108 3.92 500*92 7.81
300*52.5KB 1.67 350*109 4.12 500*92W 8.6
300*52.5KW 1.71 370*107 4.68 500*100 6.34
300*52.5N 1.44 400*72.5KB 3.44 500*146 9.97
300*52.5W 1.56 400*72.5KW 3.72 600*100 8.3
JD300*52.5N 1.54 400*72.5N 3.48 600*125 10.39
K300*52.5 1.72 400*72.5W 3.85 650*110 13.34
KB300*52.5N 1.55 400*72.5Y 3.62 650*120 13.75
300*53 1.81 400*74 3.4 650*125 15.8
300*55 1.88 400*75.5 4.09 700*100 10.9
300*55.5 1.95 400*86 4.14 700*125 14.29
300*71 3.31 400*90 2.22 750*150 21.34
300*72 1.77 400*107 4.95 800*125 19.14


400*142 7.12 K800*150 21.55
ASV TRACK


M800*150 20.05
280*102*37 1.36 PAVER TRACK
900*150 31.23
380*102*42 1.9 356*152.4*46 4.81 1000*150 33.3
460*102*51 2.41 483*152.4*52 6.07

460*102*56 2.49 460*225*36 7.79 SPECIAL TRACK
460*102C*51 2.44

6"*3.5"*28 0.41
510*102*51 2.6

10"*3.5"*28 0.51


Product Tags: Rubber Track , Agricultural Machinery Parts , Spare Parts for Agricultural
