Dual-stage Natural Air Gas Pressure Regulator

Xi'an Yunyi Instrument Co., Ltd.
Dual-stage Natural Air Gas Pressure Regulator thumbnail-1
Dual-stage Natural Air Gas Pressure Regulator thumbnail-2
Dual-stage Natural Air Gas Pressure Regulator thumbnail-3
Dual-stage Natural Air Gas Pressure Regulator thumbnail-4
Dual-stage Natural Air Gas Pressure Regulator photo-1

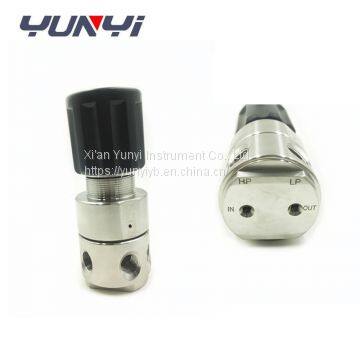

Dual-stage Natural Air Gas Pressure Regulator photo-2

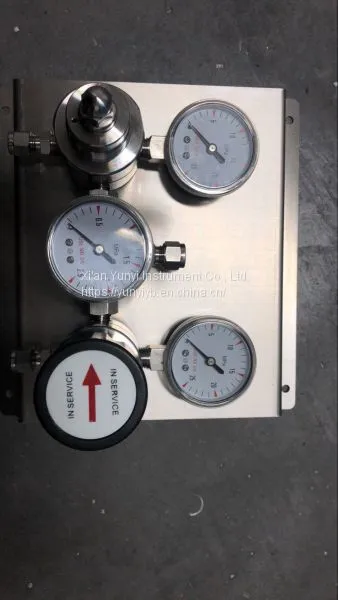

Dual-stage Natural Air Gas Pressure Regulator photo-3

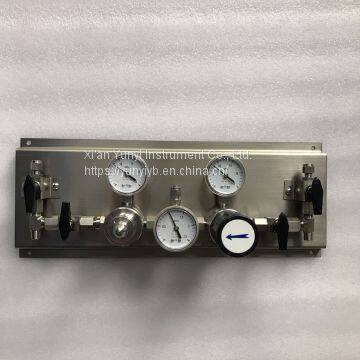

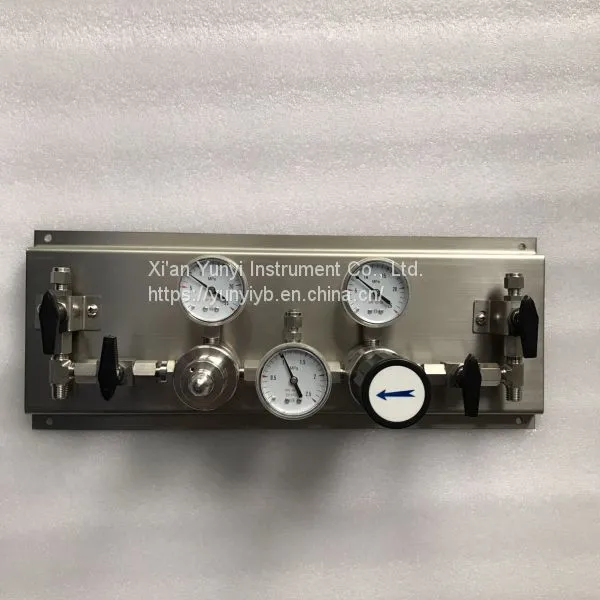

Dual-stage Natural Air Gas Pressure Regulator photo-4
US$ 150 - 270 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yunyi
Place of Origin:
China
Model Number:
YR31/32
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
china
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yunyi
Place of Origin China
Model Number YR31/32

low air natural gas back pressure regulator

Description back pressure regulator

It's a normally-closed valve installed at the END of a piping system to provide an obstruction to flow and thereby regulate upstream (back) pressure.

The back pressure regulator is called upon to provide pressure in order to draw fluid off the system.

Detailed Images  back pressure regulator

 low air natural gas back pressure regulatorlow air natural gas back pressure regulatorlow air natural gas back pressure regulator

Specification back pressure regulator

Material316 stainless steel
Max inlet pressure6000psi(413.7bar)
Outlet pressure range0 to 2500psi(172.4bar)
Discharge coefficient(Cv)0.025  0.06(standard) 0.2  0.5
Weight1.55kg
Max using temperature

℃(℉):Teflon:66(150) PCTFE:80(175) PEEK:

   260 (500).

Max inlet pressurepsi(bar ):Teflon:3600(248.2)  PCTFE:6000(413.7) PEEK:3  600(248.2).

Features  back pressure regulator

1. Light weight, small occupation space for installation, can meet a variety of gas or liquid applicatios.

2. The design of piston structure is compact.

3. Proper material adopts 316L stainless steel.

4. Installed with plate can be chosen.

5. Can be equipped with 20um filter at the entrance.

6.Pls make sure the using temperature, pressure,medium before choosing the product.

7. All of the 316L stainless steel meets the ASTM standard.

8.All of the Teflon,PCTFE,PEEK,Viton sealing material adopts imported bar material for precision machining.

Applications back pressure regulator

Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment

Selection Guide  back pressure regulator





Related products  back pressure regulator

low air natural gas back pressure regulatorlow air natural gas back pressure regulator



Company Information back pressure regulator

low air natural gas back pressure regulator

 low air natural gas back pressure regulator
