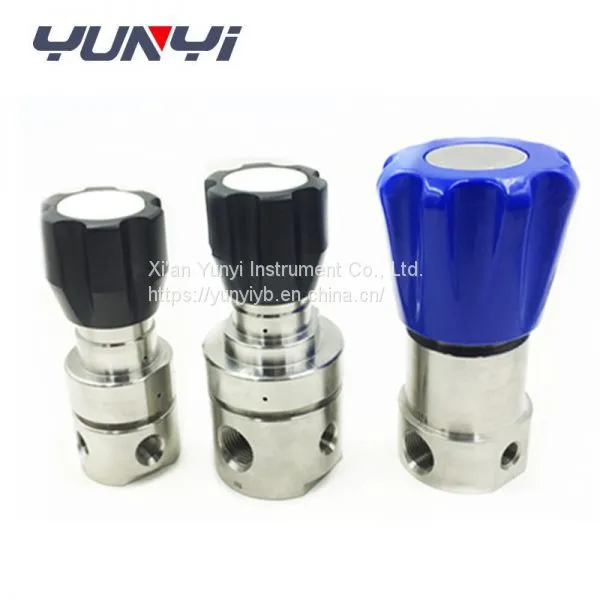

Gas Regulator Valve Regulator Valve Pressure Reducing Valve Gas Regulator Air Regulator photo-2
Gas Regulator Valve Regulator Valve Pressure Reducing Valve Gas Regulator Air Regulator photo-3
US$ 135 - 270 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yunyi
Place of Origin:
China
Model Number:
YR31/32
Contact Supplier Request Quote Chat Now
Xi'an Yunyi Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
china
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yunyi
Place of Origin China
Model Number YR31/32

low air natural gas back pressure regulator

Description gas regulator valve

YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable for high purity gas, standard gas, corrosive gas, and other gas.

Detailed Images gas regulator valve

 low air natural gas back pressure regulatorlow air natural gas back pressure regulatorlow air natural gas back pressure regulator

Specification gas regulator valve

Design features

· Double stage decompression structure



· Valve body and diaphragm adopt hard seal form



· The internal structure is easy to clean



· Inside is equipped with filter



· Can be panel mounted



· Can choose needle valve, diaphragm valve for outlet



Material



· Valve body: 316L



· Top cover: 316L



· Diaphragm: 316L



· Filter: 316L (10μm)



· Valve seat: PCTFE , PTFE, Vespel



· Spring: 316L



Basic parameters



Max inlet pressure: 3000psi, 6000psig



Outlet pressure: 0-250psig, 0-500psig, 0-1500psig, 0-3000psig. Safety testing pressure: 1.5 times of maximum inlet pressure





Working temperature: -23℃~ 74℃（-10°F ~ 165°F） Leakage rate: 2*10-8 atm cc/sec He

CV value: 0.02, 0.06, 0.08, 0.2



Weight: About 1.5kg


Selection Guide gas regulator valve





Related products gas regulator valve

low air natural gas back pressure regulatorlow air natural gas back pressure regulator



Company Information gas regulator valve

low air natural gas back pressure regulator

 low air natural gas back pressure regulator


Product Tags: gas regulator valve , pressure reducing valve , back pressure regulator
