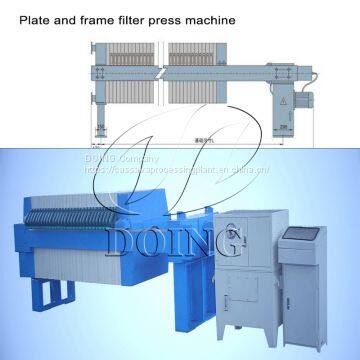

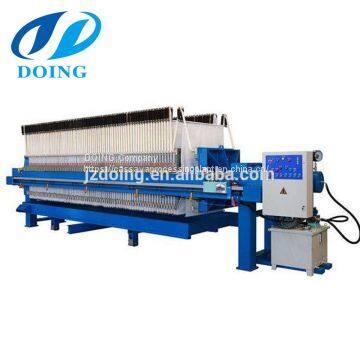

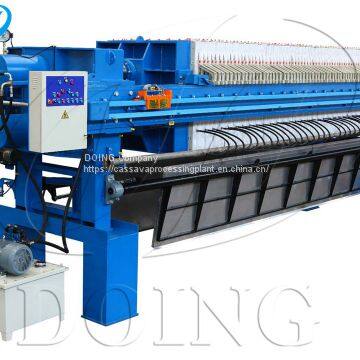

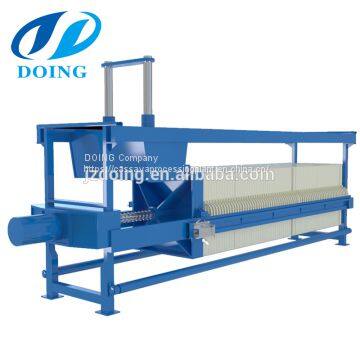

Filter press machine
Filter press machine is dewatering machine which utilize pressure to remove the liquid from a liquid-solid slurry. A small filter press is the most fundamental design, this type of filter press machine consists of many plates and frames assembled alternately with the supports of a pair of rails. When the separating chamber is full, the filtration process is stopped as the optimum pressure difference is reached. Filter cake accumulation occurs at the hollow plate frame, then being separated at the filter plates by pulling the plate and frame filter press apart. The solids remain in the void between the plates, until the plates discharge the filtered solids.
Technical Parameters of filter press machine:
Model | Filter area (m²) | Plate size (mm) | Cake thickness (mm) | Filter chamber volume(L) | Plate No.(pcs) | Filtration Pressure (MPa) | Power (kW) | Weight (kg) |
G30 | 30 | 870×870 | Model | 498 | 23 | ≥0.8 | 2.2 | 3046 |
G40 | 40 | 623 | 29 | 3593 | ||||
G50 | 50 | 789 | 37 | 4057 | ||||
G50 | 50 | 1000×1000 | 776 | 27 |
4 | 4352 | ||
G60 | 60 | 943 | 33 | 4480 | ||||
G70 | 70 | 1109 | 39 | 5263 |
This kind of filter press machine is used for the solid-liquid separation of all kinds of suspension, widely applied to wine, grape. food, environmental protection, light industry, medicine, chemical industry, metallurgy, petroleum industry, etc. Especially suitable for the fine filter and sterile filtration of large quantities of beer, liquor, wine, edible oil and other liquid drink.
Features of filter press machine:
1.Fully Automatic, helping you reducing the labor intensity
2.Filter press can be produced as your demand
3.Large production capacity, small filter cake and high output.
4. Provide training of operational technicians for you
