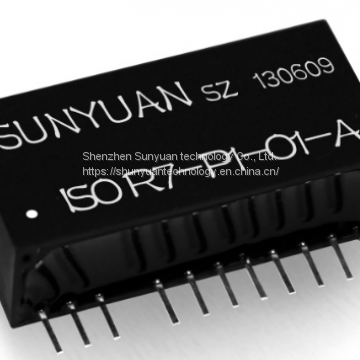

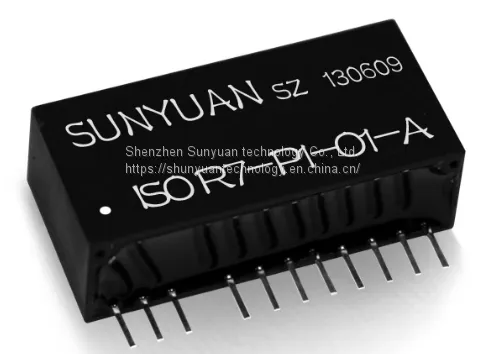

Potentiometer/Sensor Resistance/Electrical Ruler Signal to 4-20mA/0-5V/0-10V Transmitter
Characteristics:
Resistance, potentiomerter, electrical ruler, position sensor signal input
Accuracy Grade: (Non-isolation)0.1, (Isolation)0.2
Internally installed linear processing and long-line compensation circuit(non-linearity<0.05%)
Auxiliary power, signal input and output three port isolation: 3000V DC
Auxiliary power supply: 5V/12V/15V or 24V DC Single supply.
Input potentiometer signal: 0-50Ω /0-500Ω /0-2KΩ /0-10KΩ Output standard voltage signal: 0-2.5V/0-5V/0-10V/1-5V/ Ouput Standard current signal: 0-10mA/0-20mA/4-20mA.
IC type, electrical ruler embedded, Water proof case and DIN35 Din-rail install method.
Industrial grade temperature range: - 40 º C~ + 85 º C.
Applications:
Electrical ruler, angular transducer signal isolation, acquisition and conversion.
Displacement, potentiometer signal acquisition/isolation and control.
Earth wire interference suppression on industrial site.
Resistance signal convert to standard analog signal.
Distance measurement and Alarm.
Analog signal long-term distortionless transmission.
CNC, Rail transit equipment displacement control and isolation safety Barrier.
Description:
Sunyuan ISO V-4-20mA and ISO R-P-O series isolation amplifier is a kind of integrated circuit that can convert and isolate position resistance signal into standard signal that linear to resistance according to change in size. It integrates a set that multi-channel high isolated DC-DC converter, some high-powered signal isolators, and resistance linearization, long-term compensation, interference suppression circuits in single chip. Especially apply to convert/isolate resistance signal to standard signal, transmission of position signal, Electrical ruler, angular transducer signal isolation, acquisition and conversion.
SY series input output non-isolated type product, has high precision and linearity (>0.05F. S), it usually applied in bull-in electrical ruler, angular displacement signal transducer etc, precision measuring instrument. Small size, easy stall. It can be installed inner of the sensor, directly convert the position, angular signal to standard 4-20mA signal. Zero and Span can be adjusted through external potentiometer
