Home > Instruments & Meters > Analysis Instrument > Other Analysis Instruments > Cable Corrosion Analysis Apparatus / Hydracid Test for Cable Flame Performance Tester
Cable Corrosion Analysis Apparatus / Hydracid Test for Cable Flame Performance Tester
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
gold
Place of Origin:
China
Model Number:
GD17650
Payment & Shipping
Payment Methods:
Port of Shipment:
chongqing
Delivery Detail:
7 days
Related Products
-
Needle Flame Chamber IEC 60695 Flame Performance TesterUS$ 1 - 2MOQ: 1 Set -
Polyfoam and Plastic Burning Testing Instrument UL94 Flame Performance TesterUS$ 1 - 2MOQ: 1 Set
-
Bunched Cable Burning Spread Tester UL 1685 IEC 60332 Flame Performance TesterUS$ 1 - 2MOQ: 1 Set
-
High Quality Cone Calorimeter for Building Material ISO5660 Flame Performance TesterUS$ 1 - 2MOQ: 1 Set
-
Bunched Cable Burning Spread Tester UL 1685 IEC 60332 Flame Performance TesterUS$ 1 - 2MOQ: 1 Set
Brand Name
gold
Place of Origin
China
Model Number
GD17650
Product Description
Introduction:

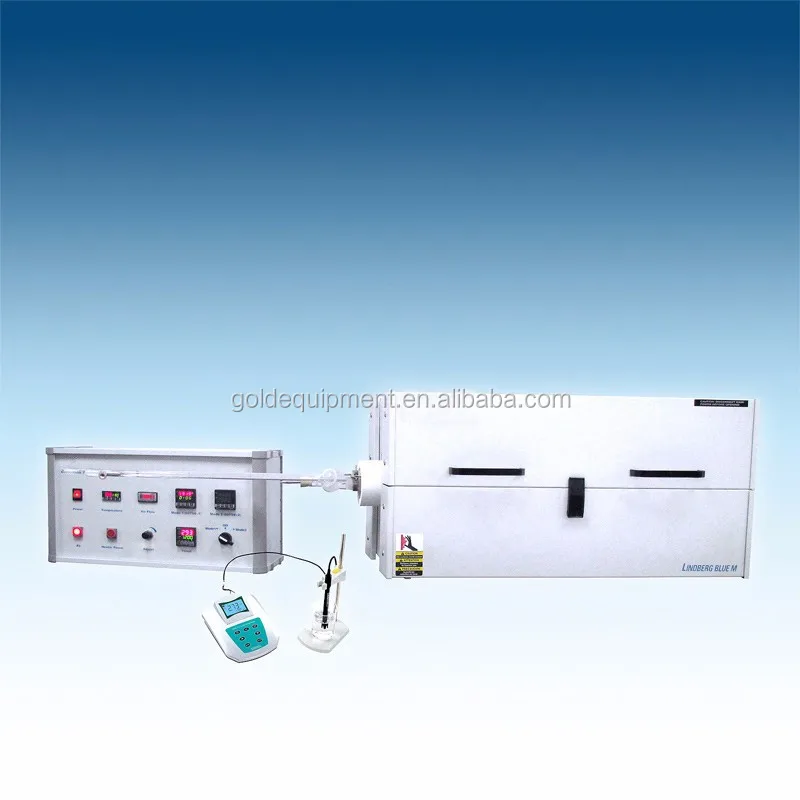

Cable corrosion test apparatus is used to test the acidity of the gas that released during combustion from cable or optical cable components material; The equipment is designed and produced on the basis of GB/T 17650 and IEC 60754.The cable material is processed by prius tube furnace, and then the pH value and conductivity of the gas that generated in combustion process are measured,so that the cable material of acidic,as well as concentration of halogen acid gas volume, PH, conductivity, etc, can be determined.
Standard
1. IEC 60754-1 Ed. 2.0 b:1994
2. IEC 60754-2 Ed. 1.0 b:1991
3. GB/T 17650
2. IEC 60754-2 Ed. 1.0 b:1991
3. GB/T 17650
Feature
1, The tester designed with optimized structure, logical layout and easy to operate.
2, Al the fixtures are made of stainless steel.
3, The effective length of the tube-type furnace is 500~600mm, inner diameter is 40~60mm, with adjustable electric systems.
4, Equipped with imported thermocouple from United States.
5, The size of the combustion boat is length 45~100mm, width 12~30mm, depth 5~10mm.
6, The electrical conductivity measuring range is 0.01uS/mm~100uS/mm.
7, The control system using an electronic temperature control, intelligent control tube furnace temperature.
8, Equipped with two gas collection bottles.
2, Al the fixtures are made of stainless steel.
3, The effective length of the tube-type furnace is 500~600mm, inner diameter is 40~60mm, with adjustable electric systems.
4, Equipped with imported thermocouple from United States.
5, The size of the combustion boat is length 45~100mm, width 12~30mm, depth 5~10mm.
6, The electrical conductivity measuring range is 0.01uS/mm~100uS/mm.
7, The control system using an electronic temperature control, intelligent control tube furnace temperature.
8, Equipped with two gas collection bottles.
