Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Engineering & Construction Machinery Parts > Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator

Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator

Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator thumbnail-1
Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator thumbnail-2
Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator thumbnail-3
Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator thumbnail-4
Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator thumbnail-5
Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator photo-1

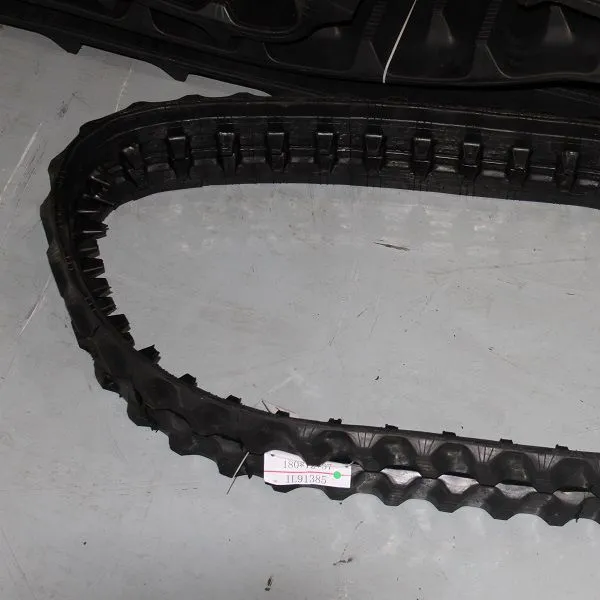

Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator photo-2

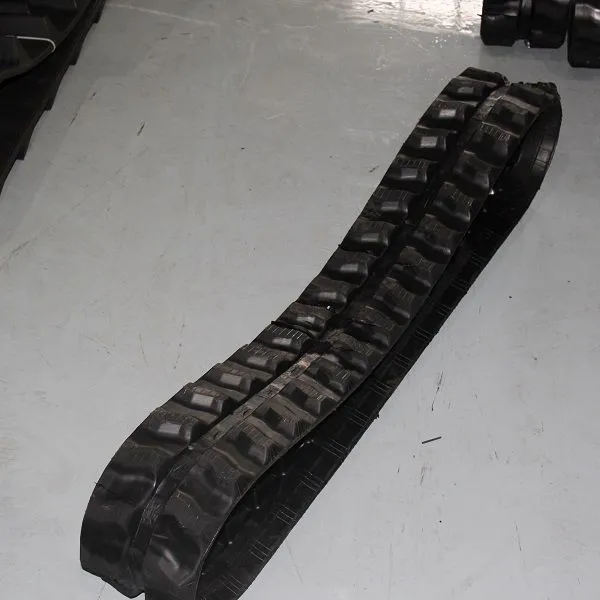

Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator photo-3

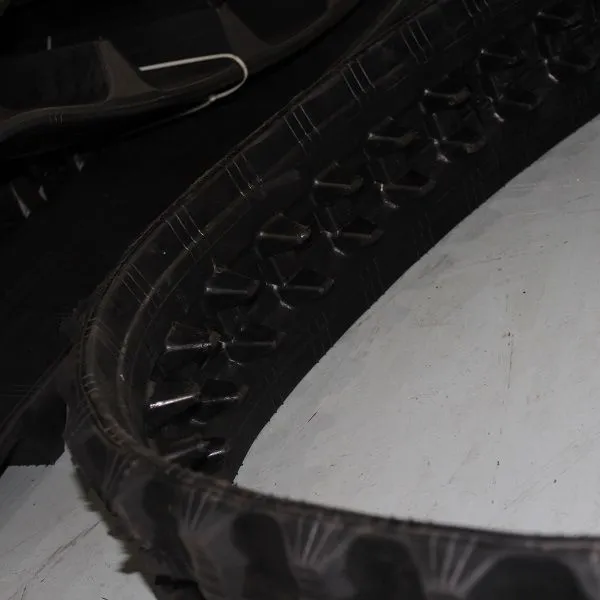

Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator photo-4

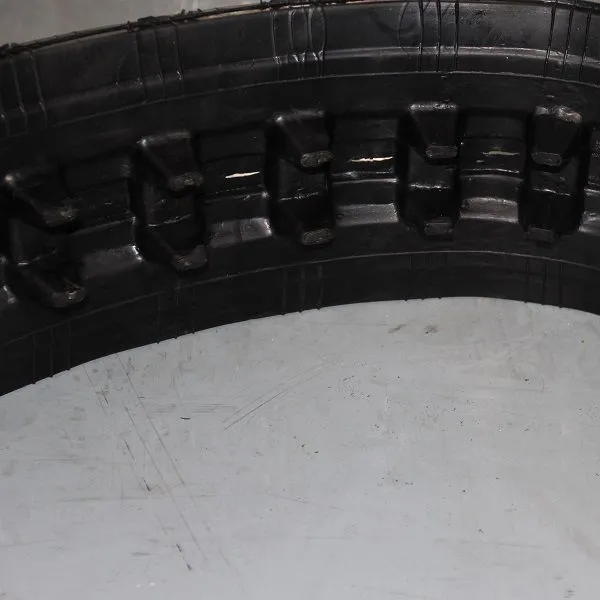

Rubber Track Width 180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) Mini Excavator photo-5
US$ 55 - 60 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
POOYERT
Place of Origin:
China
Model Number:
180 * 72 * 37
Contact Supplier Request Quote Chat Now
Shanghai Puyi Industrial Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name POOYERT
Place of Origin China
Model Number 180 * 72 * 37
Rubber Track Wd180 * 72 * 37 for Yanmar (B07.1 / B08 SCOPY) mini excavator

-----------------------------------------------------------------------------------------------------------------------------------------------

1.Product Information

1.Name of commodity Rubber Track size 180mm x 72mm x 37
2.Width 180mm
3.Pitch 72mm
4.Links 37
5.Total Length 2664mm
6.Weight 24.00kg
7.Material Rubber & Steel
8.Steel cord type Continuous inner steel cord with joint free
9.Warranty Guarantee one year under normal use


2.Application
Rubber track with size 80mm width x 72mm pitch x 37links, can be applied on the construction machinery as follow:


Brand Original Size POOYERT Size1 Roller POOYERT Size2 Roller
B07 (YANMAR) 180x72x37 190x72x37 A1 180x72x37 A1
B07.1 (YANMAR) 180x72x37 190x72x37 A1 180x72x37 A1
B08 (YANMAR) 180x72x37 190x72x37 A1 180x72x37 A1
B08 SCOPY (YANMAR) 180x72x37 190x72x37 A1 180x72x37 A1
B08.3 (YANMAR) 180x72x37 190x72x37 A1 180x72x37 A1
B08.3RV (YANMAR) 180x72x37 190x72x37 A1 180x72x37 A1
B08R (YANMAR) 180x72x37 190x72x37 A1 180x72x37 A1
B08R SCOPY (YANMAR) 180x72x37 190x72x37 A1 180x72x37 A1
B08RV (YANMAR) 180x72x37 190x72x37 A1 180x72x37 A1
B08RV SCOPY (YANMAR) 180x72x37 190x72x37 A1 180x72x37 A1
SV08 (YANMAR) 180x72x37 180x72x37K A2

SV08.1 (YANMAR) 180x72x37 180x72x37K A2

SV09 (YANMAR) 180x72x37 180x72x37K A2



-----------------------------------------------------------------------------------------------------------------------------------------------

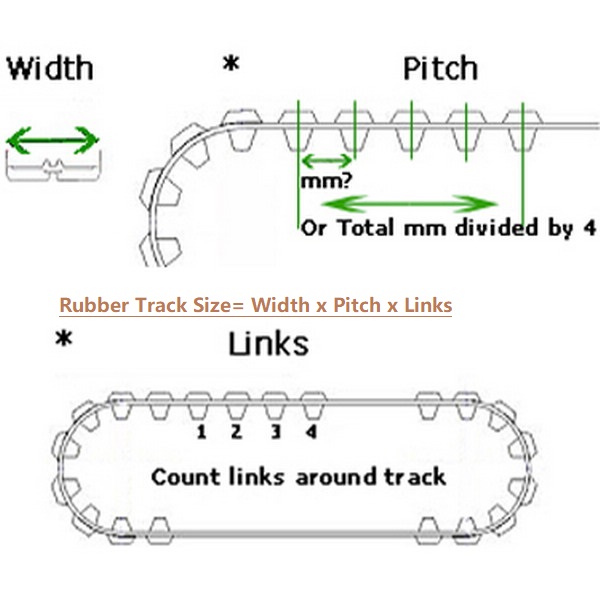

3. How to confirm the size of the rubber tracks?
Normally, we quote to our clients according to the size of the rubber track. The size of the rubber track including width of the rubber track, pitch length of the rubber track, and the links.
Size: Width x Pitch x Links Unit: mm


-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

4.Parameters
Please noted that, the parameter just show the part of our size range, if you cannot find your size, please kindly inform us by email or other ways, we will customize for you.


Excavator Rubber Track
Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm)
130*72 28-53 300*52.5K 72-84 400*72.5KW
150*60 28-49 300*52.5KW 72-92 400*74
150*72 29-40 KB300*52.5 72-92 400*75.5K
170*60 30-40 KB300*52.5N 72-98 B400*86
180*60 30-40 JD300*52.5N 72-98 400*90
180*72 30-58 300*53K 80-84 Y400*142
180*72K 30-37 300*55 70-86 400*144
B180*72K 34-51 300*55.5K 76-82 Y400*144K
B180*72A 30-51 300*71K 72-55 420*100
H180*72 30-50 300*109N 25-42 450*71
190*60 30-40 K300*109 37-41 DW450*71
190*72 34-39 300*109WK 35-42 450*73.5
200*72 34-47 B300*84 78-52 450*76
200-*72K 37-47 T300*86K 48-52 450*81N
230*48 60-84 320*52.5 72-98 450*81W
230*48K 60-84 B320*52.5 68-98 KB450*81.5
230*72 42-56 320*54 70-84 K450*83.5
230*72K 42-56 B320*86 49-52 B450*84
230*96 30-48 320*90 52-56 B450*86
230*101 30-36 320*100 38-54 450*90
250*47K 84 320*100W 37-65 KU450*90
250*48.5K 80-88 Y320*106K 39-43 T450*100K
250*52.5K 72-78 350*52.5 70-92 K450*163
250*72 47-57 350*54.5K 80-86 485*92W
B250*72 34-60 B350*55K 77-98 500*90
B250*72B 42-58 350*56 80-86 500-92
E250*72 37-58 350*75.5K 74 500*92W
250*96 35-38 350*90 42-56 500*100
250*109 35-38 350*100 46-60 K500*146
260*55.5K 74-80 350*108 40-46 600*100
Y260*96 38-41 350*109 41-44 600*125
260*109 35-39 Y370*107K 39-41 700*100
280*72 45-64 400*72.5N 70-80 750*150
Y280*106K 35-42 400*72.5W 68-92 800*125
300*52.5N 72-98 Y400*72.5K 72-74
300*52.5W 72-92 KB400*72.5K 68-76


-----------------------------------------------------------------------------------------------------------------------------------------------
