Technical Specifications of YJ-C60PLUS color doppler
4D Portable Color Doppler --- Abdominal Used Ultrasound
Specifications of Color Doppler Ultrasound Scanner YJ-C60PLUS:
Model |
Color Doppler Ultrasound Scanner YJ-C60PLUS |
|
Application
|
Abdomen / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal
|
|
Electrical Power
|
Voltage: 100 V~240 V Power: DC12.8V 3A Frequency: 50/60 Hz
|
|
Monitor
|
15 inch LED medicinal monitor
|
|
Imaging Modes
|
B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, Dual Color Simultaneous 2D/Color Compound PW, CFM, CDE, PD, Directional PD, CD
|
elements |
128 |
Language |
Chinese/English/Spanish/French/Russian/Arabic/Vietnamese/Portuguese |
Image processing |
up/down、left/right、angle、blood flow reversal
|
Magnification |
2-10 times magnification
|
Measurement |
distance, circumference, area, volume, heart rate, tube diameter, narrow rate, angle, speed, abdomen, cardiac, general, musculoskeletal, early obstetric, middle and late obstetric, pelvic(uterus accessory), small organ, urology, peripheral, gestational week and EDD, fetal weight, etc, formula can be converted to edit in obstetric measurement. The distance, circumference and volume measurement of 3D mode.
|
Storage |
in the storage display interface can be sent to directly to the mobile device, image storage path (can be stored directly to the U disk and other external storage devices), probe parameter storage, cine loop storage, measurement results storage, report storage.
|
Gray Scale |
256
|
Other function |
With puncture guide function, puncture line position can be adjusted With gravel positioning, dynamic target tracking function. |
Max scanning depth |
320mm |
External interface |
VIDEO, USB port *4, DICOM 3.0
|
dimension |
Net weight: 6.3kg；Gross weight: 16kg size: 375x350x80mm（LxWxH） |
Packing size |

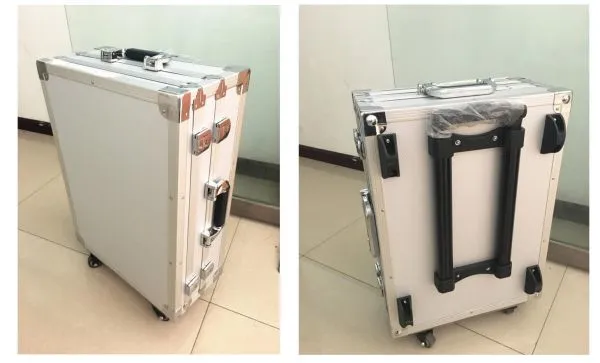

46*32.5*54cm (two-layer aluminum plastic pull-rod box, omni-directional wheel) 61*31*50cm (standard export carton box with foam)
|
Application |
Abdomen, regular women and obstetric measurement, urinary system, superficial tissue, cardiac function, peripheral blood vessels and so on. |
Optionsl probes |
1. Convex array probe 2. High frequency linear probe 3. Micro-convex array probe 4. Trans-rectal probe 5. Transvagional probe 6. Phased array probe 7. 4D probe 8. Visual abortion probe
|
HS Code |
901812910 |
