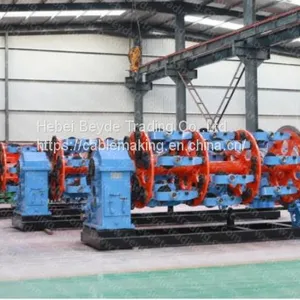

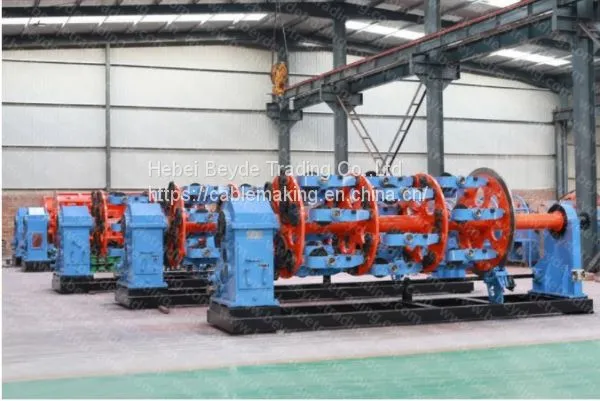

Help CenterJL400/500/630 Steel Wire Armoring Machine Cable Manufacturing Equipment
Related Products
-
Rigid Frame Stranding Machine Side Bottom Auto Loading-JLK630US$ 50000 - 250000MOQ: 1 Set -
Core Laying Up Machine Cable Laying Up Machine, Cable Conductor MachineryUS$ 30000 - 50000MOQ: 1 Set
-
45KW Wire Cable Making Machine , Planetary Stranding Machine Low NoiseUS$ 30000 - 50000MOQ: 1 Set
-
Drum Twister for Copper and Aluminum Wire. Wire Stranding MachineUS$ 30000 - 50000MOQ: 1 Set
-
Low Price High Quality Rigid Strander China Factory Produce Rigid Stranding Machine PN400 24 Bobbins Take-up EquipmentNegotiableMOQ: 1 Set
1.Application
This series machine is use for shielding and armoring the power cable, rubber cable, and control cable.and also used for making large steel wire ropes.
2 Line Configuration
2.1) Pay-off stand
2.2) Wire guiding stand
2.3) Stranding cage
2.4) Closing die holder
2.5) Compacting device (selectable)
2.6) Non-metal taping device (selectable)
2.7) Metal taping device (selectable)
2.8) Length counter
2.9) Dual wheel capstan
2.10) Take-up
2.11) Mechanical transmission system (selectable)
2.12) Electric control system
2.13) Safety protection system
3. Technical
| Specification | 400/500/600/800/1000 | ||
| Dia. of wire( mm) | 1.0-4.0 | ||
| Armouring Dia(mm) | 130 | ||
| Rotation Speed(r/min) | 22-53 | ||
| Armouring Pitch(mm) | 106-1570 | ||
| TapingSpeed(r/min) | 185-416 | ||
| Taping Pitch(mm) | 9.7-146 |
Rigid Type: 24+24,24+24+24, 36+36, 42+42, 48+48
Planetary Type: 24+24, 24+30, 30+30, 30+36, 36+36, 36+36+36, 48+48, 72+72
Copper tape/copper wire screening machine
Steel tape/steel wire armoring machine
1 The main gearbox and traction gearbox with Hardened reducer gear grinding process, low noise, long service life and low maintenance cost.
2 The gear box with auxiliary roller support mechanism, high speed, good rigidity.
3 In the gearbox on the handle to facilitate the realization of the right and left stranded and neutral.
7 gear adjusting pre twist quantity and convenient operation.
8 according to the needs of the user, you can use 12+18,18+18,18+24,24+24,24+30,30+30, until 48+48 various combinations.
