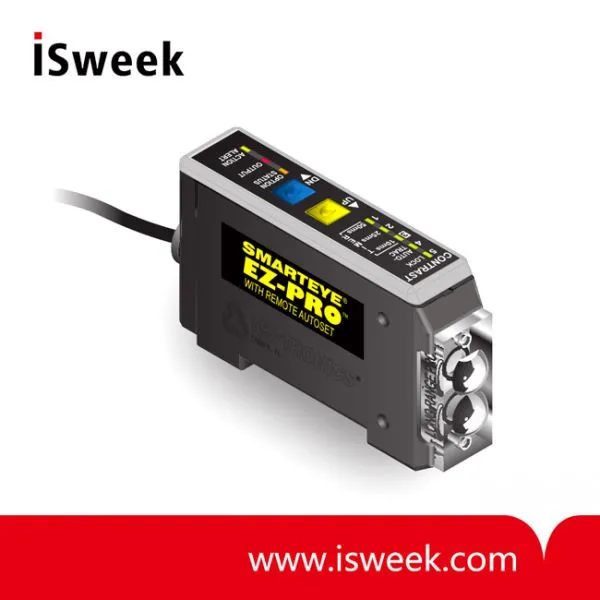

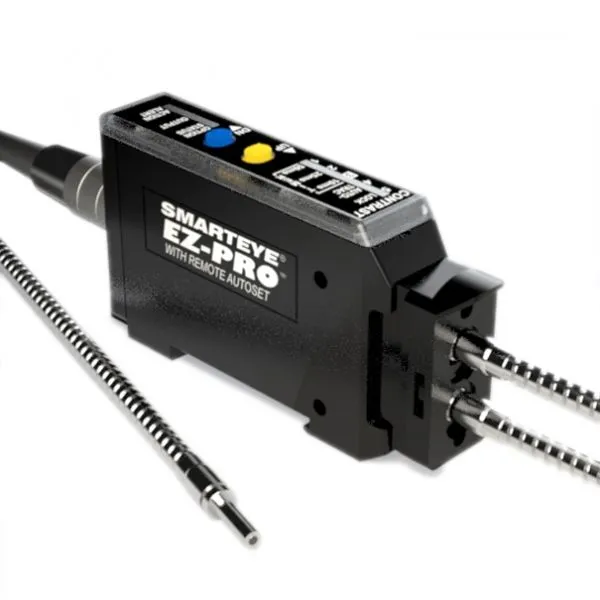

SMARTEYE EZ-PRO Digital Photoelectric Multi-mode Sensor Description
The SMARTEYE® EZ-PRO™ is a high performance, digital photoelectric multi-mode sensor that can be set-up by a single push of a button. There is no guess work on the part of the operator. From that point on, the sensor will automatically maintain a perfect setting, thanks to the dynamic Automatic Contrast Tracking System (ACT). The EZ-PRO™ AUTOSET routine can also be implemented from a momentary remote switch (i.e. push button or touch screen). The EZ-PRO™ is equipped with a Contrast Indicator as well as an Action Alert diagnostic indicator that allows the operator to visually substantiate performance. When the lock feature is enabled (see advanced features), the EZ-PRO™ sensor is tamper-proof. Now, the sensor will provide you with the automatic, hassle-free performance that you expect from a SMARTEYE®. It can either be side mounted or Din rail mounted. Epoxy encapsulated, it is ultra rugged and vibration proof.
SMARTEYE EZ-PRO Digital Photoelectric Sensor Features and Options
• AUTOSET, one button push setup
• Remote AUTOSET
• ACT, Automatic Contrast Tracking
• Action Alert indicator
• Three pulse stretchers; 10ms, 25ms, and 50ms
• 5-LED Contrast Indicator
• Cable or quick disconnect
• Interchangeable optical blocks
• Button lock out
• Light On/Dark On automatic select
• NPN and PNP output
SMARTEYE EZ-PRO Digital Photoelectric Sensor Benefits
• Easy to use
• Reduces downtime
• Robust design
• High reliability
• Lower inventory costs
• Tamperproof
SMARTEYE EZ-PRO Digital Photoelectric Sensor Applications
• Labeling
• Precision Triggering
• Shiny Objects
SMARTEYE EZ-PRO Digital Photoelectric Sensor Specifications
| SUPPLY VOLTAGE |
• 10 to 30 VDC • Polarity Protected |
| CURRENT REQUIREMENTS |
• 45mA (exclusive of load) |
| OUTPUT TRANSISTORS |
• (1) NPN and (1) PNP sensor output transistor • Sensor outputs can sink or source up to 150mA (current limited) • All outputs are continuously short circuit protected |
| REMOTE AUTOSET INPUT |
• Opto isolated sinking input (10mA) |
| RESPONSE TIME |
• Light/Dark state response = 300 microseconds |
| LED LIGHT SOURCE |
• Infrared = 880nm, Red = 660nm, Blue = 480nm, White = Broadband Color Spectrum • Pulse modulated |
| PUSHBUTTON CONTROL |
• Yellow/Blue - AUTOSET • Manual Adjustments • Set status of three options: 5) Lock, 4) Auto-Trac, 3) Timers: 10ms, 25ms, 50ms |
| HYSTERESIS |
• "Factory-set" for high resolution - less than one bar on the Contrast Indicator |
| LIGHT IMMUNITY |
• Responds to sensor’s pulsed modulated light source, resulting in high immunity to most ambient light, including indirect sunlight or strobes |
| DIAGNOSTIC INDICATORS |
• 5-LED bar graph functions in one of two modes: 1. Contrast Indicator – displays scaled reading of sensor’s response to contrasting light levels (light to dark) 2. Status Indicator – Displays status of 5 selectable options • Red LED output indicator = Illuminates when the sensor’s output transistors are "on." NOTE: If Output LED flashes, a short circuit condition exists • Amber LED = Illuminates when in the options select mode • Yellow LED = Illuminates when action alert is activated. Also indicates when ACT adjusts sensor |
| AMBIENT TEMPERATURE |
• -40°C to 70°C (-40°F to 158°F) |
| RUGGED CONSTRUCTION |
• Chemical resistant, high impact polycarbonate housing • Waterproof ratings: NEMA 4X, 6P and IP67 • Conforms to heavy industry grade CE requirements |
SMARTEYE EZ-PRO Digital Photoelectric Sensor How To Specify1. Select Sensor light source required:
I = Infrared
R = Red
B = Blue
WL = White
2. Select Connector required:
Blank = Cable 6 ft. (1.8m)
C = Connector
3. Select Optical Block based on mode of operation required.
