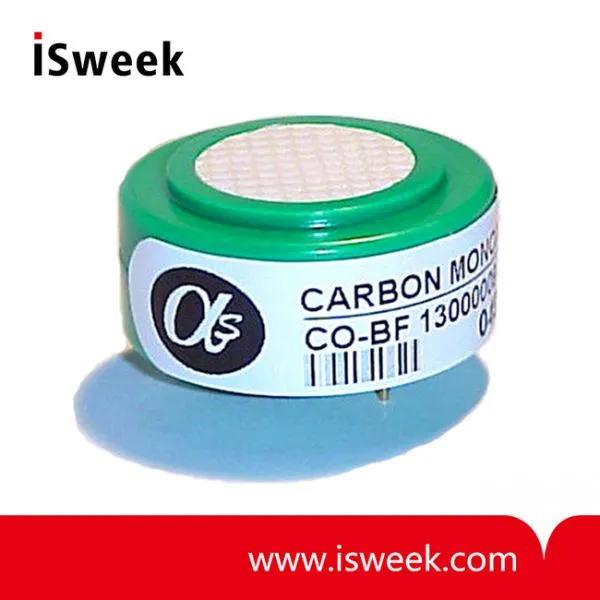

CO-BF Carbon Monoxide Sensor (CO Sensor)

Sensitivity

nA/ppm in 400ppm CO

80 to 130

Response time

t90 (s) from zero to 400ppm CO

<25

Zero current

ppm equivalent in zero air

<± 4

Resolution

RMS noise (ppm equivalent)

<0.5

Range

ppm limit of performance warranty

5,000

Linearity

ppm CO error at full scale, linear at zero, 1000ppm CO

<± 30

Overgas limit

maximum ppm for stable response to gas pulse

10,000

CO-BF Carbon Monoxide Sensor (CO Sensor) LIFETIME

Zero drift

ppm equivalent change/year in lab air

<0.1

Sensitivity drift

% change/year in lab air, monthly test

<3

Operating life

months until 80% original signal (24 month warranted)

> 24

CO-BF Carbon Monoxide Sensor (CO Sensor) ENVIRONMENTAL

Sensitivity @ -20℃

% (output @ -20℃/output @ 20℃) @ 400ppm CO

70 to 88

Sensitivity @ 50℃

% (output @ 50℃/output @ 20℃) @ 400ppm CO

102 to 115

Zero @ -20℃

ppm equivalent change from 20℃

<-1 to +4

Zero @ 50℃

ppm equivalent change from 20℃

<± 6

CO-BF Carbon Monoxide Sensor (CO Sensor) CROSS SENSITIVITY

Filter capacity

ppm·hrs H2S

250,000

Filter capacity

ppm·hrs NO2

120,000

Filter capacity

ppm·hrs NO

120,000

Filter capacity

ppm·hrs SO2

160,000

H2S   sensitivity

% measured gas @ 20ppm H2S

<0.1

NO2   sensitivity

% measured gas @ 10ppm NO2

<0.1

Cl2     sensitivity

% measured gas @ 10ppm Cl2

 <0.1

NO     sensitivity

% measured gas @ 50ppm NO

<25

SO2   sensitivity

% measured gas @ 20ppm SO2

<0.1

H2     sensitivity

% measured gas @ 400ppm H2 at 20℃

<65

C2H4 sensitivity

% measured gas @ 400ppm C2H4

<65

NH3   sensitivity

% measured gas @ 20ppm NH3

<0.1

CO-BF Carbon Monoxide Sensor (CO Sensor) KEY SPECIFICATIONS

Temperature range

℃

-30 to 50

Pressure range

kPa

80 to 120

Humidity range

% rh continuous

15 to 90

Storage period

months @ 3 to 20℃ (stored in sealed pot)

6

Load resistor

Ω (recommended)

10 to 47

Weight

g

<13
