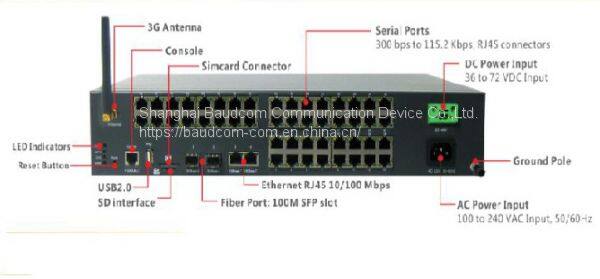

48 Channel RS422 Serial to Ethernet Converter Console Server

The 16/32/48 channel serial to ethernet/IP servers can connect 16/32/48 port serial devices to an Ethernet/IP network, It support RS232/RS485 Serial Standards, It can be widely applied in different fields for such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The 16/32/48 channel serial to ethernet servers are ultra-lean, ruggedized, and user friendly, making simple and reliable serial to Ethernet solutions possible.

Function Features

• 1.     4KV/2KA enhanced surge protection for serial ports
  2.     Built-in 15 KV ESD protection for all serial signals
  3.     Web-based configuration
  4.     Support TCP server/ TCP client/UDP/Virtual COM Socket modes
  5.     It has a compact structure, adopting high-performance processor and high-capacity memory;
  6.     Device Manager software for centralized management and control;
  7.     WEB browser for remote setup of the equipment;
  8.     It can support 8channel RS232 or RS485
  9.      Ethernet supports 10M/100M, full-duplex / half-duplex and adaptive modes;
  10.   can choose WIFI or 3G for transmission







Power supply

working voltage range wide, good anti-disturb and Isolation, work stable

Input Voltage: 5 VDC, 24VDC, -48VDC, 110VAC and 220VAC

Power Consumption:     <5 Watts

environment condition

Operating temperature:  0C~+50 C

Storage temperature:   -40 C~+85C

Relative temperature: 5 to 95% (uncondensed)

 Application:

Connect serial devices to server based applications over an IP network

Manage remote serial console ports over an IP network

Virtual modem capability for modem-based applications

Ordering information
