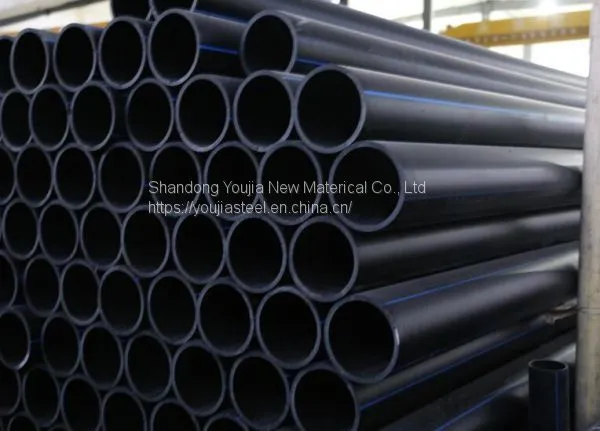

Help CenterChina 50mm 63mm 90mm 110mm 250mm 315mm Sdr 17 PE Pipe for Water Supply
Related Products
Product key information | |
Product Name: |
HDPE pipe |
dn: |
20mm-1400mm |
|
Wall Thickness Dimension: |
2.0mm-82.4mm |
|
Classify rate to thickness: |
SDR33,SDR23,SDR21,SDR17,SDR13.6,SDR11 |
Nominal Pressure: |
0.4Mpa,0.6Mpa,0.8Mpa,1.0Mpa,1.25Mpa,1.6Mpa |
Material: |
Polyethylene, PE80,PE100 |
Color: |
Black with 4 blue straight lines or customized |
Length: |
4m,6m,9m,12m of straight, coil or as requested |
Packing: |
In coils or 6-12m/piece by plastic bag |
Connection: |
socket fusion, butt fusion, electro-fusion |
Standard: |
GB/T13663-2000, ISO04427-2:2007(E) |
Service Life: |
Minimum 50 years life under normal condition |
Application: |
Water supply system, industrial liquids transportation and sewage treatment, agriculture water pipe |
HDPE pipe Advantages:
1 Long working life. Minimum 50 years life under nomal conditions.
2 Hygiene. HDPE coil pipe are nontoxic, without the composition of heavy metal additives.
No scale, not breeding germ, no second pollution to the potable water.
3 High resistance to attack from various types of chemicals. No electrochemical corrosion.
4 Smooth internal surface. Extremely low friction coefficient.
Improved capability for media to pass through. Excellent abrasive resistance.
5 Good flexibility, high resistance to impact. Resistance to earthquake and twisting.
6 Light weight, easy to transport, convenient installation.
7 Unique electro fusion welding and butt welding make the joints stronger than the material,
to guarantee a safe and reliable joint.
8 Simple welding technique, convenient installation. Total cost is low for the installation.
9 Polyethylene water pipes are produced in black, black with blue stripes and blue etc.
HDPE pipe Properties
HDPE plastic pipe -100 has little branching, giving it stronger intermolecular forces and tensile strength than lower-density polyethylene. It is also harder and more opaque and can withstand somewhat higher temperatures (120 C/ 248 F for short periods, 110 C /230 F continuously). High-density polyethylene, unlike polypropylene, cannot withstand normally-required autoclaving conditions. The lack of branching is ensured by an appropriate choice of catalyst reaction conditions. HDPE contains the chemical elements carbon and hydrogen.
