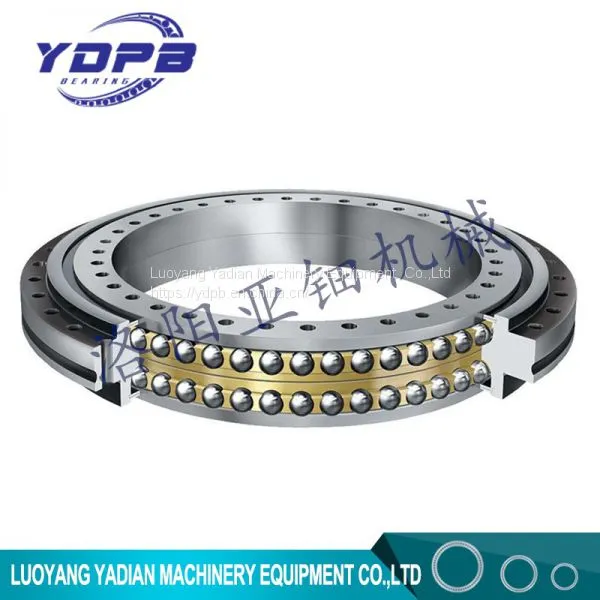

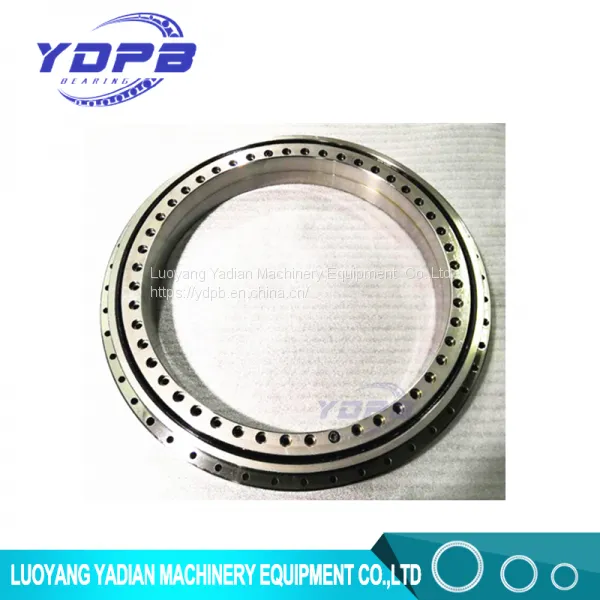

Help CenterZKLDF395 China High Speed Rotary Table Bearing Angular Contact Ball Bearing ZKLDF
Related Products
-
YDPB Chinese Made Rotary Table Bearing for Measuring Instruments Ball BearingsUS$ 1 - 100000MOQ: 1 Piece -
YDPB YRT1030 Yrt Table Bearings Factory Robotic Surgery Devices BearingsUS$ 1 - 100000MOQ: 1 Piece
-
YRT1030P4 Combined Axial Radial Bearing YRT Rotary Bearing Anti-rust BearingUS$ 100 - 15000MOQ: 1 Piece
-
YRT1030VSP Multi-directional Loads For Precision Rotary Tables Phosphating Bearing Anti-corrosionUS$ 100 - 15000MOQ: 1 Piece
-
YRT1030 Nylon Cage Precision Cylindrical Roller Bearings Precision Rotary Tables BrochureUS$ 100 - 15000MOQ: 1 Piece
Features:
ZKLDF series(four point ball contact),with low frictional ,high rotate accurancy and high limit speed etc. features, can bear higher axial,radial load and with higher tilting rigity.,Main application is the area which need combined load and high precision. E.g machine tool rotary table ,grinding head and other measuring equipment.
Series model No.
ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460, ZKLDF580

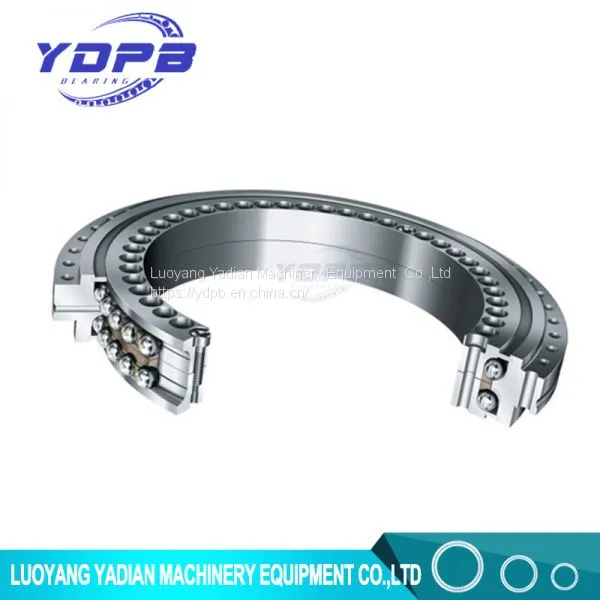

Structure:
ZKLDF series parameters
| Series | Model Number |
Main dimensions (mm) | Basic load rating (Axial) |
Limiting speed (Grease) |
Bearing frictional torque |
Weight |
Model Number |
||||||||
| d | D | H | H1 | C | D1 | J | J1 | Ca KN | Coa KN | r/m | (Nm) | (Kg) | --------- | ||
| ZKLDF | ZKLDF100 | 100 | 185 | 38 | 25 | 160 | 136 | 112 | 170 | 71 | 265 | 2800 | 1.6 | 4.5 | ZKLDF100 |
| ZKLDF120 | 120 | 210 | 40 | 26 | 184 | 159 | 135 | 195 | 76 | 315 | 2400 | 2 | 6 | ZKLDF120 | |
| ZKLDF150 | 150 | 240 | 40 | 26 | 214 | 188 | 165 | 225 | 81 | 380 | 2000 | 3 | 7.5 | ZKLDF150 | |
| ZKLDF200 | 200 | 300 | 45 | 30 | 274 | 243 | 215 | 285 | 112 | 610 | 1600 | 4.5 | 11 | ZKLDF200 | |
| ZKLDF260 | 260 | 385 | 55 | 36.5 | 345 | 313 | 280 | 365 | 162 | 920 | 1200 | 7.5 | 22 | ZKLDF260 | |
| ZKLDF325 | 325 | 450 | 60 | 40 | 415 | 380 | 342 | 430 | 172 | 1110 | 1000 | 11 | 28 | ZKLDF325 | |
| ZKLDF395 | 395 | 525 | 65 | 42.5 | 486 | 450 | 415 | 505 | 241 | 1580 | 800 | 16 | 39 | ZKLDF395 | |
| ZKLDF460 | 460 | 600 | 70 | 46 | 560 | 520 | 482 | 580 | 255 | 1860 | 700 | 21 | 5 | ||
Applications :
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc
More products production line
1.YRT rotary table bearings
2.Crossed Roller Bearings
3.Crossed Tapered Roller Bearings
4.Thrust cylindrical Roller bearings
5.Deep Groove Ball Bearings
6.Angular contact ball bearings
7.Ceramic bearings
8.Harmonic Drive special bearings
9.Custom made bearings OEM,ODM available
Pls send us inquiry if need,or call us directly, your questions will be replyed within 24 hours
