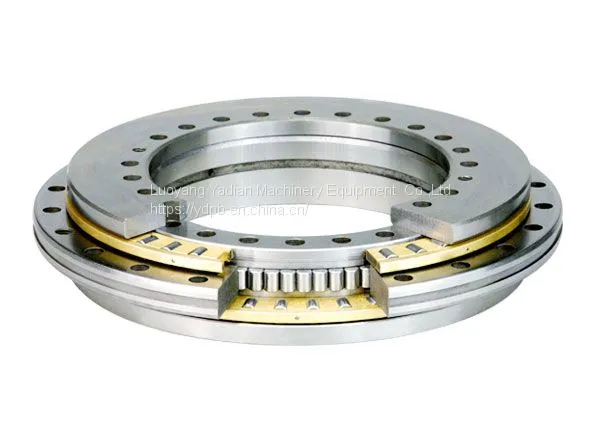

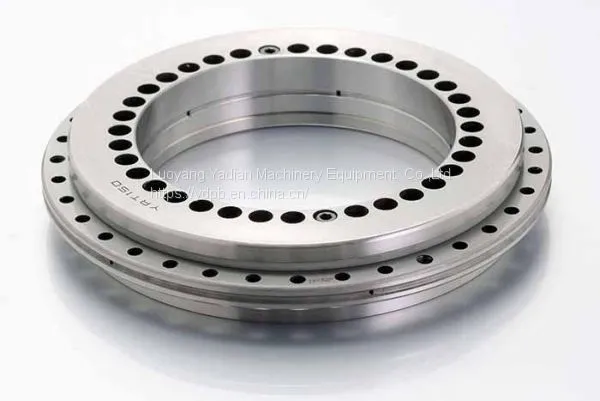

Help CenterYRT1030VSP Multi-directional Loads For Precision Rotary Tables Phosphating Bearing Anti-corrosion
Related Products
-
YRT1030 Nylon Cage Precision Cylindrical Roller Bearings Precision Rotary Tables BrochureUS$ 100 - 15000MOQ: 1 Piece -
YRT1030 Custom Made Rotary Table Bearing Precision Cylindrical Roller Bearings For NC Rotary TablesUS$ 100 - 15000MOQ: 1 Piece
-
YRT50P4 Rotary Table Bearing 50X126X30mm China Turntable Bearing Machine Tools BearingUS$ 100 - 15000MOQ: 1 Piece
-
YRT50P2 Precision Cylindrical Roller Bearings High Precision Rotary Table BearingUS$ 100 - 15000MOQ: 1 Piece
-
YRT50 Custom Made Slewing Ring Bearing Size Precision Cylindrical Roller Bearings For NC Rotary TablesUS$ 100 - 15000MOQ: 1 Piece
Axial radial bearings YRT are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.
| Applications |
•Precision machine tools •precision Turntable, NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment •Indexing plate of other precision machines etc |
|||||||||||||||||
Main Models
YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.
Main parameters
| Bearing type |
d (mm) |
D (mm) |
H (mm) |
Screw tightening torque(Nm) |
Axial dynamic Load(KN) |
Radial dynamic Load(KN) |
Weight (KG) |
| YRT-50 | 50 | 126 | 30 | 8.5 | 38 | 28.5 | 1.6 |
| YRT-80 | 80 | 146 | 35 | 8.5 | 56 | 42.5 | 2.4 |
| YRT-100 | 100 | 185 | 38 | 8.5 | 76.5 | 47.5 | 4.1 |
| YRT-120 | 120 | 210 | 40 | 14 | 102 | 52 | 5.3 |
| YRT-150 | 150 | 240 | 40 | 14 | 112 | 56 | 6.2 |
| YRT-180 | 180 | 280 | 43 | 14 | 118 | 69.5 | 7.7 |
| YRT-200 | 200 | 300 | 45 | 14 | 120 | 81.5 | 9.7 |
| YRT-260 | 260 | 385 | 55 | 34 | 160 | 93 | 18.3 |
| YRT-325 | 325 | 450 | 60 | 34 | 300 | 120 | 25 |
| YRT-395 | 395 | 525 | 65 | 34 | 355 | 186 | 33 |
| YRT-460 | 460 | 600 | 70 | 34 | 490 | 200 | 45 |
| YRT-580 | 580 | 750 | 90 | 68 | 490 | 228 | 89 |
| YRT-650 | 650 | 870 | 122 | 116 | 1040 | 490 | 170 |
| YRT-850 | 850 | 1095 | 124 | 284 | 1000 | 455 | 253 |
| YRT-950 | 950 | 1200 | 132 | 284 | 1290 | 530 | 312 |
| YRT-1030 | 1030 | 1300 | 145 | 284 | 1380 | 620 | 375 |
