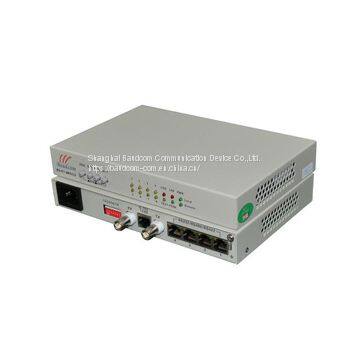

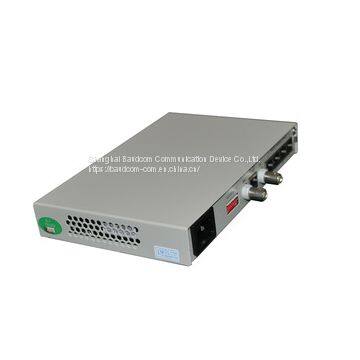

G.703 E1 to 8 Channel RS232 Converter
US$ 185 - 205
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Baudcom
Place of Origin:
China
Model Number:
BD-E1-8RS232
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
7 days
Related Products
-
G.703 E1 to 16 Channel RS232 ConverterUS$ 220 - 240MOQ: 1 Piece -
G.703 E1 to 31 Channel RS232 ConverterUS$ 280 - 300MOQ: 1 Piece
-
2 Ethernet Over 2 E1 Convergency ConverterUS$ 120 - 150MOQ: 1 Piece
-
DS3 E3 to Ethernet ConverterUS$ 330 - 350MOQ: 1 Piece
-
E1 Timeslot ADD DROP to Ethernet Converter TimeSlot Drop and Insert SystemUS$ 100 - 120MOQ: 1 Piece
Brand Name
Baudcom
Place of Origin
China
Model Number
BD-E1-8RS232
FUNCTION:
E1 G.703 to 8 chanel RS232 converter realizes data conversion between G.703 E1 and 8channle RS232 interface.The E1 RS232 converter could connect to DTE or DCE device,RS232 could transmit asynchronous 0~115200Kbps self-adapt.
PRODUCT CHARACTERISTIC
RS232 rate support 0~115200Kbps self-adapt;
Support RS232 interface (TXD,RXD,GND)
RS232 support hot-plug, connection to DTE or TCE device;
offer 2 kinds of loop-return function, namely E1 self-looping at local end (ANA) and RS232 self-looping at local end (REM)
AC220V and DC-48V for option, and DC-48V is not divided into positive and negative pole with simple installation and maintenance;
has the function of pseudo-random code testing(PATT), which brings great convenience for installation, debugging and maintenance of equipment;
E1 interface supports 75ohm, unbalanced and 120ohm balanced impedance at the same time;
Specifications
E1 Interface
Line Rate: 2.048Mbps
Line Code : HDB
Interface Standard: ITU-T G.703
E1 Impedance: 75ohm(unbalance) and 120ohm(balance)
Connections : dual coax BNC and 120-ohm twisted-pair (RJ45)
Jitter tolerance : finer than G.742 and G.823
Clock: internal clock, line clock
RS232interface
Rate:asynchronous mode 0 to 115200 bps auto-adapt.
Interface: conform to ITU-T V.24 V.11
Connector: DB9
Connect mode: DCE
Dimension
Desk top type: 210(W)*140(D)*30(H)
Power supply
working voltage range wide, good
anti-disturb and Isolation, work stable
DC-48V,range DC-36V~DC-72C
AC220V,range AC165V~AC240V
Power Consumption:
environment condition
Operating temperature: 0C~+50 C
Storage temperature: -20 C~+70 C
Relative temperature:95% (uncondensed)
Application:
Ordering information
| BD-E1-8RS232/AC | E1 G.703 to 8 channel RS232 converter, 8channel RS232 over E1 G.703 converter, attach RJ45 to DB9 cable,AC220V | |
| BD-E1-8RS232/DC | E1 G.703 to 8 channel RS232 converter, 8channel RS232 over E1 G.703 converter, attach RJ45 to DB9 cable,DC48V |
