Overview:
Framed E1 to Ethernet converter, E1 port supports BNC(75ohm) and RJ45(120ohm),E1 rate can be set N*64K.ethernet port support 10/100M auto-negociation Framed E1 to Ethernet converter, E1 port supports BNC(75ohm) and RJ45(120ohm),E1 rate can be set N*64K.ethernet port support 10/100M auto-negociation
BD-FE1-ETH is a single port E1/ framed E1 with Ethernet Bridge that provides high-speed LAN-to-WAN connectivity. Plugging directly into the 10/100Base-T port of a hub or LAN switch, the Framed E1 to ethernet converter provides Framed E1 access at connection data rates of 2.048 Mbps, or nx64 (n=1 to 32 channels). The FE1-ETH converter is an excellent choice for internet access as well as LAN-to-LAN services.
Features:

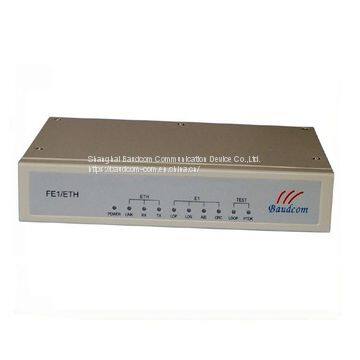

Have two row of LED , one indicate local status, the other indicate remote status
Remote adjustment of velocity for the remote device is available, you can set the velocity of one side, and the velocity of the other side can auto adjust.
Provide two RJ45 for LAN, one is MDI interface, the other is MDIX.
the interface of LAN is 10/100M ,full/duplex auto-negotiation
LAN interface support 802.1Q(VLAN) protocol
Provide LAN auto reset function, run more stably
Provide two clock mode, E1 main clk and E1 line clk

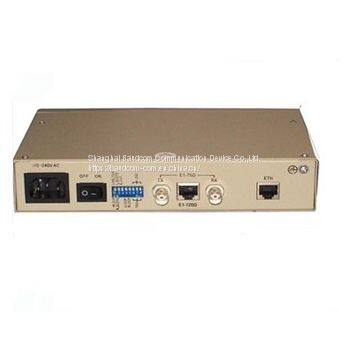

E1 port support BNC 75ohm dual coax and RJ45 120ohm twisted-pair G.703 connections provided, support 75ohm/120ohm adaptively;
One console port for selection on your order
it can realize SNMP function in our chassis installation
-
Technical data:
E1 Interface
Line Rate: 2.048Mbps?50ppm
Line Code : HDB3
Interface Standard: ITU-T G.703,G.704
E1 Impedance : 75ohm(unbalance) and 120ohm(balance) adapt
Connections : dual coax and 120ohm twisted-pair (RJ45)
Jitter tolerance : comply standard G.742 and G.823
Ethernet Interface
RATE : 10/100M ,full/duplex auto-negotiation
PROTOCOL: Support IEEE 802.3,IEEE 802.1Q(VLAN)
MAC Adderess Entiries:4096 Entiries
Totol Memory Sizes:64MBits SDRAM
Connection: RJ45
Power
With good insulation, stable working status is available
power: -48V type, input voltage: -36V~-72V
power: 220V type, input voltage: 165V~265V
power consume:
Working condition
Input voltage: AC220V; DC-48V;
Power consumption: Operating temperature: 0C ~ 50C
Storing temperature: -40C ~ +70C
Relative humidity: 95 %
DIMENSIONS: Mini Type:210mm(W) × 140mm (L) x 30mm(H)
Application
Ordering information
| BD-FE1-ETH/AC | Framed E1 to ethernet converter,Ethernet over E1,AC220V | |
| BD-FE1-ETH/DC | Framed E1 to ethernet converter,Ethernet over E1,DC48V | |
| BD-FE1-ETH/R/AC | Framed E1 to ethernet converter,10/100M Ethernet over E1 TDM,AC220V,19" 1U rack mount | |
| BD-FE-ETH/R/DC | Framed E1 to ethernet converter,10/100M Ethernet over E1 TDM,DC48V,19" 1U rack mount |
