Introduction
max18606615951()

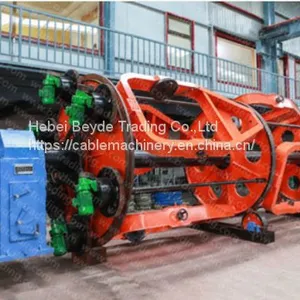

Cradle type cabling machine is used for cabling medium&low power cables, telephone cables, control cables or mining cables. This machine is suitable for laying up the multi-cores(3-7cores), section can be round or sector.The machine is mainly used to strand, wrap and armor big section area cables with 3 / 4 / 5 / 6 cores. The shape of the conductor can be circular, scalloped or cup. When producing circular cables, insulated wires can be processed with back twisting, while sector-shaped cables without it.
Features:
1.The machine is with low cost compare to other stranding machines, but produced by the machine with high quality.
2.The machine is equipped with back-twist stranding, electronic pre-twist, bobbin is clamped and released by electromotion.
3.The machine is equipped with PLC control system for pre-setting laying up pitch and for speed synchronization with the take up unit.
4.Caterpillar(belt) type haul-off unit driven by independent motor.
5.The machine can be equipped with taping or armoring device.
Technical Parameters
| Specification | CLY1000 1+1+3 | CLY1000 1+6 | CLY1250 1+1+3 | CLY1250/1+6 | CLY1600/ 2+3 | CLY2000/2+3 | |
| Dia. Of inlet wire(mm) | 5mm-20mm | 6mm-25mm | 10mm-35mm | 15mm-45mm | |||
| Lay up Dia.(mm) | 60mm | 80mm | 100mm | 120mm | |||
| Frame rotation speed | 10-25 | 5-13 | 3.9-11.2 | ||||
| Lay-up pitch(mm) | 208-3680 | 420-7569 | 362-6969 | ||||
| Taping Speed(r/min) | 188-419 | 188-419 | |||||
| Taping pitch(mm) | 11.9-195.9 | 13-213 | |||||
| Armouring speed (r/min) | 188-419 | 188-419 | |||||
| Armouring pitch (mm) | 11.9-195.9 | 13-23 | |||||
| Capstan Dia.(mm) | 2000 | 2000 | 2500 | ||||
| Linear speed(m/min) | 4.98-36.82 | 5.31-40.08 | |||||
