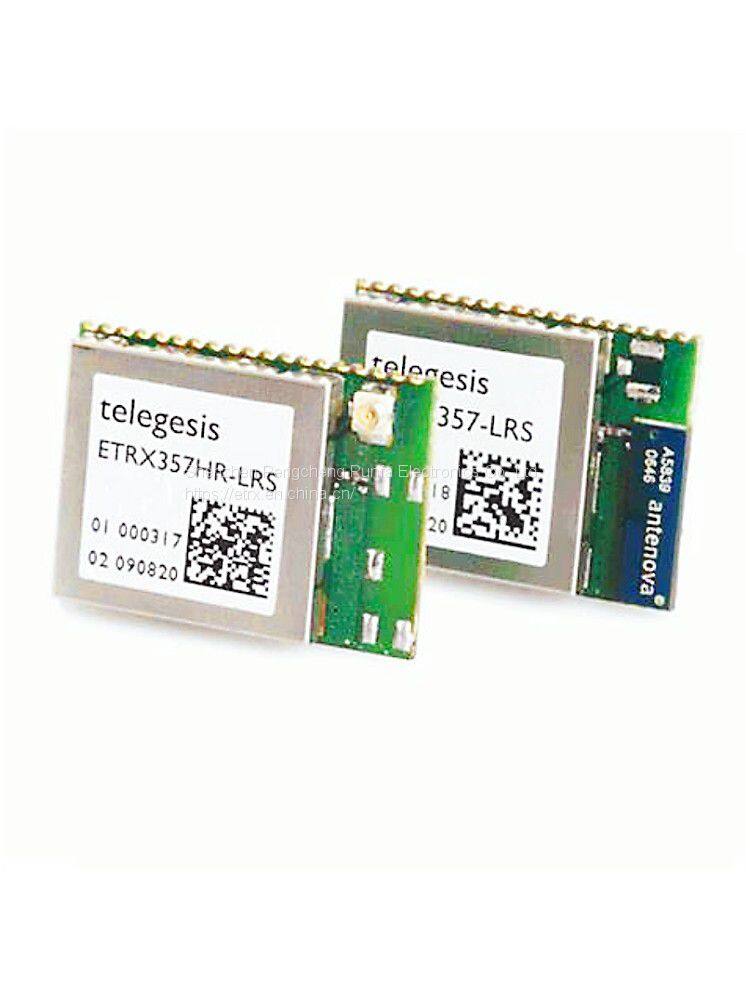

Spot sales Telegesis ETRX357-LRS Silicon Labs 2.4G IEEE 802.15.4 zigbee module

Module Features

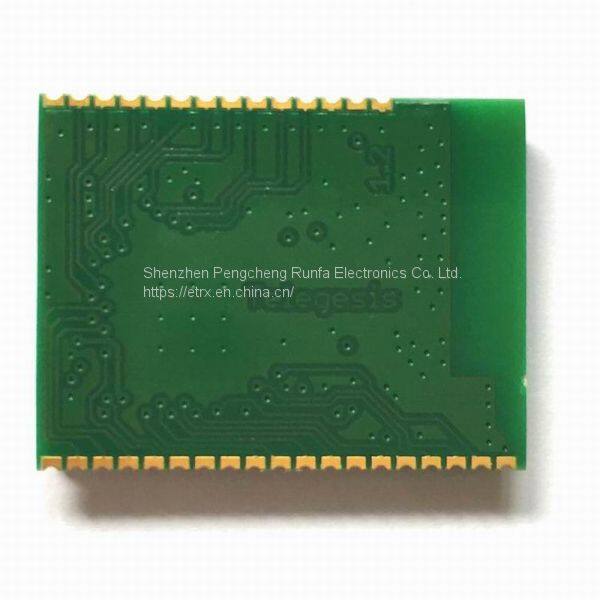

Small form factor, SMT module 25mm x 19mm
Side Castellations for easy soldering
2 antenna options: Integrated chip antenna or U.FL
coaxial connector
Industry’s first ARM® Cortex-M3 based family of
ZigBee modules
Industry standard JTAG Programming and real time
network level debugging via the Ember InSight Port
192kB (ETRX357) and 128kB (ETRX351) flash and
12kB of RAM
Lowest Deep Sleep Current of sub 1μA and multiple
sleep modes
Wide supply voltage range (2.1 to 3.6V)
Module ships with standard Telegesis AT-style
command interface based on the ZigBee PRO feature
set
Can act as an End Device, Router or Coordinator
24 general-purpose I/O lines including analogue inputs
(all GPIOs of the EM35x are accessible)
Firmware upgrades via serial port or over the air
(password protected)
Hardware supported encryption (AES-128)
CE and FCC compliance, FCC modular approval
Approvals for Canada, S Africa, Australia & NZ
Operating temperature range: -40°C to +85°C
Long Range version with a link budget of up to 124dB
available in the same form factor
Radio Features
Based on the Ember EM351 and EM357 single chip
ZigBee® solutions
2.4GHz ISM Band
16 channels (802.15.4 Channel 11 to 26)
+3dBm output power ( +8dBm in boost mode)
High sensitivity of -99dBm (-101dBm in boost mode)
typ. @ 1% packet error rate
RX Current: 25mA, TX Current: 31mA at 3dBm
Robust Wi-Fi and Bluetooth coexistence
Over-the-air compatible with the ETRX2
Suggested Applications
AMR – ZigBee Smart Energy applications
Wireless Alarms and Security
Home/Building Automation
Wireless Sensor Networks
M2M Industrial Controls
Lighting and ventilation control
Remote monitoring
Environmental monitoring and control
Development Kit
New Development kit containing everything required to
set up a mesh network quickly and evaluate range and
performance of the ETRX35x and its long range
version.
AT-style software interface command dictionary can
be modified for high volume customers.
Custom software development available upon request.
Example AT-Style Commands
AT+BCAST Sends a Broadcast
AT+UCAST: Sends a Unicast
AT+EN Establish PAN network
AT+JN Join PAN
At power-up the last configuration is loaded from nonvolatile S-Registers, which can eliminate the need for an
additional host controller.
