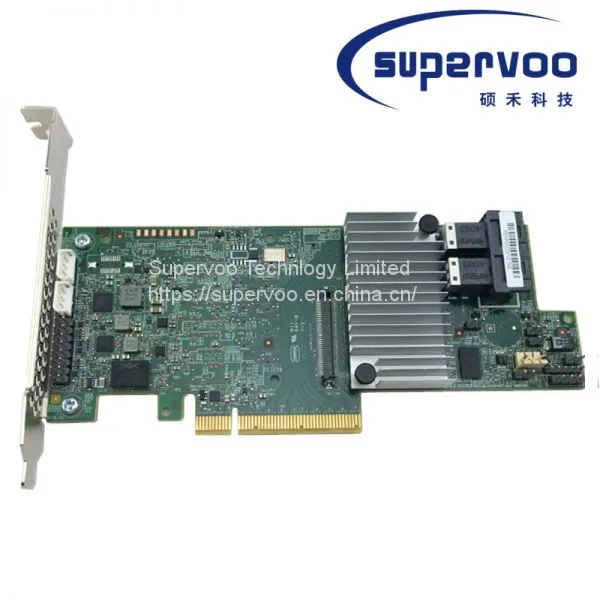

LSI00417 9361-8i SGL 8-Port Internal 12Gb PCI-Express W/1G RAID Controller

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Trading Company

Year Established:

2018

Annual Export Value:

US$1.5 Million - US$2.5 Million

Contact Supplier Request Quote Chat Now

Supervoo Technlogy Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

3 days

Product Details
Company Profile
Contact Us

MegaRAID 9361-8i SGL LSI00417 Eight-Port Internal 12Gb PCI-Express 3.0 Server RAID Controller ,Original ,Retail , 3 years Wty

Solution Provided	Eight-port internal 12Gb dual core ROC-based SAS solution for data center, cloud, and performance-hungry applications using up to 128 SAS or SATA devices
Physical Dimensions	MD2 low profile (6.6" X 2.536")
Connectors	Two mini-SAS SFF8643 internal connectors (horizontal mount)
Device Support	Up to 128 SAS and/or SATA devices
Host Bus Type	x8 lane PCI Express 3.0 compliant
Data Transfer Rates	Up to 12Gb/s per port
I/O Processor / SAS Controller	LSISAS3108 dual core RAID on Chip (ROC)
Cache Memory	1GB 1866MHz DDRIII SDRAM
Cache Protection	Optional CacheVault Flash Module (LSICVM02) - Includes CVFM04, CVPM02, mounting clip, and cable
Key RAID Data Protection Features	RAID levels 0, 1, 5 and 6 RAID spans 10, 50, and 60 Online Capacity Expansion (OCE) Online RAID Level Migration (RLM) Auto resume after loss of system power during array rebuild or RLM Single controller multipathing Load balancing Configurable stripe size up to 1MB Fast initialization for quick array setup Check Consistency for background data integrity SSD Support with SSD Guard™ technology Patrol read for media scanning and repairing 64 logical drive support Up to 64TB LUN support DDF-compliant Configuration on Disk S.M.A.R.T. support Global and dedicated Hot Spare with Revertible Hot Spare support - Automatic rebuild - Enclosure affinity - Emergency SATA hot spare for SAS arrays Enclosure management - SES (inband) - SGPIO (sideband) Databolt™ bandwidth optimizer technology support for compatible expander-based enclosures Shield State drive diagnostic technology
Operating Temperature	Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02): 55°C
Operating Voltage	+3.3V, +12V
MTBF (Calculated)	1,343,187 hours
Hardware Warranty	3 years, free 5x8 phone support, advanced replacement option
Regulatory Certifications	EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
MegaRAID Management Suite	MegaRAID Storage Manager StorCLI (command-line interface) CTRL-R (BIOS configuration utility) HII (UEFI Human Interface Infrastructure)
SSD Optimization	MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools (Optional Upgrade) MegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID SATA+SAS controllers (Included)
Compliances	EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
OS Support	Extensive support includes Microsoft Windows Server 2012/Vista/2008/Server 2003/2000/XP, Linux, Solaris(x86), Netware, FreeBSD, VMware and more.
Ordering Information
