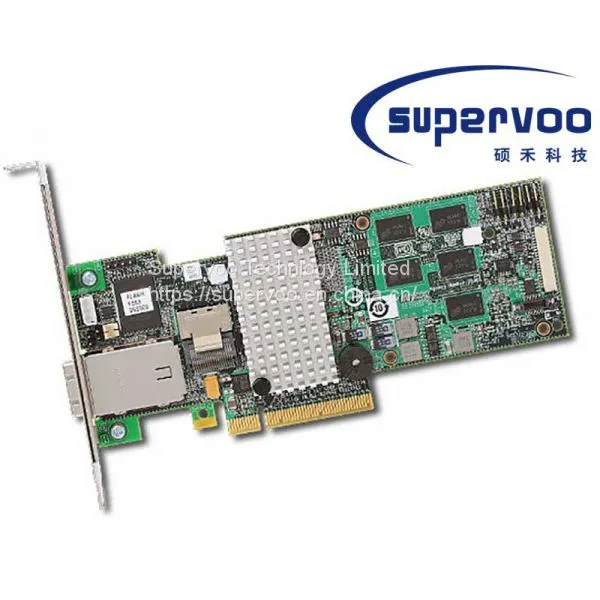

Help Center3ware 9750-4i4e SATA/SAS 6Gb/s PCIe 2.0 W/512 MB Controller Card
Related Products
-
LSI 9212-4i4e SGL 6Gb/s PCI-Express SATA/SAS 1 Ext SFF8088+ 4 Int SATA Port RAID ControllerNegotiableMOQ: 1 Piece -
LSI00343 9300-8e 12Gb/s 8-Port External PCI-Express 3.0 SATA / SAS HBANegotiableMOQ: 1 Piece
-
LSI MegaRAID SAS 9341-8i (LSI00407) PCI-Express 3.0 x8 Low Profile SATA / SAS High Performance Eight-Port 12Gb/s RAIDNegotiableMOQ: 1 Piece
-
LSI00300 9207-8E 6Gb/s Extelnal PCI-Express 3.0 x8 Low Profile SATA / SAS HBANegotiableMOQ: 1 Piece
-
9280-8e Eight-Port External SATA+SAS PCI-Express W/512M Memory RAID Controller Support RAID0/1/10/5/6NegotiableMOQ: 1 Piece
Features
Four internal and four external SATA+SAS ports
One mini-SAS SFF-8087 x4 connector, One mini-SAS SFF-8088 x4 connector.
6Gb/s throughput per port
LSISAS2108 ROC
800MHz PowerPC
Low-profile MD2 form factor (6.6" X 2.536")
x8 PCI Express® 2.0 host interface
512MB DDRII cache (800MHz)
Optional battery backup unit (direct attach)
Connect up to 96 SATA and/or SAS devices
RAID levels 0, 1, 5, 6, 10, 50 and Single Disk
Auto-resume on rebuild
Auto-resume on reconstruction
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Global hot spare with revertible hot spare support
Single controller multipathing (failover)
I/O load balancing
Comprehensive RAID management suite
Benefits
Superior performance in multi-stream environments
PCI Express 2.0 provides faster signaling for high-bandwidth applications
Support for 3Gb/s and 6Gb/s SATA and SAS hard drives for maximum flexibility
3ware Management 3DM2 Controller Settings:
- Simplifies creation of RAID volumes
- Easy and extensive control over maintenance features
Low-profile MD2 form factor for space-limited 1U and 2U environments
we can provide other LSI controller , contact us know more ...
