We produce supply and export

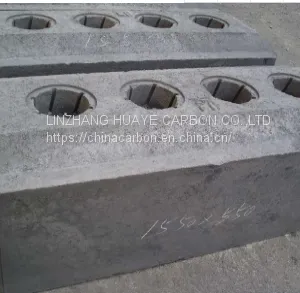

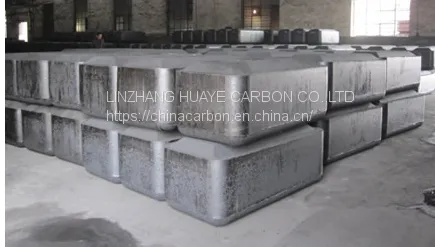

Carbon anode block/Pre-baked anode/Anode carbon block/electrolytic bath anode
1.Materials used: petroleum coke and pitch coke as aggregates;coal tar pitch as adhesive compound.
2.Application: anode material for electrolytic aluminum cells to conduct electricity and reduction.
3.Since this carbon block is baked or roasted, it has a steady geometrical shape, usually it is also called carbon anode for electrolytic aluminum.
4. Actual Practices:
Pre-baked carbon anodes usually are installed at the upper part of the electrolytic cells.
A powerful D/C current as high as 60-300ka goes through carbon anodes and is conducted into electrolytic solutions. A complicated chemical actions to disintegrate aluminum oxides happens at the bottom part of carbon anodes. Anode's final products are CO and CO2. Daily consumption rate for carbon anode is around 2-3cm.Regular maintenance(replacement/addition) to anodes is a must to ensure their's successive work.
Product Specification / Models
Application: anode for aluminum electrolysis,etc Dimensions:
Rectangular Shape
Chemical Composition:
high carbon Fixed Carbon: 96% min
S 3%max, V 500ppm max
Ash: 8% max Tensile strength: 29 Mpa min Porosity: 23% max S. Resistance: 50-70 uom max Damage coefficient: 1.5 max
Size: L 1500-1800mm, W 550-755mm, H 580-650mm
Popular Sizes for domestic and international markets are
1080x600x540mm，1080x620x540mm and 1450x660x540mm.
Technical Data shown below:
Type |
Ash Content% |
The Resistivity |
Thermal Expansion Rate% |
CO₂Response Rate |
Compressive Strength Mpa |
Bulk Density |
True Density |
μΩ.m |
mg²/(cm²-h) |
g/cm³ |
g/cm³ |
||||
≯ ≮ | |||||||
TY-1 |
0.5 |
55 |
0.45 |
45 |
32 |
1.5 |
2 |
TY-2 |
0.8 |
60 |
0.5 |
50 |
30 |
1.5 |
2 |
TY-3 |
1 |
65 |
0.55 |
55 |
29 |
1.48 |
2 |
